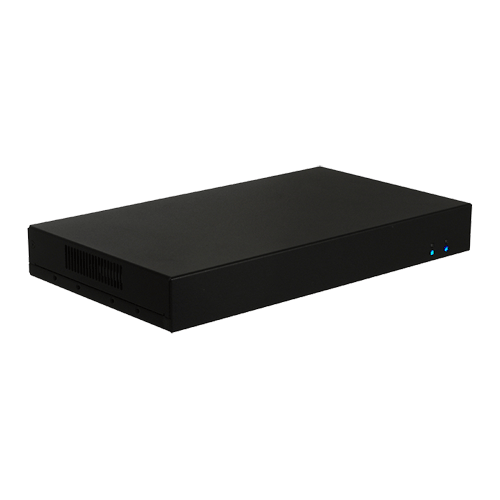

AOPEN DES-4100 Digital Media Engine ***Obsolete***

(Product may vary from image. Rely only on description for purchasing decisions.)

The Digital Engine DES4100 is based on the AMD embedded G-Series SoC (system on chip) platform. This slim sized (35mm) media player delivers high graphic performance and is able to fulfill needs for low-power consumption with the AMD embedded GX-420CA Quad-Core processor. Moreover the DES4100 comes with an optional extension board feature for extra input and output capabilities.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Slim line design
  • Powers up to two independent full HD displays
  • Supports DASH which allows you to remotely control your hardware
  • Advanced scheduling is possible due to Super RTC Watchdog timer is included
  • Monitor your device and set up warning levels for each specific thermal and voltage variable
NameSizeDownload
Datasheet602kb des4100-gx420ca_datasheet.pdf

Products available to purchase

 SKUVendorName
CAB-AOHDMi1.5 AOPEN1.5m HDMI Cable
CAB-AOHDMI-VGA AOPENCable Converter HDMI to VGA
CAB-AOPRJ48D9M GOODSONCable RJ48 (AOpen RS232) to Printer DB9M

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
AMD embedded G Series, SOC Quad Core APU GX-420CA (2.0 GHz) TDP 25W
Graphics Chipset: AMD Radeon HD 8400E for GX-420CA
Memory
Dual Channel
Type: DDR3L SO-DIMM x 2
Speed Grade: 1333/1600Mbps
Standard 4GB, Max memory 16GB (based on OS support)
Storage device(s)
2.5" SATA II 2TB HDD (standard in Australia)
SDD optional
Expansion Slot Mini PCI-e
I/O Ports
Rear Panel IO
DC Jack x 1
DVI Port N/A
VGA Port N/A
HDMI Port x 2
Display Port N/A
USB 2.0 Port x 2
USB 3.0 Port x 2
RJ-45 LAN Jack x 1 (10/100/1000Mbps)
Legacy RS232 Serial Port (COM Port) x 1
Audio Set Line-In N/A
Audio Set Line-Out x 1
Audio Set Mic-In x 1
Upgrade for Antenna Port x 2
Kensington Lock Hole : x 1
Onboard I/O:
USB x 2
7+6P SATA Connector
3G SIM Socket
Optional Expension Board: RS232/RS232/RS485+USB2.0 x 2 (MOQ Applies)
or Industrial Control & Automation Isolated GPIO x 8 Channels (MOQ Applies)
Audio
Realtek HD Audio Codec ALC269Q Channel: Stereo
Internal Speaker x 2
Operating Environment
0 ~ +50 °C,
95% RH non condensing @ 50 °C,
Storage Environment
-30 ~ +65 °C
95% RH non Condensing @ 50 °C,
Power Supply
19V DC Power Adapter (65W)
AC 100V-240V
External Dimensions (WxDxH)
273mm x 155mm x 35m
Weight
1.275 Kg
EMC/Safety Standards
FCC/CE/UL/CB
