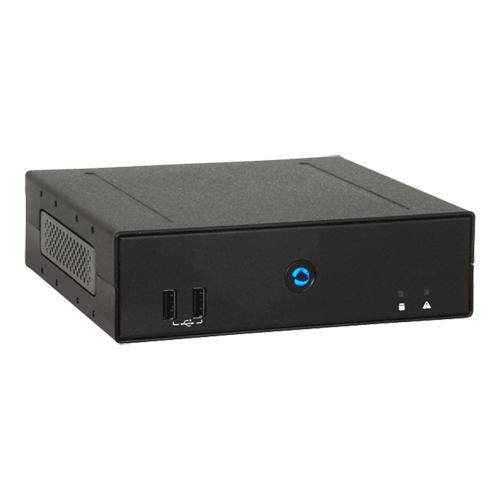

AOPEN DE-7200 Digital Media Engine

(Product may vary from image. Rely only on description for purchasing decisions.)

The new DE7200 media player is the most powerful Digital Engine, and has been designed for customers who require the utmost in power, versatility and functionality. Backed by the 4th Generation Intel® Core™ Processor Family, the DE7200 is capable of running the most complex multimedia presentations and managing them across multiple screens. The DE7200 is quiet and efficient, while USB 3.0 and HDMI ports allow for fast high definition performance and expandable storage. The DE7200 is the first in a line of new products to come with an integrated dust filter to protect the critical circuits inside and an extended power switch for convenient management.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Support for Extended Desktop on all connected screens for up to three independent (Full HD) displays.
  • Flexible integration opportunities thanks to a unique small form factor
  • High performance support for Ultra HD resolution (4k*)
  • Power switch extension for remote control
  • Ultra reliable hardware with 24/7 operability
  • Energy efficient green computing
NameSizeDownload
Brochure253kb de7200-brochure.pdf

Products available to purchase

 SKUVendorName
AODE7200-8032 AOPENDE7200 Digital Eng i7 320G HDD 8G DDR3 no OS
CAB-AOHDMi1.5 AOPEN1.5m HDMI Cable
AOHDMI4SPLIT AOPEN4-Way HDMI Splitter
CAB-AODP-HDMI AOPENCable Converter DP to HDMI

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Socket: G3/rPGA946
Type: Supports 4th generation Intel® Core™ vPro™ i3, i5, i7 mobile processor TDP=47W
AOpen Thermal Module
Chipset: Intel® QM87 Chipset
Graphics Chipset: Intel HD Graphics 4600
Memory
Channels: Dual Channel
Type: DDRIII Low Voltage SO-DIMM x2
Speed Grade: 1333/1600Mbps
Max Memory: 16GB (depending on OS)
Storage device(s)
2.5" SATA II 320GB HDD
SDD optional
mSATA x1
Expansion Slot
mini Card Slot: Full size x1, Half Size x 1
I/O Ports
Front Panel IO
USB 2.0 Port x 2
Rear Panel IO
DC Jack x 1
HDMI Port: x2
Display Port: x1
USB 2.0 Port: x2 (combined with eSATA)
USB 3.0 Port: x2
eSATA x2
RJ45 LAN Jack: x1
Legacy RS232 Serial Port (COM Port): x1
Audio Line-Out: x1
Audio Mic-In: x1
Upgrade for Antenna Port x 2
Kensington Lock Hole x 1
Audio
Realtek HD Audio Codec ALC269Q Channel: Stereo 5.1 CH with HDMI
Operating Environment
0 ~ +50 °C,
95% RH non condensing @ 50 °C,
Storage Environment
-30 ~ +60 °C, 90% RH non Condensing @ 50 °C,
Power Supply
20V DC Power Adapter (90W) 4.5A
AC 100V-240V
External Dimensions (WxDxH)
166mm x 157mm x 48mm
Weight
1.12 Kg
EMC/Safety Standards
BSMI/CB/ CE/FCC/UL
