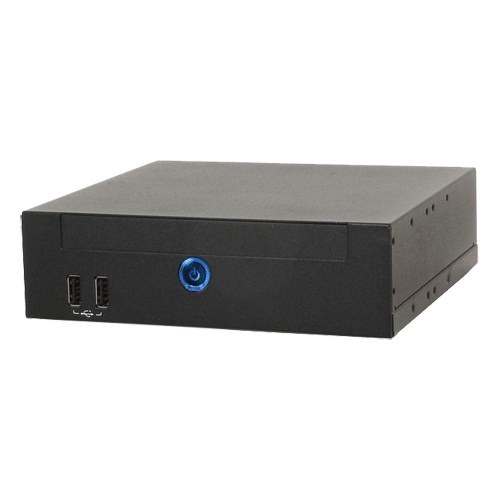

AOPEN DE-67HAI Digital Media Engine Series ***Obsolete***

(Product may vary from image. Rely only on description for purchasing decisions.)

With the growing demand for dynamic interactive apps such as video conferencing, social media, interactive menuboards, kiosks, HD movies and many more powerful, content heavy applications, the DE67-HA(I) allows you to stay ahead of the curve. Aimed at those with the most demanding multimedia and computational workloads, the DE67-HAI provides stunning performance and razor sharp graphics to intensify the computing experience.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Digital Media Engine
  • Support Intel® AMT8.0 processor
  • Supports above and 3rd generation Intel® Core™ i3, i5, i7 mobile processor
  • 320GB HDD
  • 4 GB DDR3 RAM expandable to 16GB
  • 1 x Display Port & 1 x DVI-I/VGA Port with Converter
  • 1 x RS232 Port, 2 x USB 2.0 and 3 x USB 3.0
  • mSATA for expansion options
  • Optional SSD drives available
NameSizeDownload
Datasheet70kb de67hai_datasheet.pdf

Products available to purchase

 SKUVendorName
CAB-AODP-HDMI AOPENCable Converter DP to HDMI
AD-AO65 AOPENPower Supply 19V 65W for DE35

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Socket: RPGA988B
Type: 3rd Generation Intel Core i5 Mobile Processor
AOpen Thermal Module
Chipset: Intel QM67 Chipset
Graphics Chipset: HD 4000
Memory
Channel: Dual Channel
Type: DDRIII SO-DIMM x 2
Speed Grade: 1066Mbps (B0 version)/ 1333Mbps (C0 version)
Standard 4GB, Max memory 16G
Storage device(s)
2.5" SATA II 320GB HDD
SDD optional
Slim ODD x 1
mSATA x1
Expansion Slot
mini Card Slot: Full size x1, Half Size x 1
I/O Ports
Front Panel IO
USB 2.0 Port x 2
Rear Panel IO
DC Jack x 1
DVI-I/VGA Port x 1 (VGA via converter supplied)
Display Port x 1
USB 3.0 Port x 2
RJ-45 LAN Jack x 1 (10/100/1000Mbps WOL/PXE)
Legacy RS232 Serial Port (COM Port) x 1
Audio Set Line-In : N/A
Audio Set Line-Out : x 1
Audio Set Mic-In : x 1
Upgrade for Antenna Port x 2
Kensington Lock Hole x 1
Audio
Realtek HD Audio Codec ALC662 Channel: Stereo / 5.1 CH with HDMI
Operating Environment
0 ~ +50 °C,
95% RH non condensing @ 40 °C,
Storage Environment
-30 ~ +60 °C, 90% RH non Condensing @ 40 °C,
Power Supply
20V DC Power Adapter (90W) 4.5A
AC 100V-240V
External Dimensions (WxDxH)
166mm x 157mm x 48mm
Weight
1.03 Kg
EMC/Safety Standards
FCC/CE/UL/CB
