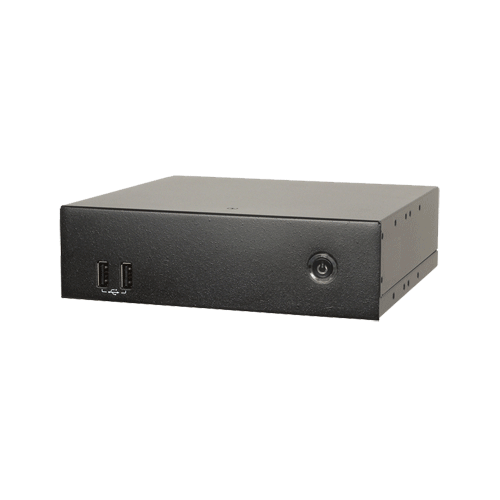

AOPEN DE-6340 Digital Media Engine

(Product may vary from image. Rely only on description for purchasing decisions.)

Compact and powerful device, the DE6340 is designed to power visually stunning multi-screen UHD video walls, for up to four full HD screens. Weather powering a 2 x 2 or a 4 x1 video wall or powering several screens in different locations, the DE6340 is ultra reliable, highly secure, and ideal for retail stores, hotels, airports and financial institutions.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Digital Media Engine
  • AMD V1000 excellent CPU performance
  • 4 x HDMI 2.0 output for Ultra HD (4K2K) resolution and HEVC/H.265 & VP9 high-definition video playback supported
  • Ultra reliable commercial device with 24/7 operability
  • Energy efficient, reducing energy cost and environmental footprint
  • Device monitoring and management with AiCU Intelligent Control (Option)
  • 64GB M.2 Sata SSD
  • 4 GB DDR4 RAM expandable to 32GB
  • 4 x HDMI Port for 2x2, 4x1 Video wall output
  • 1 x RS232 Port
NameSizeDownload
Brochure296kb de6340_brochure.pdf

Products available to purchase

 SKUVendorName
AODE6340-4064S AOPENDE6340 Digital Engine 4GB 64 GB SSD no OS

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Chipset: AMD Embedded Ryzen V1000 Soc 3.35-3.8 GHz, Quad Core GFX9
Graphics Chipset: AMD Radeon Vega 11 graphics
Watchdog Timer: 1~255 sec/min
Memory
Dual Channel
Type: DDR4 SO-DIMM x 2
Speed Grade: 3200Mbps
Standard 4GB, Max memory 32G (based on OS support)
Storage device(s)
Standard 1 x 64 GB SSD M.2 short version
Expansion Slot
mini Card Slot: Full size x1 (support mSATA)
I/O Ports
Front Panel IO
USB 2.0 Port x 2
Rear Panel IO
DC Jack x 1
Extended Power Switch connector
DVI Port N/A
VGA Port N/A
HDMI 2.0 Port x 4
Display Port N/A
USB 3.0 Port x 2
RJ-45 LAN Jack x 1 (10/100/100Mbps)
Legacy RS232 Serial Port (COM Port) : x 1
Audio Set Line-In : N/A
Audio Set Line-Out : x 1
Audio Set Mic-In : x 1
Upgrade for Antenna Port : x 2
Audio
Realtek HD Audio Codec ALC269Q Channel: Stereo
Operating Environment
0 ~ +50 °C,
95% RH non condensing
Storage Environment
-30 ~ +60 °C
95% RH non Condensing
Power Supply
19V DC Power Adapter (90W) 4.74A
AC 100V-240V
External Dimensions (WxDxH)
166mm x 157mm x 48mm
Weight
2.0 Kg
EMC/Safety Standards
FCC/CE/UL/CB
