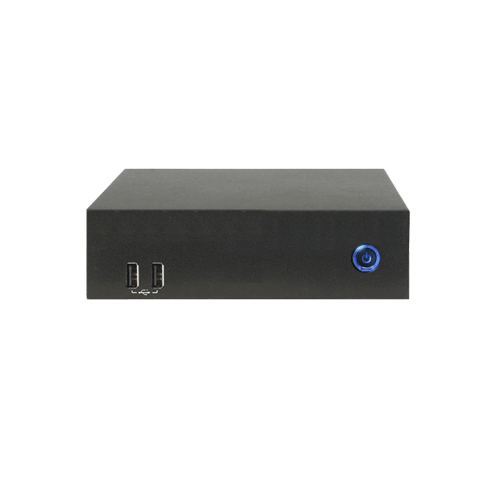

AOPEN DE-6100 Digital Media Engine

(Product may vary from image. Rely only on description for purchasing decisions.)

The DE6100 is for those that demand the most advanced multimedia and computational workloads. The small and powerful system enables multi-display capabilities for cuttingedge digital signage applications. The versatile design of the DE6100 offers support for both Spanning (stretched desktop) and Extended Desktop on all connected screens for up to three independent (Full HD) displays.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Digital Media Engine
  • Triple your vision
  • Space saving compact design
  • DisplayPort and HDMI for triple video output
  • Full size Mini card slots for expansion options
  • USB 3.0 ports for high speed data transfer
  • Supports spanning and extended desktop over all 3 outputs
  • Includes ATI discrete HD 7xxx graphics
NameSizeDownload
Datasheet230kb de6100_brochure.pdf

Products available to purchase

 SKUVendorName
AODE6100-4032 AOPENDE6100 Digital Engine 4GB 320G HDD No OS
AODE6100-4128SV AOPENDE6100 Digital Engine 4GB 120G SSD WIN7
AODE6100-4032V AOPENDE6100 Digital Engine with WIN7
CAB-AOHDMi1.5 AOPEN1.5m HDMI Cable
AOHDMI4SPLIT AOPEN4-Way HDMI Splitter
AODEDCOVKIT AOPENDE Digital Media Player Dust Cover Kit

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Socket: Socket FS1r2
Type: Support AMD Embedded R-series APU Dual/Quad core mobile processor TDP<35W
AOpen Thermal Module
Chipset: FCH AMD A70M chipset
Graphics Chipset: AMD Radeon HD 7660G(build in APU R-464L)
Memory
Dual Channel
Type: DDRIII SO-DIMM x 2
Speed Grade: 1333/1600Mbps
Standard 4GB, Max memory 16GB (based on OS support)
Storage device(s)
2.5" SATA II 320GB HDD
SDD optional
mSATA x 1
Expansion Slot
mini Card Slot: Full size x1 (support mSATA)
I/O Ports
Front Panel IO
USB 2.0 Port x 2
Rear Panel IO
DC Jack x 1
DVI Port N/A
VGA Port N/A
HDMI Port x 4
Display Port x1
USB 2.0 Port x 2
USB 3.0 Port x 2
RJ-45 LAN Jack x 1 (10/100/1000Mbps)
Legacy RS232 Serial Port (COM Port) x 1
Audio Set Line-In N/A
Audio Set Line-Out x 1
Audio Set Mic-In x 1
Upgrade for Antenna Port x 2
Kensington Lock Hole : x 1
Audio
Realtek HD Audio Codec ALC662 Channel: Stereo
Operating Environment
0 ~ +50 °C,
95% RH non condensing @ 50 °C,
Storage Environment
-30 ~ +60 °C
95% RH non Condensing @ 50 °C,
Power Supply
19V DC Power Adapter (90W) 4.74A
AC 100V-240V
External Dimensions (WxDxH)
166mm x 157mm x 48mm
Weight
1.12 Kg
EMC/Safety Standards
FCC/CE/UL/CB
