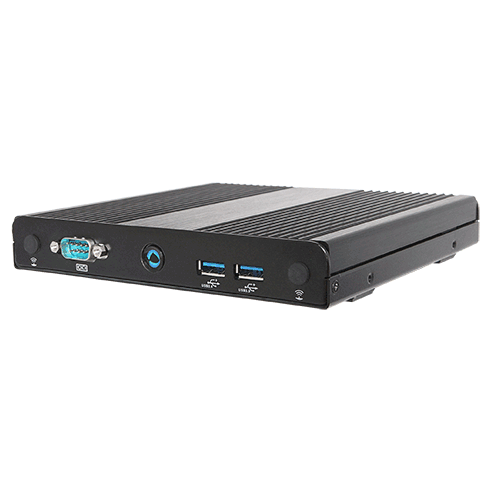

AOPEN DE-3450 Digital Media Engine

(Product may vary from image. Rely only on description for purchasing decisions.)

A value range device based on the reliable Intel® Quad Core Apollo Lake® Processor J3455, which is capable of running UHD playback. The DE3450 supports 4K/2K resolution displays and HEVC/H.265 10 bit high-defnition video playback. The solid-state disk and fanless design of this player ensure a fist rate of performance in any challenging environment.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Including the AOPEN intelligent Control Unit (AiCU)
  • Supports Ultra HD (4K@60p) resolution and HEVC/H.265 & VP9 high-defnition video playback
  • Dual Gig LAN and Dual Wifi antenna makes it a perfect solution for IoT gateway applications.
  • Two HDMI ports (1x 2.0)
  • Support TPM2.0, the use of validated encryption key brings extra security to your device
  • Watchdog timer for device monitoring and control
NameSizeDownload
Brochure267kb de3450_brochure.pdf

Products available to purchase

 SKUVendorName
AODE3450-4064S AOPENDE3450 J3455 CPU 4G 64G SSD no OS
CAB-AOHDMi1.5 AOPEN1.5m HDMI Cable
CAB-AOHDMI-VGA AOPENCable Converter HDMI to VGA
CAB-AOPRJ48D9M GOODSONCable RJ48 (AOpen RS232) to Printer DB9M

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Socket: CPU on Board
Type: Support Intel J3455 Quad core TDP<10W
Chipset: CPU Build in
Graphics Chipset: Intel HD Graphics 500
Memory
Dual Channel
Type: DDR3L SO-DIMM x 2
Speed Grade: 1866Mbps
Standard 4GB, Max memory 8G
Storage device(s)
M.2 64GB SSD
Expansion Slot: M.2 2242 x 1 (key B for SSD) & 1 x M.2 2230 x 1 (key E for Wifi)
I/O Ports
Front Panel IO
USB 3.0 Port x 2
RS232 DB9 x 1
Rear Panel IO
DC Jack x 1
DVI Port N/A
VGA Port N/A
HDMI Port x 2 (HDMI2.0 x 1 / HDM1.4b x 1)
Display Port N/A
USB 3.0 Port x 2
eSATA port N/A
RJ-45 LAN Jack x 2 (10/100/100Mbps)
Audio Set Line-In : N/A
Audio Set Line-Out : x 1
Audio Set Mic-In : x 1
Upgrade for Antenna Port : yes
Kensington Lock Hole : x 1
Extended Power SW x 1
Audio
Realtek HD Audio ALC269Q
Channel: Stereo
Operating Environment
0 ~ +45 °C,
95% RH non condensing @ 45 °C,
Storage Environment
-20 ~ +60 °C
95% RH non Condensing @ 45 °C,
Power Supply
19V DC Power Adapter (40W) 2.1A
AC 100V-240V
External Dimensions (WxDxH)
166mm x 158mm x 25mm
Weight
0.8 Kg
EMC/Safety Standards
FCC/CE/UL/CB
