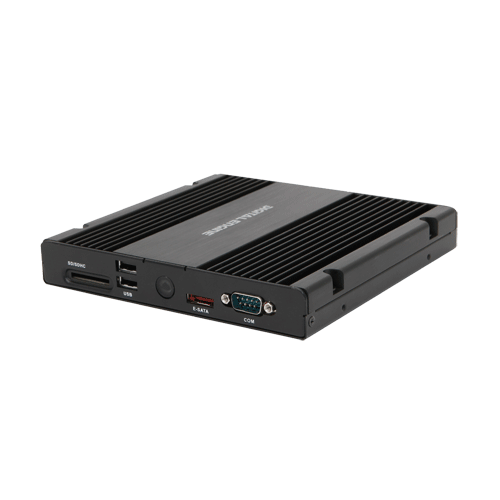

AOPEN DE-3250 Digital Media Engine

(Product may vary from image. Rely only on description for purchasing decisions.)

The DE3250 is a robust media player designed to cope with rugged, tough environments or moving vehicles. Its ultra-thin structure allows you to integrate the Digital Engine DE3250 seamlessly into any space. The solid-state disk and fanless design of the DE3250 ensures a first rate performance in any challenging situation.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • An ultra-thin (25 mm) form factor that allows flexible integration opportunities
  • Handles vibrations, shocks and fluctuating tempratures with ease, due to its fanless design and solid-state disk (SSD)
  • The DE3250 is built with the Intel® Celeron® quadcore Processor N2930, based on a new low-power, high-performance microarchitecture.
  • 64GB SSD
  • 4 GB DDR3L RAM expandable to 8GB
  • 2x HDMI Ports
  • 1 x RS232 Port
NameSizeDownload
Brochure336kb de3250_brochure.pdf

Products available to purchase

 SKUVendorName
AODE3250-4064S AOPENDE3250 N2930 CPU 4G 64G SSD no OS
AODE3250-4064SV AOPENDE3250 N2930 CPU 4G 64G SSD WIN7Pro
CAB-AOHDMi1.5 AOPEN1.5m HDMI Cable
CAB-AOHDMI-VGA AOPENCable Converter HDMI to VGA
CAB-AOPRJ48D9M GOODSONCable RJ48 (AOpen RS232) to Printer DB9M

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Type: Intel Celeron N2930 Quad Core CPU 1.86GHz (Turbo to 2.16GHz)
Graphics: Integrated Graphics (313Mhz Base, 854Mhz Turbo)
Memory
Dual Channel
Type: DDRIIIL 1.35V SO-DIMM x 2
Speed Grade: 1333Mbps
Standard 4GB, Max memory 8GB (based on OS support)
Storage device(s)
1x mSATA Interface for SSD (Standard 64GB)
I/O Ports
Front Panel IO
USB 2.0 Port x 2
COM Port (RJ48) x1
SD Card Slot x1
eSata Port x1

Rear Panel IO
HD Audio In x1
HD Audio Out x1
HDMI Port x2
Gigabit Ethernet x2
DC 19/12V Connector
Antenna Jack (Optional)
Audio
Realtek HD Audio Codec ALC662
OS Support
Windows 7/8/8.1
Operating Environment
0 ~ +40 °C,
90% RH non condensing @ 40 °C,
Storage Environment
-20 ~ +60 °C
90% RH non Condensing @ 40 °C,
Power Supply
Output: 19V DC Power Adapter (65W) 3.42A
Input: AC 100V-240V 1.5A @ 50-60Hz
External Dimensions (WxDxH)
166 x 158 x 25 mm
Weight
1.12 Kg
EMC/Safety Standards
UL/CB/CE/FCC/ErP/RCM
