ZF Electronics Energy Harvesting Wireless Receiver Range

(Product may vary from image. Rely only on description for purchasing decisions.)

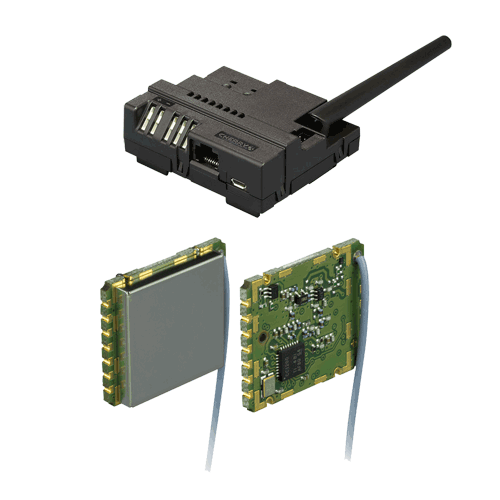

Energy Harvesting receivers are available as either a packaged module, or as a “RF stamp” with wire antenna without plastic housing. The receiver module has multiple output options (i.e. RS232 TTL) and is suitable for wall-mounting. Flexible pairing allows the operation of several receivers with one switch and vice-versa, and the “Unique ID” assigned to each switch assists in avoiding interference when using multiple RF switches. Both receivers are compatible with ZF rocker and snap action switch products.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
  • RF Receiver for wireless Energy harvesting switches
  • Frequency bands: 868.3 or 915.0 MHz
  • Temperature range: -40 to +85 °C
  • Sensitivity: typ. -98 dBm
  • Receiver class: Class 2
  • Available in plastic housing or without
  • With housing version:
  • o Supply voltage: 5 VDC stabilised
  • o Supply voltage: 7 V to 24 VDC non-stabilised
  • o Supply voltage: 5 V USB
  • o Output Interfaces: 48 VAC or 230 VAC relay
  • o Output Interfaces: RS232 TTL, RS232 or RS485 bus
  • o Output Interfaces: Digital interface or SPI
  • o Output Interfaces: USB 2.0
  • o Antenna: Wire antenna with plastic sleeve
  • o Antenna: 50 Ohm output
  • "RF Stamp” version:
  • o Supply voltage: 5 V or 3.3 VDC
  • o Output Interfaces: 1x UART
  • o Output Interfaces: 4x GPIO
  • o Antenna: Wire antenna
  • o Antenna: 50 Ohm output
NameSizeDownload
Datasheet for RF Receiver290kb Energy_Harvesting_Receiver_datasheet.pdf
RF Receiver with Housing Technical Specifications934kb TS-AFZE-01_v01.pdf
RF Stamp Receiver (IFM) Technical Specifications703kb TS-AFZE-02_v03.pdf
RF Receiver with Housing Operation Manual315kb BA_Receiver_EN_V2_1.pdf
Installation Guide Lines255kb InstallationEnergyHarvestingSwitchVers3_US.pdf
