ZF Electronics DG-Series Snap Action Subminiature Switch Series

(Product may vary from image. Rely only on description for purchasing decisions.)

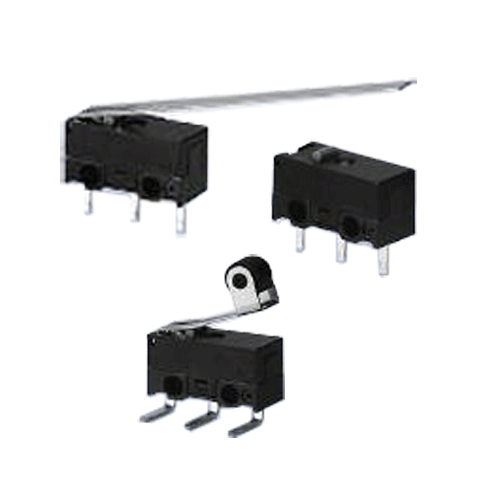

Cherry DG-Series Snap Action Sub miniature Switches

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
  • Ultra compact size (12.8 x 5.8 x 6.5mm)
  • Insert molding terminals: PC board mounting
  • Model Dependant 50mA to 3A at 30V
  • Available as button only or with Lever or lever with roller actuator
NameSizeDownload
Datasheet910kb dg_series_datasheet.pdf

Products available to purchase

 SKUVendorName
CSDG43-C3LC ZF ElectronicsDG-Series 1A 30V O C Lght PCB L Lever 25.7mm
CSDG13-B1LC ZF ElectronicsDG-Series 2A 30V O C PCB Str Lever 25.7mm
CSDG13-B1RA ZF ElectronicsDG-Series 2A 30V O C PCB Str Roller 1.4mm
CSDG23-C3LA ZF ElectronicsDG-Series 50mA 30V O C Lght PCB L Lever 4.35mm
CSDG23-B2LA ZF ElectronicsDG-Series 50mA 30V O C PCB R Lever 4.35mm
CSDG23-B1LC ZF ElectronicsDG-Series 50mA 30V O C PCB Str Lever 25.7mm
CSDG13-B1LA ZF ElectronicsDG-Series 50mA 30V O C PCB Str Lever 4.35mm
CSDG23-B1LA ZF ElectronicsDG-Series 50mA 30V O C PCB Str Lever 4.35mm
