ZF Electronics DB-Series Snap Action Subminiature Switch Series

(Product may vary from image. Rely only on description for purchasing decisions.)

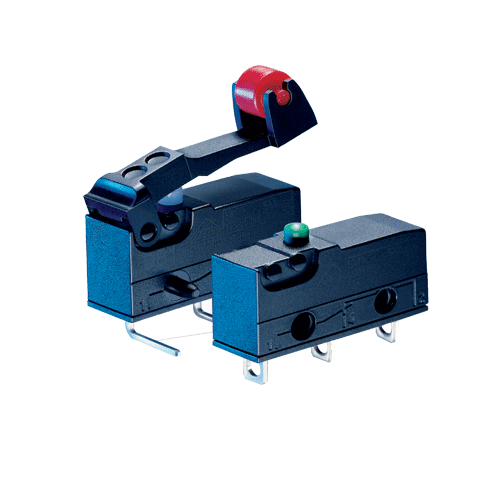

Cherry high precision Snap Action subminiature switch with high repeat accuracy

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
  • Precision subminiature switch with high repeat accuracy
  • Switching Current 0.1 A to 10 A AC (model dependant)
  • Wide variety of auxiliary actuators available
  • Actuators can also be retrofitted
  • High contact stability due to specific contact materials
  • Ambient temperature -40 to max. +120 °C
  • Mechanical life up to 15 x 106 actuations
  • Approved according to EN 61058 and UL 1054
  • Degree of protection IP50
NameSizeDownload
Datasheet536kb cherry_db_subminiature_switch_datasheet.pdf

Products available to purchase

 SKUVendorName
CSDB3C-C1LB ZF ElectronicsDB-Series 0.1A 250VAC SPDT PCB Lever 4.8mm
CSDB3A-D3AA ZF ElectronicsDB-Series 0.1A 250VAC SPDT PCB LL Sph Hd
CSDB3C-D3AA ZF ElectronicsDB-Series 0.1A 250VAC SPDT PCB LL Sph Hd
CSDB3C-D2MC ZF ElectronicsDB-Series 0.1A 250VAC SPDT PCB RL Med Lever HR
CSDB3C-D2AA ZF ElectronicsDB-Series 0.1A 250VAC SPDT PCB RL Sph Hd
CSDB3C-D1RC ZF ElectronicsDB-Series 0.1A 250VAC SPDT PCB Str2 Roller 4.7mm
CSDB3C-D1AA ZF ElectronicsDB-Series 0.1A 250VAC SPDT PCB Str2 Sph Hd
CSDB3C-C1AA ZF ElectronicsDB-Series 0.1A 250VAC SPDT PCB Str5 Sph Hd
CSDB3C-B1RC ZF ElectronicsDB-Series 0.1A 250VAC SPDT QC Str Roller 4.7mm
CSDB3C-B1TC ZF ElectronicsDB-Series 0.1A 250VAC SPDT QC Str Roller 7.1mm
CSDB3C-B1AA ZF ElectronicsDB-Series 0.1A 250VAC SPDT QC Str Sph Hd
CSDB3C-A1AA ZF ElectronicsDB-Series 0.1A 250VAC SPDT Solder Sph Hd
CSDB3A-B1AA ZF ElectronicsDB-Series 0.1A 250VAC SPNO QC Str Sph Hd
CSDB2C-D1SB ZF ElectronicsDB-Series 10A 250VAC SPDT PCB Str2 Sim Roller
CSDB2C-D1AA ZF ElectronicsDB-Series 10A 250VAC SPDT PCB Str2 Sph Hd
CSDB2C-C1LC ZF ElectronicsDB-Series 10A 250VAC SPDT PCB Str5 Lever 7mm
CSDB2C-C1AA ZF ElectronicsDB-Series 10A 250VAC SPDT PCB Str5 Sph Hd
CSDB2C-B1AA ZF ElectronicsDB-Series 10A 250VAC SPDT QC Str Sph Hd
CSDB2C-A1AA ZF ElectronicsDB-Series 10A 250VAC SPDT Solder Sph Hd
CSDB1C-D5AA ZF ElectronicsDB-Series 5A 250VAC SPDT PCB L Sph Hd
CSDB1C-D4AA ZF ElectronicsDB-Series 5A 250VAC SPDT PCB R Sph Hd
CSDB1C-D2LC ZF ElectronicsDB-Series 5A 250VAC SPDT PCB RL Lever 7mm
CSDB1C-D2AA ZF ElectronicsDB-Series 5A 250VAC SPDT PCB RL Sph Hd
CSDB1C-D1AA ZF ElectronicsDB-Series 5A 250VAC SPDT PCB Str2 Sph Hd
CSDB1C-C1LB ZF ElectronicsDB-Series 5A 250VAC SPDT PCB Str5 Lever 4.8mm
CSDB1C-C1AA ZF ElectronicsDB-Series 5A 250VAC SPDT PCB Str5 Sph Hd
CSDB1C-B1LB ZF ElectronicsDB-Series 5A 250VAC SPDT QC Str Lever 4.8mm
CSDB1C-B1RC ZF ElectronicsDB-Series 5A 250VAC SPDT QC Str Roller 4.7mm
CSDB1C-B1AA ZF ElectronicsDB-Series 5A 250VAC SPDT QC Str Sph Hd
CSDB1C-A1LB ZF ElectronicsDB-Series 5A 250VAC SPDT Solder Lever 4.8mm
CSDB1C-A1AA ZF ElectronicsDB-Series 5A 250VAC SPDT Solder Sph Hd
CSDB1A-A1AA ZF ElectronicsDB-Series 5A 250VAC SPNO Solder Sph Hd
