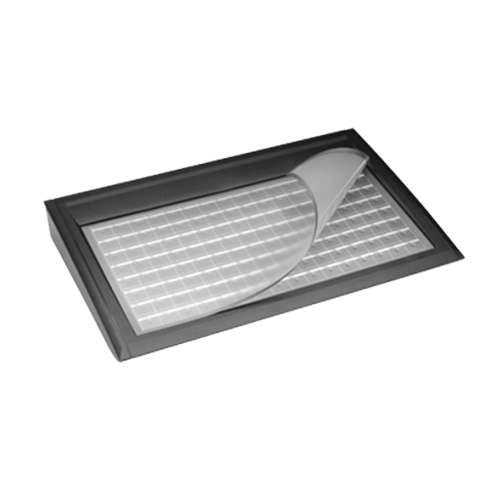

TIPRO Free Range TM-KBX-128A Membrane Keyboard Module

(Product may vary from image. Rely only on description for purchasing decisions.)

Multifunctional, fully programmable modular keyboard with 16x8 Matrix Key layout. Spil proof Membrane style Keyboard module for professional commercial use, e.g. in Point-of-Service (POS).

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Programmable keyboard
  • 128 Key Matrix membrane Keyboard
  • mechanical keys (Omron B3F) with short travel and high force feedback
  • Available with PS2/RS232 or USB Controller or without controller to connect to other Free range keyboard with a controller.
  • Programmable key contents/codes (e.g. Ctrl+Shift+F5) emulating standard keyboard entry
  • Up to four different contents (layers) per key
  • All key contents permanently stored in internal non-volatile memory of the Tipro controller
  • Available in Black or other range of colours by special order only
NameSizeDownload
No Downloads

Products available to purchase

 SKUVendorName
TPF-KBX128AB-U TIPROFree Range 128 Key Membrane Keyb USB Black
TPF-KBX128AB TIPROFree Range 128 Key Membrane Keyboard module
TPF-KBX128AB-KR TIPROFree Range Membrane Keyb PS2 RS232 Black

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Keyboards
Key technology: Omron B3F
Service life, standard key: > 300K key operations
Number of Keys: 128 Keys
Membrane Protected Keyboard
I/O Devices (Intergrated)
Optional Module Available
Interfaces
Optional Modules:
USB 2.0
PS2 & RS232
Cable Lenght
approx. 1.85 m if Interface module fitted
Current Consumption
Typical 15mA for module without interface
Typical 80mA (one keyboard module with integrated USB controller)
Plus typical 15mA for any added modules
Operating Environment
0°C to 40°C
Relative humidity range: 20% to 80% (non-condensing)
Storage Environment
-10°C to 50°C
External Dimensions (WxDxH)
approx. 329 x 222 x 42 mm
Weight
Approx 1.2Kg
Reliability
Keyswitch Lifetime: 300K operations
Product Compliance
C-tick, CE, RoHs
