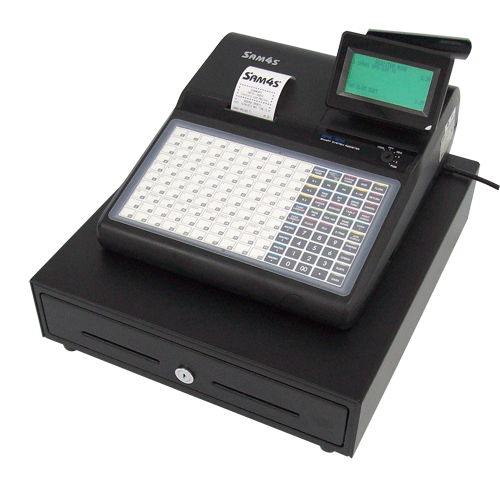

SAM4S SPS-320 Multi line Display System Cash Register

(Product may vary from image. Rely only on description for purchasing decisions.)

The SPS-320 is a solution for a wide range of Hospitality environments. It has a multiline line LCD Alpha/Numeric display with 7 different colours backlight and single drop in paper loading thermal printer and is well suited for the small to medium convenience store, fruit markets, restaurants and various retail operations.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • High featured 1 Station Cash Register
  • High Speed (23 LPS) 1 Station Direct Thermal Printer with Auto Cutter.
  • Drop in Paper loading
  • 8 Line 32 Character LCD Operator Display
  • Link up to 16 ECR's via IRC
  • 3 x RS232 + 1 x USB. RS232 for Scanner, Scale, PC communication, Kitchen/Bar Printer or Journal Surveillance output, the 4th port is USB Virtual COM port for PC Communication only.
  • Up to 20000 PLU's
  • 14 Digit PLU/Barcode Number Capable
  • Check Tracking for up to 200 Accounts for Table Management
  • 15 Window Lookup Functions
  • Up to 5 Sales Price per PLU
  • Eat In/Takeaway/Drive Thru Function
  • Graphic Logo Print
  • Also available with raised keyboard (Special Order SPS325)
  • Electronic Journal
NameSizeDownload
Brochure384kb sps3x0_brochure.pdf
USB Virtual Com port driver for ECR port 413kb SAM4S_ECR_USB_VCOM_driver.zip
SPS320 Standard Keyboard overlay108kb SPS320StandardLayoutSC.doc
SPS320 Standard Keyboard overlay (Inverted Function key colour)111kb SPS320StandardLayoutIC.doc
Programming Keyboard Overlay109kb SPS300QWERTYLayout.doc
SPS3xx User Manual2,939kb SPS-300_AU_User_Manual.pdf
PC Utility for SPS3xx FLASHROM Version 01.015 and later4,964kb SPS300_PC_Utility_v01_008.zip
PC Utility for SPS3xx FLASHROM Version 01.011- 01.0144,734kb SPS300_PC_Utility_v01_007.zip

Products available to purchase

SKUVendorName
SPS320 SAM4SSPS-320 Single Station System Cash Register
JK73-20225A SAM4Skeyboard wet cover Flat (150) ER9xx SPS3xx
JK73-20227A SAM4SKeyboard wet cover Raised (98) ER9xx SPS3xx
CAB-E101PD2 GOODSONCable PC SPS1000 2000 530 320 ER9xx to PD2
CAB-PR9F25M GOODSONCable RS232 DB9F to Printer
CAB-E101PC9 GOODSONCable SPS1000-PC DB9 2m
CAB-USB2AA2 GOODSONUSB 2A to USB 2A Cable 1.8m
T5757 GOODSONThermal 57x57 Paper Rolls Bx50
T5770 GOODSONThermal 57 X 70 Paper Rolls Bx50

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printer
1 Station Direct Thermal Type with Auto Cutter
Printing Speed (Max.)
up to 22 Lines/sec
Paper Width
57 mm +/- 0.5 mm
Paper Roll Diameter
Max Ø 83.0 mm
Paper Supply Method
Easy Paper Loading, Drop in and Print
Keyboards
150 Key Flat Keyboard (Standard in Australia)
or 91 Key Raised Keyboard
Display
Operator:192 x 64 Graphic LCD with Blue Backlight
Customer: 9 Digit VFD
Drawer
Metal drawer 4B/8C with media Slots
I/O Ports
3 x RS232 (2 x DB9, 1 x RJ45)
1 x USB (virtual COM) this port can be changed to RS232 (RJ45) (optional)
1 x IRC batch mode (up to 100 M)
1 x SD Card slot (not compatible with SDHC)
Memory
ROM: 16 MBits Flash ROM
RAM: 16 MBits SRAM
Memory Protection
90 Days
Memory Configuration
up to 20000 PLU's
Max. 99 Clerks
Max. 99 Groups
Max. 200 Checks (Accounts/Tables)
Max. 230 Lines per record
Soft (Restaurant Style) or Hard (Service Station Style) Check (Account) System
Max. 5 Price Levels
Max. 99 Mix & Match
Max. 50000 lines Electronic Journal
(Maximums depends on Memory sharing choices)
OS Functions
32 Character per Line Logo Description (6 Lines Heading + 6 Lines Footing)
18 Character Description
14 Digit PLU Number
5 Modifier Levels
20 Macro keys (with Manager Control Option)
10 Tender Keys
Charge Posting Accounts
Max. 4 Currency Conversion
Inventory Item
Condiment Item
Table Management or Clerk Interrupt
Training Mode
9 Digit Clerk Password
Graphic Logo on the Receipt Heading and Footing
Maximum 230 Line Record per Transaction
Software Utilities
Programming Utility Software, ASCII converter for PC comm's
Virtual Com Port Driver for Windows (32/64-bit) and Ethernet comms module
Power Supply
AC 230V +/- 10%
Power Consumption
19W
EMC/Safety Standards
CE, FCC, UL, TUV, GS, C-tick
External Dimensions (WxDxH)
400 x 455 x 305 mm
Weight
12 Kg
