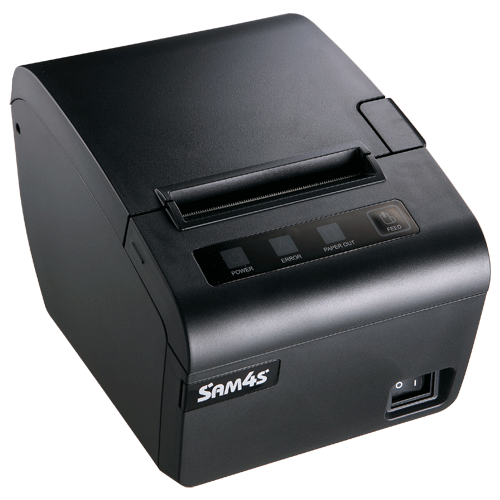

SAM4S ELLIX-30III Thermal POS Printer Series

(Product may vary from image. Rely only on description for purchasing decisions.)

The SAM4S ELLIX-30III is a fast low cost Thermal Docket Printer that is perfect for many retail and hospitality POS applications. It has standard USB interface with a choice of RS232, RS232/Ethernet, Wifi, Bluetooth interfaces.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Fast (up to 230 mm/sec) Direct Thermal Printing
  • Drop in Paper loading
  • Two Colour Printing (with Special Paper)
  • Barcode Printing, including QR code
  • Compatibility (ESC/POS & STAR)
  • NV Memory for Bit map Data Storage
  • Page mode printing
  • Auto cutter
  • Firmware downloadable with USB Stick, for easy in the field upgrades
  • Standard USB plus various other interfaces
  • Flexible paper widths. (80mm & 58mm)
  • External Power Supply
  • Available in Black or White (special Order)
NameSizeDownload
Brochure652kb ellix30III_40II_brochure.pdf
User Manual2,609kb ellix30III_ume_Rev01.pdf
Windows Driver37,079kb SAM4SPrinterDriverInstallerV3.0.0.exe
Utility Program11,201kb ELLIXSet Ver 2.008.zip

Products available to purchase

 SKUVendorName
ELLIX30IIIUERBL SAM4SELLIX-30III Thermal Printer USB RS232 Ethernet I F
ELLIX30IIIURBL SAM4SELLIX-30III Thermal Printer USB RS232 I F
EKB-EL30 SAM4SKitchen Buzzer Kit for Ellix 30 40
ESC-EL30 SAM4SSplash Cover for Ellix 30 & 40
T8080 GOODSONT8080 Premium Thermal rolls 80x80 (24 per Box)
T8080L48 GOODSONPremium Thermal rolls 80x80 48 rolls per box

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Line thermal dot print method
Printing Width
80 mm Paper 72 mm
58 mm Paper 54 mm
Dot Pitch
180 dpi
Printing Speed (Max.)
Max. 230 mm/sec
Number of Columns
80 mm Paper: Font A - 42 columns, Font B - 56 columns
58 mm Paper: Font A - 30 columns, Font B - 40 columns
Character Size
Font A:1.69 ×3.38 mm (12 x 24 Dots)
Font B:1.26 ×2.39 mm (9 x 17 Dots)
Character Table/Code Pages
95 Alphanumeric, 37 International,128*11 Graphic ,Korean
Bar-code Type
UPC-A, UPC-E, EAN8, EAN13, Code 39, Code 93, Code 128, ITF, CODABAR, PDF417, QR Code
Line Spacing
N/A
Paper feed method
Friction
Paper Type
Thermal Paper Roll
Paper Width
80+0/-1 mm, 58 mm+0/-1
Paper Roll Diameter
Max Ø 83.0mm
Paper Thickness
0.06 - 0.08mm
Paper Supply Method
Easy Paper Loading, Drop in and Print
Auto Cutter
Guillotine Type(Jamfree)
Indicators/Controls
Power Light, Error Light, Paper Out Light
Buzzer
Emulation
ESC/POS
Star
Print Buffer
64KB
NV Memory
8MB
Sensors
Paper end Sensor
Printer Cover open Sensor
Drawer Port
1 port (opens 2 drawers, special cable is needed to open 2 drawers)
External Device Port
N/A
Interfaces
USB & RS232,
USB & Parallel,
USB & RS232 & Ethernet
USB & WIFI
USB & Bluetooth
Driver available
Windows Driver
OPOS Driver
JPOS Driver (Linux & MAC)
Cups Driver (Linux & MAC)
Software Utilities
Utility Program
Power Supply
External AC Adapter
Rated input: AC 90 to 264 V, 50/60 Hz
Rated output: DC24 V, 2.5 A
Power Consumption
Max. 60W
External Dimensions (WxDxH)
144 × 195 × 137 mm
Weight
2.0 Kg
Operating Environment
5-45 °C, 30-80% RH
Storage Environment
-10-50 °C, 10-90% RH
Reliability
MCBF Mechanism: 70 mil Lines
Thermal Print head: 150Km
Auto Cutter: 2.0 Mil cuts
EMC/Safety Standards
C-Tick, RCM, FCC class A, TUV/GS, CE, CB, cTUVus
