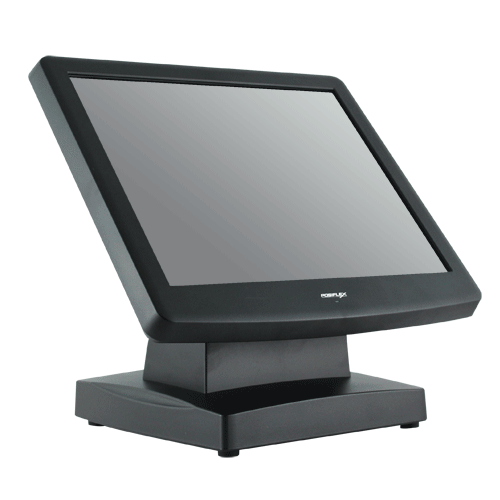

POSIFLEX TM-7117 Stand alone 17" Touch Monitor

(Product may vary from image. Rely only on description for purchasing decisions.)

The TM-7117 is a high quality 17" TFT Monitor with Resistive Touch Panel. USB Touch Controller for easy integration.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • 17” TFT LCD panel
  • LCD resolution up to 1280 x 1024
  • 5-wire Resistive touch panel
  • Easy tilt angle adjustment from 15o to 70
  • 2 x USB port support
  • Optional side attachment support (SD-466Z or KP-300W)
  • Optional VESA mounting kit (WB-6000V-B)
  • Dimension : 401 mm (H) x 385 mm (W) x 286 mm (D);
  • Weight : 6.82 kg
  • Colour : black
NameSizeDownload
User Manual1,190kb pftm7117_um.pdf

Products available to purchase

SKUVendorName
PFTM7117B-U POSIFLEX17" Touch Monitor USB Resistive Black
PFKP300B12-U POSIFLEX36 Key Keyboard /w MSR module for KS7215 Series
PFSD466B3FP-U POSIFLEXMSR 3 Track /w Fingerprint module for KS7215
PFWB6000VB POSIFLEXWall Mounting Bracket VESA for KS/TP

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Display
17” TFT LCD panel
Resolution
1280 x 1024
Viewing Area
377.920 (H) x 270.336 (V)
Contrast Ratio
500:1
Brightness
300 nits
Response time
6 ms (Raising) / 2 ms (Falling)
View Angle
80/80/80/80 (U/D/L/R)
Tilt Angle
15° to 70°
Touch Panel
5-wire Resistive
I/O Ports
Touch Interface: USB
2 Pass through USB port for Optional MSR/RFID & Rear display Attachments
Input Signal
VGA
Audio
N/A
OS Support
Windows XP Pro / POSReady 2009 / Windows 7 / POSReady 7 / WIN8.1 Embedded Retail Industry
Environmental Sealing
N/A
Operating Environment
0 ~ +40 °C, 20 ~ 90% RH
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V DC Power Adapter (50W)
External Dimensions (WxDxH)
401mm x 385mm x 286mm
Weight
6.82 Kg
EMC/Safety Standards
C-Tick, CE
