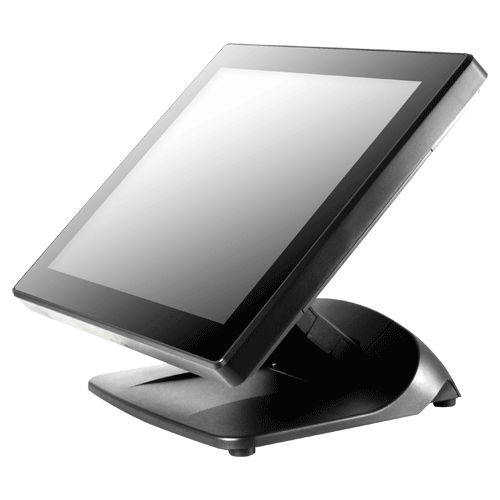

POSIFLEX TM-3115 15" LCD PCAP Touch Monitor Series

(Product may vary from image. Rely only on description for purchasing decisions.)

The TM-3115 offers 15" PCAP touch LCD Monitor. This stand-alone model supports side mounted accessories such as magnetic stripe card reader and optical finger print reader.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Slim bezel-free design
  • 15” TFT LCD panel
  • LCD resolution up to 1024 x 768
  • PCAP touch panel
  • Optional side attachment support for TM-3115 (SL-105)
  • VESA mounting support
  • Dimension : 300 mm (H) x 372 mm (W) x 258 mm (D);
  • Weight : 4.71 kg
  • Colour : black or white (special order)
NameSizeDownload
Brochure293kb tm-lm3114-3115-6210_brochure.pdf
User Manual543kb lm_tm30xx_31xx_um_web.pdf

Products available to purchase

SKUVendorName
PFTM3115CB-U POSIFLEX15" LCD PCAP Touch Monitor Black USB
PFTM3115NCB-U POSIFLEX15" LCD PCAP Touch Monitor USB Black no Stand
PFSL105B3-U POSIFLEXMSR attachment 3 Track for LM TM3015
PFSL305B3FP-U POSIFLEXSL-305 MSR with Fingerprint rdr for LM3xx

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Display
15" TFT LED Backlit LCD Display
Resolution
1024 x 768
Viewing Area
304.128mm (H) x 228.096mm (V)
Contrast Ratio
600:1
Brightness
250 nits
Response time
3 ms (Raising) / 5 ms (Falling)
View Angle
80/80/80/80 degree (U/D/L/R)
Tilt Angle
15° to 90°
Touch Panel
Bezel Free: Projected Capacitive Touch supporting 10pts multi-touch
I/O Ports
Touch Interface: USB
Pass through USB port for Optional MSR/RFID Attachments
Input Signal
VGA
Audio
N/A
OS Support
Windows XP Pro / POSReady 2009 / Windows 7 / POSReady 7 / WIN8.1 Embedded Retail Industry
Environmental Sealing
N/A
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V DC Power Adapter (50W)
External Dimensions (WxDxH)
372mm x 300mm x 258mm
Weight
4.71 Kg
EMC/Safety Standards
C-Tick, CE
