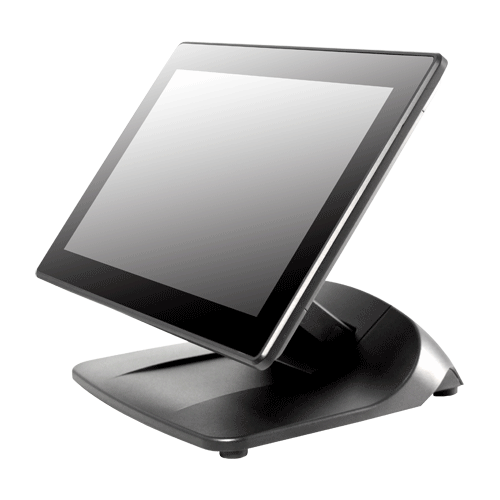

POSIFLEX TM-3114 14" Wide Screen LCD Resistive Touch Monitor

(Product may vary from image. Rely only on description for purchasing decisions.)

14" Bezelfree Standalone Wide Screen Touch Monitor

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Slim bezel-free design
  • 14” wide screen TFT LCD panel (16:9 aspect ratio)
  • LCD resolution up to 1366 x 768
  • Resistive touch panel
  • Optional side attachment support for TM-3114 (SL-104)
  • VESA mounting support
  • Dimension : 271.2 m (H) x 371.6 mm (W) x 252 mm (D); Weight : 3.69 kg
  • Colour : black or white(Special Order)
NameSizeDownload
No Downloads

Products available to purchase

 SKUVendorName
PFTM3114BF-U POSIFLEX14" Bezelfree LCD Touch Monitor Black USB
PFSL104B3-U POSIFLEXMSR Attachement 3 Track for LM TM3014

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Display
14” wide screen TFT LCD panel (16:9 aspect ratio)
Resolution
1366 x 768
Viewing Area
309.399 (H) x 173.952 (V)
Contrast Ratio
650:1
Brightness
200 nits
Response time
4 ms (Raising) / 6 ms (Falling)
View Angle
20/45/45/45 degree (U/D/L/R)
Tilt Angle
15° to 90°
Touch Panel
Bezel Free: Resistive Touch
I/O Ports
Touch Interface: USB
Pass through USB port for Optional MSR/RFID Attachments
Input Signal
VGA
Audio
N/A
OS Support
Windows XP Pro / POSReady 2009 / Windows 7 / POSReady 7 / WIN8.1 Embedded Retail Industry
Environmental Sealing
N/A
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V DC Power Adapter (18W)
External Dimensions (WxDxH)
271.2mm x 371.6mm x 252mm
Weight
3.69 Kg
EMC/Safety Standards
C-Tick, CE
