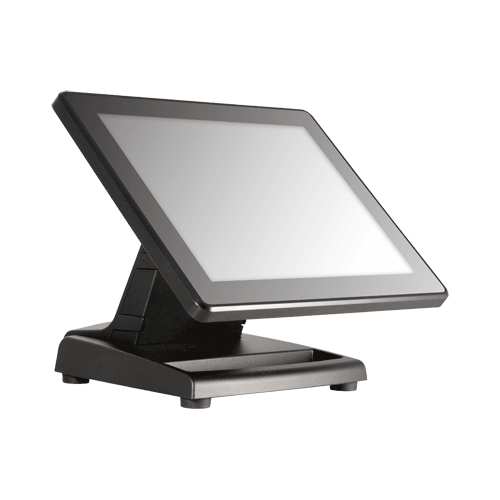

POSIFLEX TM-3110 9.7" LCD PCAP Touch Monitor

(Product may vary from image. Rely only on description for purchasing decisions.)

The TM-3110 is a stand alone 9.7" PCAP touch LCD Monitor.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Slim bezel-free design
  • 9.7” TFT LCD panel
  • LCD resolution up to 1024 x 768
  • PCAP touch panel
  • VESA mounting support
NameSizeDownload
No Downloads

Products available to purchase

SKUVendorName
PFTM3110CB-U POSIFLEX9.7" LCD PCAP Touch Monitor USB Black

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Display
9.7" TFT LED Backlit LCD Display
Resolution
1024 x 768
Viewing Area
196.61 (H) x 147.46 (V)
Contrast Ratio
500:1
Brightness
270 nits
Response time
20 ms (Raising) / 20 ms (Falling)
View Angle
70/70/70/60 (U/D/L/R)
Tilt Angle
15° to 70°
Touch Panel
Bezelfree PCAP touch panel with USB Interface
I/O Ports
N/A
Input Signal
VGA
Audio
N/A
OS Support
Windows XP Pro / POSReady 2009 / Windows 7 / POSReady 7 / WIN8.1 Embedded Retail Industry/ IoT
Environmental Sealing
IP65 to Front
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V DC Power Adapter (18W)
External Dimensions (WxDxH)
206mm x 244.5mm x 187.5mm
Weight
1.69 Kg
EMC/Safety Standards
C-Tick, CE
