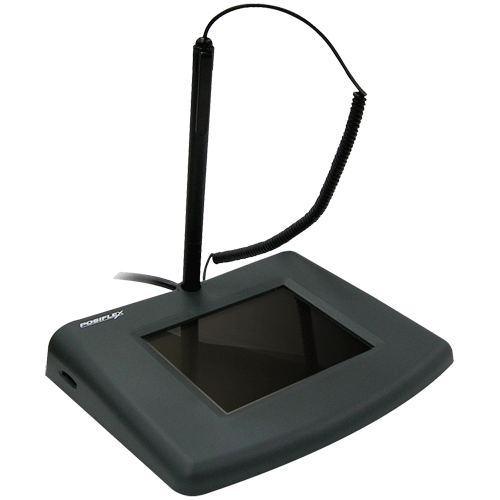

POSIFLEX SP-1200 Signature Capture Pad

(Product may vary from image. Rely only on description for purchasing decisions.)

The Posiflex SP-1200 provides a 3.8" FSTN LCD with resolution 320x240, which can electronically capture signatures for credit card approval or wherever a signature must be captured.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Signature Capture Pad
  • ITO resistive touch pad over 3.8" FSTN LCD
  • Display area 3" (Width) x 2.3" (Height) with resolution 320 x 240
  • Adjustable LCD backlight contrast
  • Touch Resolution 500dpi and Data Conversion Rate 540 pps
  • Low power consumption
  • Provides smooth bitmap and resolution for signature verification
  • Simultaneous view of electronic signature on LCD pad
NameSizeDownload
No Downloads

Products available to purchase

 SKUVendorName
PFSP1200-U POSIFLEXSP-1200 Signature Capture Pad USB I F

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Display
3.8" FSTN LED Backlit LCD Panel with LED Backlight
Resolution
320 x 240
Signature Area
58.6 mm (H) x 76.7 mm (V)
Touch Resolution
500 dpi
Touch Panel
ITO Resisitive transparent touch pad
Actuator
Tethered (spring coil) Stylus
Interfaces
USB - Ver. 1.1 (compatible to USB 2.0)
Output format
BMP
OS Support
Windows XP Pro / POSReady 2009 / Windows 7 / POSReady 7
Software Utilities
VB & Visual C++ SDK
Operating Environment
0 ~ +45 °C, 20 ~ 85% RH non-condensing
Storage Environment
-20 ~ +60 °C, 85% RH non-condensing
Power Supply
5V DC from USB Port
Power Consumption
max. 70 mA
External Dimensions (WxDxH)
150mm x 122mm x 26mm
Weight
0.37 Kg
EMC/Safety Standards
FCC Class A, CE, C-tick
