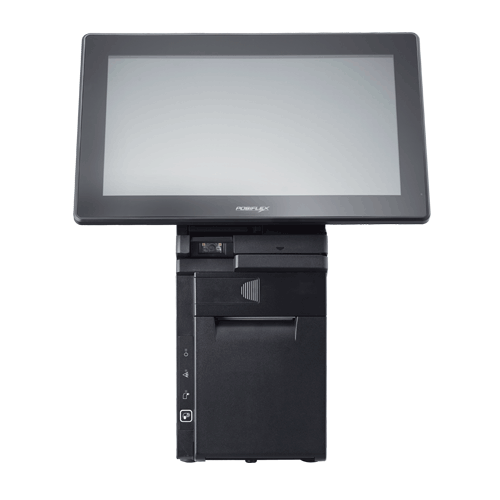

POSIFLEX HS-3514 All-in-one 14" POS Touch Terminal Series

(Product may vary from image. Rely only on description for purchasing decisions.)

HS-3514W is a whole new generation of high-end all-in-one POS terminal, packing innovativeness and functionalities in compact design with stylish look. It is the perfect fit for retail businesses where space is at premium.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Fan free POS Terminal
  • 14" LCD Display with PCAP Touch
  • Intel J1900 Quad Core CPU up to 2.42 GHz 2M Cache and DDR3L memory
  • All-in-one design
  • Small footprint
  • Build in 80mm high speed thermal Printer
  • Easy replaceable Printer Module
  • Optional build in RFID Reader, MSR, Contact Card Reader, Fingerprint module
  • Several Customer Display Options available
  • Comes with Bracket to lock down to bench for better stability
NameSizeDownload
Brochure518kb hs3510-12-14_brochure.pdf

Products available to purchase

 SKUVendorName
PFHS3514B-40128SRCD POSIFLEXHS-3514 Terminal 4G 120G SSD RFID 2D SC WIN10
PFHS3514CB-40128SRW POSIFLEXHS-3514 Terminal 4G 120G SSD RFID WIN7PRO 64b
PFHS3514CB-4064SCD POSIFLEXHS-3514 Terminal 4G 64G SSD 2D Scan WIN 10IoT 64b
PFHS3514CB-4064S4GD POSIFLEXHS-3514 Terminal 4G 64G SSD 4G Mod WIN 10IoT 64b
PFHS3514CB-4064SMZ POSIFLEXHS-3514 Terminal 4G 64G SSD MSR POSR7 64b
PFHS3514CB-4064SZ POSIFLEXHS-3514 Terminal 4G 64G SSD POSR7 64b
PFHS3514CB-4064SD POSIFLEXHS-3514 Terminal 4G 64G SSD WIN 10IoT 64b
PFLM3010HBF POSIFLEX9.7" Customer LCD Monitor for HS Series
PFWF650BT POSIFLEXMini PCIe Wifi Bluetooth module with External Antenn
AD-PF12VR130W4P POSIFLEXPower Adaptor 12V 130W for Posiflex Systems
PFTM3010HCB POSIFLEXRear Mnt 9.7" Touch Monitor PCAP for HS Series
T8080 GOODSONT8080 Premium Thermal rolls 80x80 (24 per Box)
T8080L48 GOODSONPremium Thermal rolls 80x80 48 rolls per box

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
SPT7510SAM4S SPT-7500 All-in-One Series 15" Touch Terminal

Parts documents

Parts layout details

Specifications
CPU
Intel Bay Trail J1900 Qual Core 2GHz up to 2.42GHz, 2M cache
Memory
DDR3L 1333 MHz, SO-DIMM socket x 1, max 8 GB, default 4 GB
Storage device(s)
In Australia standard with 64 GB SSD
Also Available with HDD or larger SSD on request
Display
14" LCD Display
Resolution
1366 x 768
Tilt Angle
17 ~ 45°
Touch Panel
True-Flat PCAP touch with 10 point multi-touch support
I/O Ports
3 x RS-232 interfaces; DB9 x2 & RJ-45 x1 with 5V or 12V support on COM1/COM2/COM3
4 x USB Ports: 1 x USB3.0/2.0 & 3 x USB2.0
1 x Parallel Port
1 x VGA Port for 2nd Display with 12V power for Posiflex Monitor
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x 10/100/1000 Ethernet Port
1 x Mini-PCIe Slot
I/O Devices (Intergrated)
80 mm Thermal Printer, 200 mm/sec, with Auto Cutter, easy field replaceable
Optional:
MSR 3 tracks ISO or JISII HID/VCOM Selectable
Smartcard Reader
RFID Reader HID/VCOM Selectable
Fingerprint Reader
Mini-PCIe Wifi Module
Audio
Line out Only
OS Support
POSReady 7 / Windows 7 / Windows Embedded 8.1 Industry / WIN 10 IoT / Linux per request
Environmental Sealing
IP65 to front of screen
Operating Environment
SSD: 0 °C ~ 50 °C, 20% ~ 90% Relative Humidity
HDD: 0 °C ~ 40 °C, 20% ~ 90% Relative Humidity
Storage Environment
-20 °C ~ 70 °C, 10% ~ 90% Relative Humidity
Power Supply
External Power Adapter 24V, 60W
External Dimensions (WxDxH)
376.1mm x 188.8mm x 473mm
Weight
5.8 Kg
