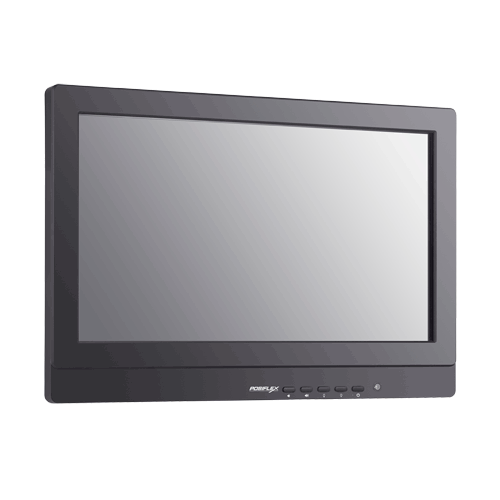

POSIFLEX HC-1021 21.5" infotainment touch terminal

(Product may vary from image. Rely only on description for purchasing decisions.)

The HC-1021P Series is a high-end infotainment terminal with a 21.5” touchscreen display. Well-suited to meet durability and aesthetic requirements, the HC-1021P Series offers real versatility for a variety of interactive solutions including self-service kiosks, kitchen display systems, and healthcare computing solutions

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • 21.5" Touch Terminal
  • CPU: Intel Braswell N3160 Quad Core, up to 2.24GHz
  • Options: built in 2D Scan Engine, MSR, TV Tuner with remote, RFID and Finger print Scanner
  • VESA 100 mm standard mounting holes allows HC-1021P to meet varied mounting demands
  • Applications: Kitchen Video, Price Checker, Bedside Terminal, Interactive Kiosk
NameSizeDownload
User Manual539kb ume_HC-1021IR_1021P.pdf

Products available to purchase

 SKUVendorName
PFHC1021B-4050Z POSIFLEXHC-1021P Terminal N3160 4G 500G HDD POSR7 64b
PFHC1021B-4050D POSIFLEXHC-1021P Terminal N3160 4G 500G HDD WIN IoT

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Intel Braswell N3160 CPU, 1.6 GHz / 2.24 GHz [Burst]
Memory
DDR3L 1600 SO-DIMM x 2, max. 8 GB in 2 slots, Default 4 GB
Storage device(s)
1 x SATA + 1 x micro SD
In Australia Standard with 500 GB SATA HDD can also be ordered with SSD Drives
Display
21.5" TFT LED Backlit LCD Display
Resolution
1920 x 1080
Tilt Angle
Pole or Wall mount depended
Touch Panel
Bezel Free: Projected Capacitive Touch supporting 10pts multi-touch with antiglare
I/O Ports
4 x RS-232 Ports (4 x DB9, with 5V/12V Support
5 x Standard USB Ports (2 x USB3.0, 5 x USB2.0)
2 x 10/100/1000Mb Ethernet Port
1 x VGA Port for 2nd Display (D-Sub with 12V Power for Posiflex LCD Monitors)
1 x HDMI Port
2 x mini-PCLe internal expansion slot
1 x Front Facing 5MP auto focussing Camera
Audio
3W Speaker Internal x 2 + Mic-in/ Line-out
OS Support
Windows IoT, Windows Embedded 8.1 Industry, Windows 7
Environmental Sealing
N/A
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH with SSD
0 ~ +40 °C, 20 ~ 90% RH with HDD
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V DC 130W Power Adapter
(Optional 150W when equiped with 2nd Display)
External Dimensions (WxDxH)
546.63mm x 6.1mm x 377.49mm
Weight
6.6 Kg
