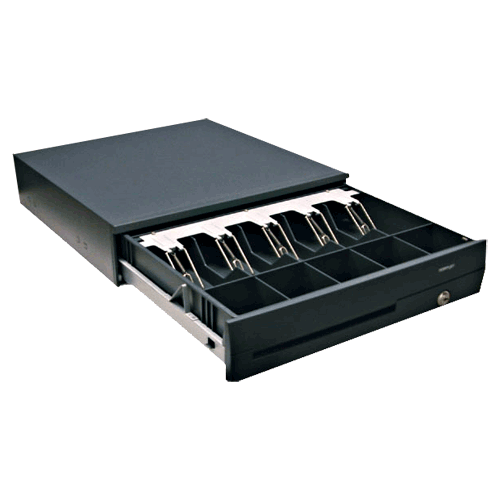

POSIFLEX CR-4100 Cash Drawer Series

(Product may vary from image. Rely only on description for purchasing decisions.)

The Posiflex CR-4100 Series Cash Drawer is a rugged heavy gauge steel cash drawer. It is designed with no screws or bolts accessable from the outside. The 4100 has the insert with the Metal note clips. The standard drawer can be used in all normal environments where the solenoid is fired by a POS system or Printer, no matter whether it is 12V or 24V. The Posiflex drawer is designed to work in a voltage range of 10 to 30 Volt.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Rugged design with reinforced heavy gauge steel Construction
  • No scews or bolts to be accessed from the outside
  • 3 Position Key Lock
  • Screw less temper resistance design
  • 5 Note/9 Coin, fixed coin section
  • Metal Note Clips
  • 10~30V Solenoid operation standard, also available with interface solutions
  • RJ12 Modular solenoid kick out connector or Interface versions available
  • Available in Black and Ivory
  • 428mm (W) x 460mm (D) x 100mm (H)
NameSizeDownload
User Manual146kb CR4XX0-4XX1-4XX2-4XX3-4X04-4X05_um.pdf
OPOS Driver for .NET1,349kb PF_OPOS.NET_v1.1.3.zip

Products available to purchase

SKUVendorName
PFCR4100B POSIFLEXCR-4100 Cash Drawer Black
PFCR4101B POSIFLEXCR-4101 Smart Interface Cash Drawer Black
PFCR4103B POSIFLEXCR-4103 Smart interface Parallel Cash Dr Black
PFCR4104B POSIFLEXCR-4104 RS232 Interface Cash Drawer Black
PFCR4105B POSIFLEXCR-4105 USB Interface Cash Drawer Black
PFCR41TRAY POSIFLEXCash Drawer insert for CR4100
PFCR41LID POSIFLEXLockable Lid for CR4100 Cash Drawer insert.
AD-12AC15 POSIFLEXPlug Pack for Posiflex CR41XX Drawer
PFCR41MOUNT POSIFLEXUndercounter bracket for CR-4000 4100 6310 series
DRMNLKICK12 GOODSONManual drawer kick unit 12V~24V

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
C4141C4141 Cash Drawer
CB430CB-430 Cash Drawer
CB910CB-900 Cash Drawer
EC410EC-410 Cash Drawer
FK182AAFK-182AA Cash Drawer

Parts documents

Parts layout details

Specifications
Construction Material
Steel Drawer
Plastic Coated Steel front
Metal Note clips
Screw-less tamper resistance design
Opening Rails
Nylon Rollers
Media slots
2 Slots
Lock
3 Position
Multiple Keyed Locks
Coin Departments
6 Fixed
Note Departments
5 Adjustable
Drawer Feedback
Drawer Open Microswitch
Interfaces
(CR4100) Printer or System Driven 10~30V Solenoid with RJ12 Connector
Weight
7.4 Kg
External Dimensions (WxDxH)
428 x 460 x100 mm
