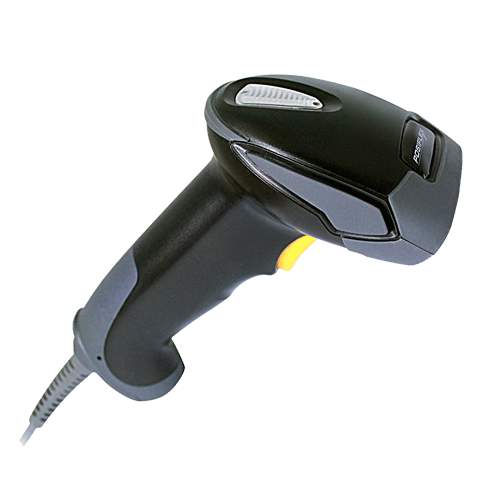

POSIFLEX CD-3870 Linear Imager Scanner Series

(Product may vary from image. Rely only on description for purchasing decisions.)

The Posiflex CD-3870 offers a longer range scanning capability, from 0 to 500 mm covering a wide range of scanning distances with an inexpensive price. Fast scanning rate up to 270 scans per second, it satisfies a retailer’s busy checkout needs. With large trigger button and ergonomic design, CD-3870 helps the retailer operate in an effortless way.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Long Range 1D CCD scanner
  • Depth of Field : 20 mm – 500 mm
  • Resolution : 0.075 mm (3 mil)
  • Scan Angle : 45 degree
  • Scan Width : Up to 250 mm (PCS90%)
  • Scan Rate : 270 scans/sec
  • Ambient light : 10,000 Lux
  • Drop Resistance : 1.5 m
NameSizeDownload
User Manual465kb cd3870_um.pdf
Virtual Com Port Driver for WinXP-Win7-Win8 32Bit64Bit11,323kb PF_CD-3870_vcp.rar

Products available to purchase

 SKUVendorName
PFCD3870B-U POSIFLEXCD-3870 Longe range CCD Scanner USB Black

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
MS9590MS-9590 VoyagerCG® Handheld Laser Scanner

Parts documents

Parts layout details

Specifications
Scan Engine
Long Range 1D CCD Scanner
Light Source
Visible Red LED
Scan Pattern
Single Line
Scan Rate
Up to 250 Scan/sec
Contrast Ratio
N/A
Resolution
Typical 0.075mm (3mils)
Depth of field
20-500mm (Code 39, PCS=90%, 20 mils)
Symbologies supported
Code 39, Full ASCII Code 39, Code 32, Code 128, Code 93, Code 11, Codabar/NW7, All UPC/EAN/JAN code (EAN-13, EAN-8, UPC-A, UPC-E, EAN-128), Interleave 2 of 5, STD 2 of 5, Industrial 2 of 5, matrix 2 of 5, Chinese Postage Code, IATA, MSI/PLESSY, Italian Pharmacy Code, Telepen. Option decodable: RSS-14, RSS Limited, RSS Expanded
Programming Method
Bar code command
Indicators/Controls
LED indication
Programmable Beeper
Communication Type
Corded
Interfaces
USB HID, USB Virtual COM, Standard RS232
Supply Voltage
DC +5V ±10%
Power Consumption
N/A
Drop Specification
Withstands multiple drops from 1.5m onto concrete
Environmental Sealing
N/A
Operating Environment
N/A
Storage Environment
N/A
EMC/Safety Standards
CE, FCC DOC Compliance, VCCI, BSMI
External Dimensions (WxDxH)
60 x 130 x 160 mm
Weight
120 g (cable not included)
