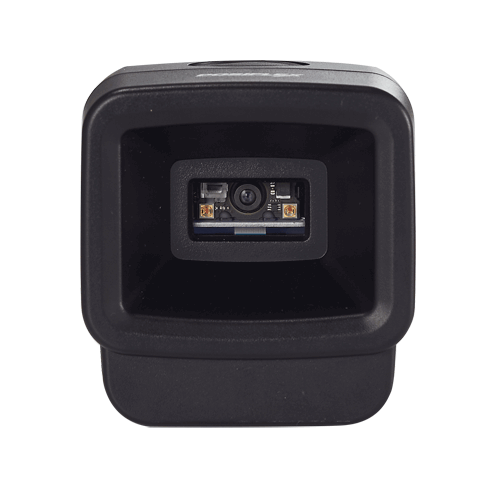

POSIFLEX CD-3601 2D Imaging Presentation Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

The Posiflex CD-3601 is an upgrade of the CD-3600 with white light illumination. It still offers 2D Imaging capability. Fast scanning rate up to 60 frames per second, can be used as a presentation Scanner or in a fixed mount solution

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • 2D image scanner (Presentation/fixed Mount Scanner)
  • Light source: 2 x white LED
  • Scan Method: CMOS array sensor
  • Resolution: 752 (H) x 480 (V) pixels
  • Depth of Field: 40~120 mm (15 mils QR code)
  • Scan Angle: Horizontal - 41°, Vertical - 26°
  • Scan Rate: Up to 60 fps
  • Scans most common 1D, 2D and Postal Codes
  • USB or Serial Interface
NameSizeDownload
No Downloads

Products available to purchase

 SKUVendorName
PFCD3601B-U POSIFLEXCD-3601 2D Presentation Image Scanner USB Black
PFST3600B POSIFLEXDesktop Holder for CD-3600 Black

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
CMOS array sensor
Light Source
2 x Visible White LED
Scan Pattern
Resolution: 752 (H) x 480 (V) pixels
Scan Rate
Up to 60 f/sec
Contrast Ratio
N/A
Resolution
Typical 5mils
Depth of field
Code 39:
40 - 170 mm (res. 0.254 mm / 10 mil)
50 - 90 mm (res. 0.127 mm / 5 mil)
QR Code:
50 - 130 mm (res. 0.381 mm / 15 mil)
DataMatrix:
40 - 120 mm (res. 0.31 mm / 15 mil)
Symbologies supported
1D Barcode Support: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBNISSN-ISMN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
2D Barcode Support: Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200/EC0-140), Maxi Code (mode 2~5), MicroPDF41, QR & Micro-QR Code, PDF417
Postal Code Support: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code
Programming Method
Bar code command
Indicators/Controls
LED indication
Programmable Beeper
Communication Type
Corded
Interfaces
USB HID, USB Virtual COM, RS232
Supply Voltage
DC +5V ±10%
Power Consumption
N/A
Drop Specification
Withstands multiple drops from 1.5m onto concrete
Environmental Sealing
N/A
Operating Environment
N/A
Storage Environment
N/A
EMC/Safety Standards
CE, FCC DOC Compliance
External Dimensions (WxDxH)
67 x 62 x 73 mm
Weight
118 g (cable not included)
