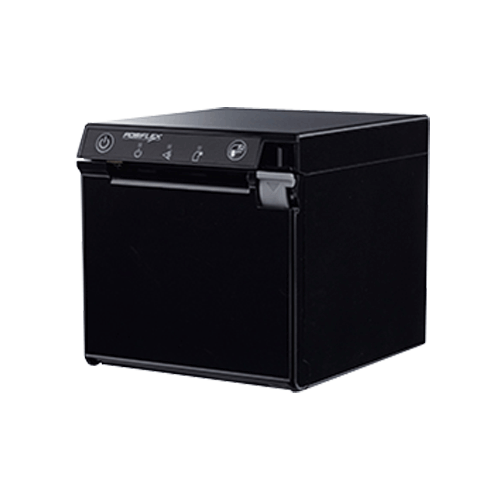

POSIFLEX AURA 7600 POS Thermal Receipt Printer Series

(Product may vary from image. Rely only on description for purchasing decisions.)

AURA-7600 features a compact, sleek and square shaped design that allows itself to be placed on or under the counter. Piano Gloss finish

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • 3" thermal printer with auto cutter
  • Printing speed up to 200 mm/sec max.
  • High-resolution printing up to 8 dots/mm and 576 dots/line
  • 80 mm or 58 mm paper width support
  • QR code and PDF417 printing support
  • Front paper loading and paper out for flexible deployment
  • Drop-and-load action for easy paper roll replacement
  • Dimension: 129.00 mm x 129.50 mm x 148.80 mm (W x H x D)
  • Interface : USB (True USB & Virtual COM selectable) + Serial, optional, LAN or Wireless interface module
NameSizeDownload
Brochure209kb pfpp7600_brochure.pdf

Products available to purchase

 SKUVendorName
PFPP7600URB POSIFLEXAURA 7600 USB & RS232 interface Thermal Printer
AD-PF24VR60W3P POSIFLEXPower Adaptor 24V 60W for Posiflex Printer HS35XX
PFKZ200 POSIFLEXPrinter Kitchen Buzzer with RJ12 Connector
CAB-D9MD9FExt GOODSON2m DB9M to DB9F straight Ext
TEP8080PB GOODSONStandard Thermal 80x80 Paper rolls 24 per box
TEP8080PBL48 GOODSONStandard Thermal 80x80 Paper Rolls 48 per Box

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
PP6900AURA PP-6900

Parts documents

Parts layout details

Specifications
Printing Method
Line Thermal Dot Printing
Printing Width
Dot Pitch
8 x 8 dots/mm (203 dpi)
Printing Speed (Max.)
Max. 200 mm/Sec
Number of Columns
Character Size
Character Table
15 international character sets (Denmark I, Denmark II, Ex-Jugoslavia, France, Germany, Italy, Japan, Korea, Latin America, Norway, Spain, Spain II, Sweden, UK, USA)
23 Code Pages
Bar-code Type
UPC-A/E, EAN13/8, ITF, CODE39/93/128, CODABAR, QR Code, PDF417
Line Spacing
Paper feed method
Friction Feed
Paper Type
Thermal Paper Roll
Paper Width
80 ± 0.5mm or 58 ± 1mm
Paper Roll Diameter
Max Ø 83.0mm
Paper Thickness
Paper Supply Method
Easy Paper Loading, Drop in loading
Auto Cutter
Guillotine, Partial cut or Full cut
Indicators/Controls
LED; Power; Error; Paper out
Emulation
ESC/POS
Input Buffer
6 KB
NV Memory
Sensors
Drawer Port
1 port (opens 2 drawers, special cable is needed to open 2 drawers)
External Device Port
N/A
Interfaces
USB Standard (True USB & Virtual COM Selectable) & RS-232
Driver available
Windows 2000/NT/XP/VISTA/7
Software Utilities
Power Supply
External Power Adaptor Input 100~240 AC Output 24V DC
Power Consumption
Max. 60W
External Dimensions (WxDxH)
129 x 148.8 x 129.5
Weight
approx. 1.0Kg
Operating Environment
5-40°C, 10-90% RH
Storage Environment
Reliability
EMC/Safety Standards
C-Tick, FCC Class A, RoHS, CE
