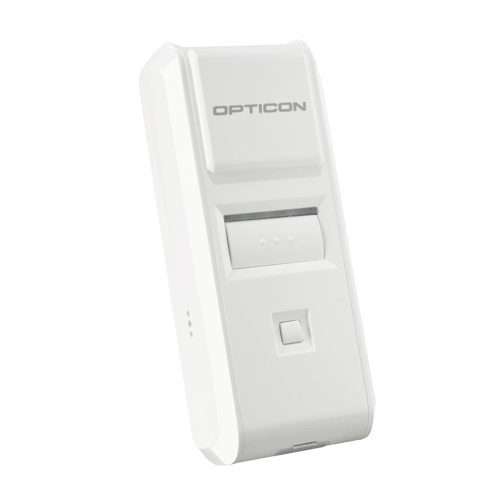

OPTICON OPN-4000n Bluetooth CCD Linear Barcode Data Collector

(Product may vary from image. Rely only on description for purchasing decisions.)

The OPN-4000n is a compact lightweight companion scanner that is easy to take with you and can connect to other devices through Bluetooth. The clean white design and the compact dimensions make this product look and feel state of the art. And rightfully so, as the CCD engine is powerful and the data transfer is fast.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • CCD Data Collector
  • High Speed Scanning
  • Bluetooth 2.1
  • Ultra Compact
NameSizeDownload
Brochure63kb opn4000n_brochure.pdf

Products available to purchase

 SKUVendorName
OPN4000n OPTICONOPN4000n BT CCD Linear Scanner white

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Processor
32-bit CISC 96 MHz
Development Environment
Operating Platform
Proprietory
Real-Time Clock
Quartz RTC for timestamp
Memory
Flash ROM: 1MB
RAM: 96 KB
Memory Expansion
N/A
Scan Engine
CCD Linear Sensor 1500 Pixels
Light Source: 1 red LED
Bar-code Type
1D: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey, S-Code
Postal Codes: Chinese Post, Korean Postal Authority Code
Keyboards
2 keys total: 1 function key, 1 scan key
Audio
Buzzer
Display
N/A
Camera
N/A
I/O Ports
Build in Mini USB port ver.1.1 USB-VCP
Radio Options
Bluetooth® V2.1 HID/SPP, 1 to 1 connection, master & Slave mode, authentication & encryption
Battery
Rechargeable battery: Lithium-Ion Polymer 3.7V 600mAh
Charging through USB Cable
Battery Life
25 Hours (2 scans/10 sec incl Bluetooth Communications)
Environmental Sealing
IP42
Mechanical Shock
Withstands drops from 1.2 m onto concrete with Rubber case
ESD Protection
N/A
External Dimensions (WxDxH)
36 x 83 x 21.5 mm
Weight
53g with Battery
Operating Environment
0 ~ 50°C
RH 20 ~ 85% non condensing
Storage Environment
-20 ~ 60°C
RH 20 ~ 85% non condensing
Product Compliance
C-Tick, CE, FCC, VCCI, RoHS, IEC 62471-1, EN60950-1, IEC60950-1, EN55022, EN 301 489-1 1.9.2, EN 301 489-17 V2.1.1, EN 300 328 V1.7.1
