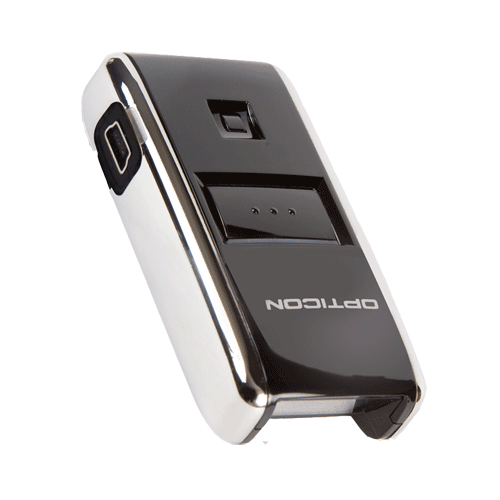

OPTICON OPN-2006 Bluetooth Laser Barcode Data Collector

(Product may vary from image. Rely only on description for purchasing decisions.)

The OPN-2006, part of the OPN-2000 series is a Bluetooth companion scanner. Remarkable features of this device are its outstanding specifications which include the use of Bluetooth 3.0, a high-performance 1D scan engine and low power consumption during operation.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Handheld Bluetooth Laser Barcode Data Collector
  • Bluetooth v3.0
  • Small form factor
  • 100 scans/second
  • Programmable
  • Ultra-lightweight, yet solid scanner withstands drops up to 1.5 meter onto concrete.
  • USB Communications and charging
NameSizeDownload
Brochure75kb opn2006_brochure.pdf
Quick Setup Guide937kb opn2006_qsg.pdf
USB Drivers Installer2,354kb OPT_USB Drivers Installer.exe

Products available to purchase

 SKUVendorName
OPN2006BT-U OPTICONOPN-2006 BT Memory Scanner
OPN2006BTKIT-U OPTICONOPN2006 BT Memory Scanner with Rubber Boot
OPCRD2000RU10 OPTICON10 Slot Charge Comms Cradle for OPN2002
OPN2001RBOOT OPTICONRubber Protection Booth for OPN200x
AD-USB10A GOODSONUSB Type A Power Supply 1A

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
OPN2002OPTICON OPN-2002 Bluetooth Laser Barcode Data Collector

Parts documents

Parts layout details

Specifications
Processor
ARM7 32-bit
Development Environment
4 applications available (also programmable in C-language.
Free software development kit with free RX compiler)
Operating Platform
Proprietory
Real-Time Clock
Quartz RTC for timestamp
Memory
Flash ROM: 512KB
RAM: 96 KB
External (user) FlashROM: 1 MB
Memory Expansion
N/A
Scan Engine
Laser scan Engine, 650nM visible Laser Diode
Scan Rate: 100 scan/sec
Bar-code Type
1D: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey, S-Code
Postal Codes: Chinese Post, Korean Postal Authority Code
2D: GS1 stacked
Keyboards
2 keys total: 1 function key, 1 scan key
Audio
Buzzer
Display
N/A
Camera
N/A
I/O Ports
Build in Mini USB port ver.1.1 USB-VCP (Special order USB-HID or USB-MSD)
Radio Options
Bluetooth® V3.0 HID/SPP, 1 to 1 connection, master & Slave mode, authentication & encryption
Battery
Rechargeable battery: Lithium-Ion Polymer 3.7V 240mAh
Charging through USB Cable
Battery Life
Batch: 4500 Scans (1 Scan/5 sec)
Bluetooth: 3500 Scans (1 Scan/5 sec)
Environmental Sealing
IP42
Mechanical Shock
Withstands drops from 1.5 m onto concrete with Rubber case
ESD Protection
N/A
External Dimensions (WxDxH)
32 x 62 x16 mm
Weight
29g with Battery
Operating Environment
0 ~ 40°C
RH 20 ~ 85% non condensing
Storage Environment
-20 ~ 60°C
RH 20 ~ 85% non condensing
Product Compliance
C-Tick, CE, FCC, VCCI, RoHS, JIS-C-6802, IEC 60825-1 Class 2, FDA CDRH Class II
