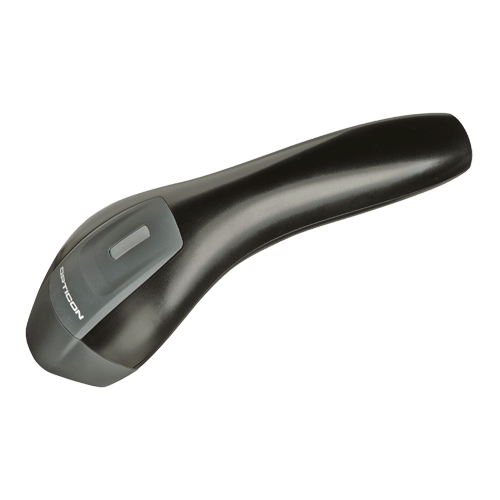

OPTICON OPI-1101 2D Cordless Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

The OPI-1101 is a cost effictive 2D Cordless Scanner. Communication with the supplied radio dongle via the USB port of your computer. Easy Pairing. Long Range.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • 2D CMOS Imager
  • Cordless IEEE802.15.4 Radio Communication
  • LED Aiming
  • Plug & Play (Easy Pairing)
  • 1.5m Drop Spec
  • Light Weight
NameSizeDownload
Datasheet115kb opi1101_datasheet.pdf

Products available to purchase

 SKUVendorName
OPI1101B OPTICONOPI-1101 2D Cordless Imaging Scanner
OPI1101BKIT OPTICONOPI-1101B KIT Scanner and Handsfree Stand
OPI11STAND OPTICONHandsfree Stand for OPI OPR1101
AD-USB10A GOODSONUSB Type A Power Supply 1A

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
CMOS Area Imager
Light Source
Green aiming LED
Red illumination LED's
Scan Pattern
752 x 480 Pixels
Scan Rate
60 fps
Motion Tolerance
N/A
Image Capture
Graphic Formats: BMP, JPEG, TIFF
GreyScale: 1024 256, 16, 2
Capture Area
N/A
Contrast Ratio
25% Minimum reflective difference
Resolution
Code39.Min 0.127mm / 5 mils
QR Code & Datamatrix 0.169mm / 7 mils
Depth of field
Code 39: 5 mils - 65-105 mm
Code 39: 10 mils - 45-185 mm
Code 39: 20 mils - 50-250 mm
QR Code: 8.4 mils - 70-95 mm
QR Code: 15 mils - 35-165 mm
Performance may be impacted by Bar code quality and environmental conditions
Tilt Angle
360°
Pitch Angle
+/- 50°
Skew Angle
+/- 50°
Ambient Light Immunity
0 - 100,000 Lux
Symbologies supported
1D:Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes

2D:Aztec Code, Aztec Runes, Chinese Sensible Code, Codablock F, Composite codes, Data Matrix Codes, Maxi code (mode2-5), MicroPDF417, Micro QR Code, PDF417, QR Code
Programming Method
Manual: Reads special bar codes
Data editing program
Driver available
Data editing program
Indicators/Controls
Large LED (red/green/orange)
Buzzer
Communication Type
IEEE 802.15.4
Communication Technology
Radio Frequency: 2.4 GHz IEEE 802.15.4
Radio Range : 100m open air
Point to point communications
Interfaces
USB for Charging
Radio Communication USB Dongle provided to link to PC
Supply Voltage
Polymer 3.7V 1200mAh
Charging 5 VDC (USB Port)
Charging time Approx. 4 Hours
Power Consumption
Charging : powered through USB Port
Drop Specification
Withstands repeated drops from 1.5 m onto a concrete surface
Environmental Sealing
N/A
ESD Protection
N/A
Operating Environment
0° ~ 40°C, Relative Humidity up tp 10-90% none condensing
Storage Environment
-20° ~ 60°C, Relative Humidity up tp 10-90% none condensing
EMC/Safety Standards
CE, C-Tick, FCC, RoHS
External Dimensions (WxDxH)
Scanner: 67 x 91 x 186mm
Weight
Reader 140g including battery
