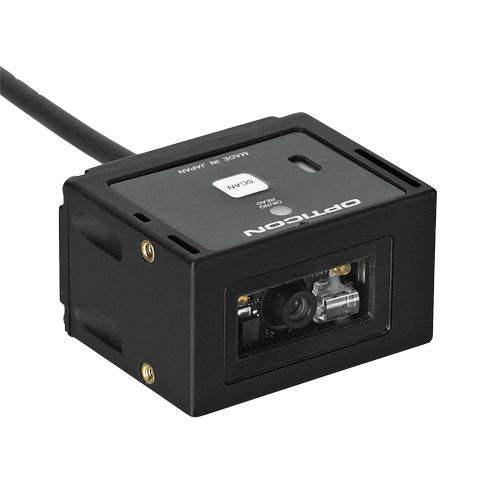

OPTICON NLV3101 Fixed Position 2D Scanner RS232

(Product may vary from image. Rely only on description for purchasing decisions.)
  • OPNLV3101A-R
  • 13091
  • OPTICON
  • OPNLV3101
  • Login to view pricing and availability

NLV3101 Fixed Position 2D Scanner RS232

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Automatic Scanning Operation
  • 2D Imaging engine
  • RS232, USB or KBW interface
  • Up to 60 Frames per seconds
  • Mobile mode reads barcodes from mobile phones
  • Multiple indicator lights
NameSizeDownload
Brochure135kb nlv3101_brochure.pdf
USB Drivers Installer2,354kb OPT_USB Drivers Installer.exe

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
CMOS area sensor, gray scale
Scan Pattern
Area Imager (752 x 480 pixel array)
Motion Tolerance
Fixed mount
Scan Angle
Horizontal 40.6°, Vertical 26.4°
Contrast Ratio
20% Minimum reflective difference
Pitch Angle
N/A
Skew Angle
N/A
Resolution
0.169 mm / 7 mil at PDF417
0.212 mm / 8 mil at QR code & DataMatrix
Depth of field
at Code 39
85 - 125 mm res. 0.127 mm / 5 mil
65 - 205 mm res. 0.254 mm / 10 mil
60 - 295 mm res. 0.508 mm / 20 mil
at QR Code
90 - 115 mm res. 0.212 mm / 8.4mil
55 - 195 mm res. 0.381 mm / 15 mil
Performance may be impacted by Bar code quality and environmental conditions
Ambient Light Immunity
Fluorescent 10,000 lx max, Direct sun 100,000 lx max, Incandescent 10,000 lx max
Indicators
Visual: 1 LED (green/blue/orange)
Non-visual: Buzzer
Interfaces
USB HID, Keyboard Wedge & RS232
Symbologies supported
1D: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey, USPS
Postal Code: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, Postal JPN, POSTNET
2D Code: Aztec Code, Aztec Runes, Composite codes, Codablock F, Data Matrix, (ECC200/EC0-140), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code
Supply Voltage
6V ± 10%
Power Consumption
Max. 200 mA
Operating Environment
0° ~ 45°C, Relative Humidity up tp 20-85% none condensing
Storage Environment
-20° ~ 60°C, Relative Humidity up tp 20-90% none condensing
Drop Specification
Designed to withstand 0.75M drops to concrete
Environmental Sealing
IP65
ESD Protection
15 kV (Non-destructive)
External Dimensions (WxDxH)
41.1 x 33 x 24 mm
Weight
30 g excluding Cable
Product Compliance
CE, FCC Class B, VCCI Class B, RoHS, IEC 62471, EN55022, EN55024, FDA CDRH Class II
