OPTICON M-10 2D Omni-Directional Presentation Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

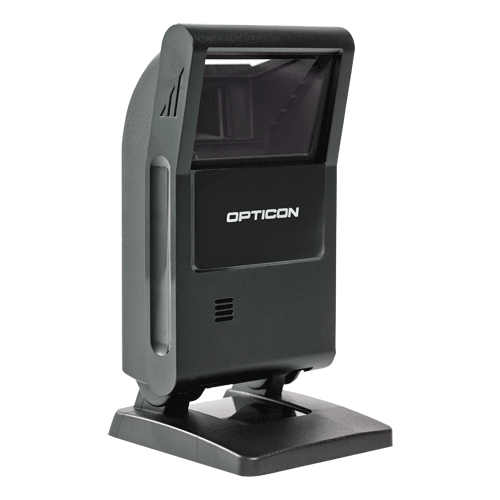

The M-10 is an omni-directional presentation scanner. Offering our high performance 2D CMOS Imager along with a well thought out ergonomic design, which allows the scanner being used in the hand or traditionally on a desk with its adjustable stand.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • 2D Imager
  • Supports all common Linear (1D) bar codes and 2D Codes
  • Omni-directional Scanning
  • Imaging for mobile coupons
  • High speed imaging for fast moving codes
  • Automatic sensing or manual trigger options available
NameSizeDownload
Brochure116kb opm10_brochure.pdf
Quick Setup Guide4,997kb opm10_qsg.pdf

Products available to purchase

 SKUVendorName
OPM10B-U OPTICONOPM-10 2D Presentation Scanner USB Black

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
MS7120MS-7120 Orbit® Omni-directional Presentation Scanner
OPM2000OPTICON OPM2000 Omni-Directional Laser Scanner
OPM5OPTICON M-5 2D Presentation Scanner
OPV1001OPTICON OPV-1001 Omni-Directional Laser Barcode Scanner

Parts documents

Parts layout details

Specifications
Scan Engine
Area Imager Scanner
Light Source
2 Red LEDs Aiming and auto trigger activation light source – 1 green LED
Scan Pattern
N/A
Scan Rate
Up to 60 fps
Motion Tolerance
10 - 100 Hz with 2G for 3 hours
Image Capture
Windows Bitmap, JPEG
Capture Area
N/A
Contrast Ratio
N/A
Resolution
Min Resolution –PDF: 0.169 mm QR code: 0.212 mm DataMatrix:
0.212 mm
Depth of field
Depth of field at Code 39: 35 - 60 mm / 1.38 - 2.36 in (0.127 / 5 mil), 0 - 140 mm / 0 - 5.51
in (0.254 / 10 mil), at QR code: 35 - 55 mm / 1.38 - 2.17 in (0.212 / 8.4 mil),
0 - 120 mm / 0 - 0.472 in (0.381 / 15 mil), at PDF417: 25 - 70 mm / 0.98 -
2.76 in (0.169 / 6.7 mil), 0 - 120 mm / 0 - 4.72 in (0.254 / 10 mil)
Tilt Angle
ca 180°
Pitch Angle
50°
Skew Angle
50°
Ambient Light Immunity
Fluorescent 10,000 lx or less, sunlight 100.000 lx or less
Symbologies supported
Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code
39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA,
Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/Plessey,
S-Code, Telepen, Tri-Optic, UK/Plessey, USPS Postal code: Chinese Post,
Intelligent Mail Barcode, Korean Postal Authority code, Postal JPN, POSTNET
2D code: Aztec Code, Aztec Runes, Composite codes, Codablock F, Data
Matrix, (ECC200/EC0-140), Maxi Code (mode 2~5), MicroPDF417, Micro QR
Code, PDF417, QR code
Programming Method
Manual: Reads special bar codes
Automatic: Software commands through the RS-232 / USB interfaces
Opticonfigure
Driver available
N/A
Indicators/Controls
Visual: 2 LEDs (green/blue/orange) Non-visual: Buzzer
Communication Type
RS232: DB9 PTF connector with external power supply, 300 bps~115200 bps
USB: Full-speed 12Mbps (HID/COM) Voltage requirement: 5.7~6.3V
Interfaces
USB: OEM USB, USB COM, USB HID Keyboard
RRS232: DB9 PTF connector with external power supply, 300 bps~115200 bps
USB: Full-speed 12Mbps (HID/COM) Voltage requirement: 5.7~6.3V
Supply Voltage
5.7~6.3V
Power Consumption
N/A
Drop Specification
1.5 m / 5 ft drop onto concrete surface
Environmental Sealing
IP52
ESD Protection
N/A
Operating Environment
-5 to 45 °C Humidity in operation: 20 - 85%
Storage Environment
-20 to 60 °C 20 - Humidity in storage: 90%
EMC/Safety Standards
CE, IEC62471-1, VCCI, EN55022, FCC Class-B
External Dimensions (WxDxH)
72 x 70 x 139 mm
Weight
250 g
