OPTICON L-46X 2D Imager Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

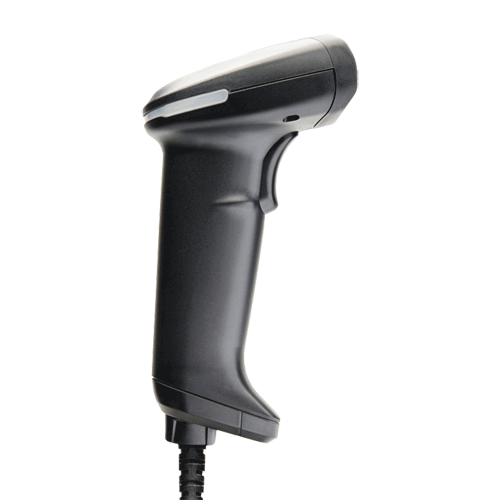

The L-46X is a fast 2D hand scanner that comes with a stand. The L-46 scans at a speed of 100 frames per second. The cables are interchangeable, making it easy to switch between USB or RS-232 interface.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • 2D Handheld Imager Scanner
  • Exchangeable cables
  • Auto-trigger
  • High speed moving object scanning
  • 100 frames per second
NameSizeDownload
Brochure88kb opl46x_brochure.pdf

Products available to purchase

SKUVendorName
OPL46XBKIT-U OPTICONL-46X 2D Imager Scanner Black with Stand USB

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
3800GIT-3800G Linear Imager
3800LRIT-3800LR Linear Imager
OPI2101OPTICON OPI-2101 2D Handheld Scanner
OPI3601OPTICON OPI-3601 2D Handheld Scanner
OPL50XOPTICON L-50X 2d Handheld Scanner
OPL51XOPTICON L51X 2D Handheld Scanner

Parts documents

Parts layout details

Specifications
Scan Engine
CMOS Area Sensor. 640 x 480 pixels
Light Source
Aiming green LED
Scan Pattern
640 x 480 Pixels
Scan Rate
Up to 100 frames/sec
Resolution
at PCS 0.9: 0.1 mm / 3.9 mil
Minimum PCS 0.2
Depth of field
Code 39:
43 - 330 mm (res. 0.508 mm / 20 mil)
21 - 168 mm (res. 0.254 mm / 10 mil)
23 - 69 mm (res. 0.127 mm / 5 mil)
Code 128
36 - 124 mm (res. 0.2 mm / 7.87 mil)
UPC
21 - 207 mm (res. 0.33 mm / 13 mil)
PDF417
16 - 88 mm (res. 0.169 mm / 5 mil)
12 - 142 mm (res. 0.254 mm / 10 mil)
QR Code:
32 - 56 mm (res. 0.169 mm / 5 mil)
0 - 173 mm (res. 0.381 mm / 15 mil)
DataMatrix:
34 - 60 mm (res. 0.169 mm / 5 mil)
14 - 108 mm (res. 0.254 mm / 10 mil)
Tilt Angle
360°
Pitch Angle
-65 to 0°, 0 to +65°
Skew Angle
-65 to 0°, 0 to +65°
Ambient Light Immunity
Fluorescent 10,000 lux max, Incandescent 10,000 lux max., Direct Sun 100,000 lux
Symbologies supported
1D: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 Databar (RSS), GS1 DataBar Limited, GS1 DataBar Expanded, Code 11, Industrial 2of5, Interleaved 2of5, MSI/Plessey.
Postal Code: Inteligent Mail Barcode,Korean Postal Authority code, POSTNET PLANET, Japan Postal, Netherland KIX Code, UK Postal, Australian Postal Code
2D Code: Aztec Code, Chinese Sensible Code, Codablock F, DataMatrix (ECC 200), Maxi Code, MicroPDF417, Micro QR Code, PDF417, QR Code.
Programming Method
Scan barcodes from Manual
Indicators/Controls
1 x Scan Key
Visual 1 White LED
Buzzer, vibrator
Operating Modes
Manual Trigger, Auto Trigger, Stand Detection
Communication Type
Cabled
Interfaces
USB - Ver. 2.0, HID/COM, USB-A connector
RS232 - DB9 PTF connector with external power supply
Supply Voltage
5 V ± 5 %
Power Consumption
Typical. 330 mAh
Drop Specification
1.8 m / 6 ft drop onto concrete surface
10 - 100 Hz with 2G for 1 hour
Environmental Sealing
IP42
Operating Environment
-5 to 50 °C
RH 0 - 90 % (non-condensing)
Storage Environment
-30 to 60 °C
RH 0 - 90 % (non-condensing)
EMC/Safety Standards
CE, FCC, VCCI Class B, RoHS, IEC/EN 62471-1:2006, EN55032, EN55024
External Dimensions (WxDxH)
Scanner 105.4 x 60 x 153.4 mm
Stand 53 x 73 x 112 mm
Weight
Scanner 112 g (excl. cable)
Stand 365 g
