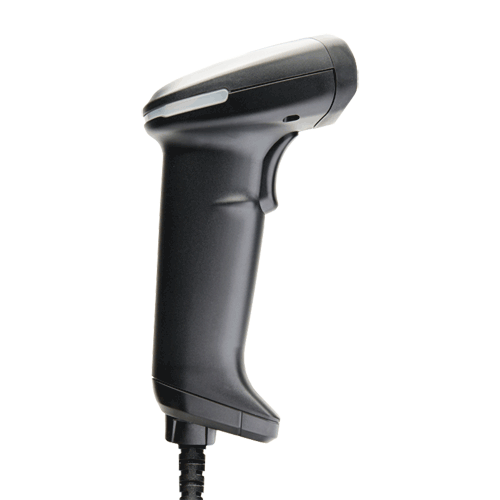

OPTICON L-46R Laser Scanner Black with Stand USB

(Product may vary from image. Rely only on description for purchasing decisions.)
  • OPL46RBKIT-U
  • 14008
  • OPTICON
  • OPL46R
  • Login to view pricing and availability

L-46R Laser Scanner Black with Stand USB

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • 1D Handheld Laser Scanner
  • Exchangeable cables
  • Auto-trigger
  • High speed moving object scanning
  • 100 scans per second
NameSizeDownload
Brochure86kb opl46r_brochure.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
1200gVoyager 1200g Laser Scanner
LS2208LS-2208 Handheld Laser Scanner
MS9520MS-9520/9540 Voyager® Handheld Laser Scanner
OPR3201OPTICON OPR-3201 Laser Scanner

Parts documents

Parts layout details

Specifications
Scan Engine
Red Laser
Light Source
645-664 nm visible laser diode
Scan Pattern
Single Line
Bi-Directional
Scan Rate
100 Scans/sec
Resolution
0.076 mm
Depth of field
20 - 895 mm (res. 1.0 mm / 39 mil),
0 - 495 mm (res. 0.5 mm / 20 mil)
0 - 300 mm (res. 0.33 mm / 15 mil)
5 - 200 mm (res. 0.25 mm / 9.84 mil)
5 - 90 mm (res. 0.15 mm / 6 mil)
10 - 60 mm (res. 0.127 mm / 5 mil)
at PCS 0.9, Code 39
Tilt Angle
-20 to 0°, 0 to +20°
Pitch Angle
-35 to 0°, 0 to +35°
Skew Angle
-50 to 0°, 0 to +50°
Ambient Light Immunity
Fluorescent 4,000 lux max, Direct Sun 80,000 lux
Symbologies supported
JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, GS1-128 (EAN-128), GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Industrial 2of5, Interleaved 2of5, Matrix 2of5, MSI/Plessey
Composite codes, MicroPDF 417, PDF417
Programming Method
Scan Barcodes from Manual
Indicators
1 x Scan Key
Visual 1 White LED
Buzzer, vibrator
Operating Modes
Manual Trigger, Auto Trigger, Stand Detection
Communication Type
Cabled
Interfaces
RS232 - DB9 PTF connector with external power supply
USB - Ver. 2.0, HID/COM, USB-A connector
Supply Voltage
5 V ± 10 %
Power Consumption
Max. 155 mA (typical use)
Drop Specification
1.8 m / 6 ft drop onto concrete surface
10 - 100 Hz with 2G for 1 hour
Environmental Sealing
IP42
Operating Environment
-5 to 50 °C
RH 5 - 90 % (non-condensing)
Storage Environment
-30 to 60 °C
RH 5 - 90 % (non-condensing)
EMC/Safety Standards
CE, FCC, VCCI, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II
External Dimensions (WxDxH)
Scanner 105.4 x 60 x 153.4 mm
Stand 53 x 73 x 112 mm
Weight
Scanner 112 g (excl. Cable)
Stand 365 g
