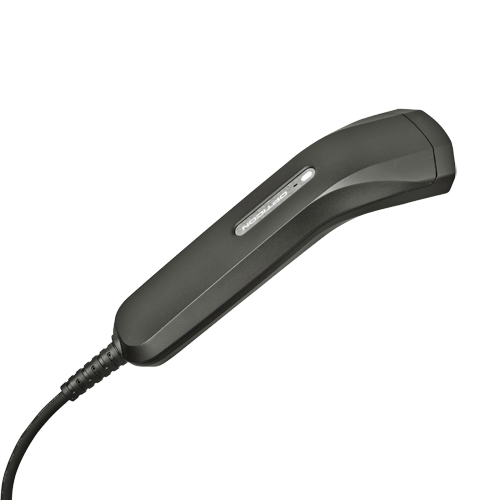

OPTICON C-41S Handheld Cabled CCD Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

The C-41S is a durable CCD scanner that scans at a speed of 300 scans per second. Due to the wide optical window it is easier to scan all 1D barcodes. The ergonomic design ensures a perfect balance when the scanner rest comfortably in your hand. The scanner looks good on the counter of any store of service desk, blending in with the design of the environment.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Handheld CCD Scanner
  • Small form factor, sleek ergonomic design
  • 300 scans/second
  • Ultra-lightweight, yet solid scanner withstands drops up to 1.5 meter onto concrete.
  • Available in USB, RS232 (special order) interface
NameSizeDownload
Brochure140kb opc41s_brochure.pdf

Products available to purchase

 SKUVendorName
OPC41SB-UHID OPTICONC-41S CCD Scanner USB (HID) Black

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
DLTouchDatalogic Touch 65/90/90 Pro Contact Scanner

Parts documents

Parts layout details

Specifications
Scan Engine
CCD linear image sensor 1500 pixels
Light Source
Red LED
Scan Pattern
Single Line
Scan Rate
300 scans/sec
Motion Tolerance
N/A
Image Capture
N/A
Capture Area
N/A
Contrast Ratio
N/A
Resolution
Min. Resolution at PCS 0.9: 0.076 mm
Depth of field
At Code 39,
40 - 90 mm (0.127 / 5 mil)
35 - 120 mm (0.15 mm / 6 mil)
20 - 220 mm (0.25 mm/ 10 mil)
30 - 320 mm (0.5 mm / 20 mil)
45 - 600 mm (1.0 mm / 39 mil)
Tilt Angle
+/- 25°
Pitch Angle
+/- 50°
Skew Angle
+/- 65°
Ambient Light Immunity
10,000 Lux Max.
Symbologies supported
BARCODE (1D):
JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS) (exl.stacked), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSM-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
POSTAL CODE:
Chinese Post, Korean Postal Authority Code
Programming Method
Scan codes in Manual
Driver available
Indicators/Controls
LED
Buzzer
Operating Modes
Trigger
Communication Type
Cable
Communication Technology
N/A
Interfaces
USB: Ver. 2.0, HID/COM (VCP)
RS232: DB9Pin Female connector with DC Jack for external power supply
Not Multi Interface
Supply Voltage
USB: 4.5V to 5.5
RS232: 5.5-6.5V
Power Consumption
N/A
Drop Specification
Designed to withstand repeated 1.5m drops to concrete
Vibration Test 10-100Hz with 2G for 1 Hour
Environmental Sealing
IP42
ESD Protection
N/A
Operating Environment
0° ~ 50°C, Relative Humidity 5 - 95% none condensing
Storage Environment
-20° ~ 60°C, Relative Humidity 5 - 95% none condensing
EMC/Safety Standards
CE, FCC, VCCI, RoHS, IEC62471, EN 61000, EN55022, EN55024
External Dimensions (WxDxH)
Scanner: 55.9 x 154 x 33.8 mm
Weight
Scanner 55 g
