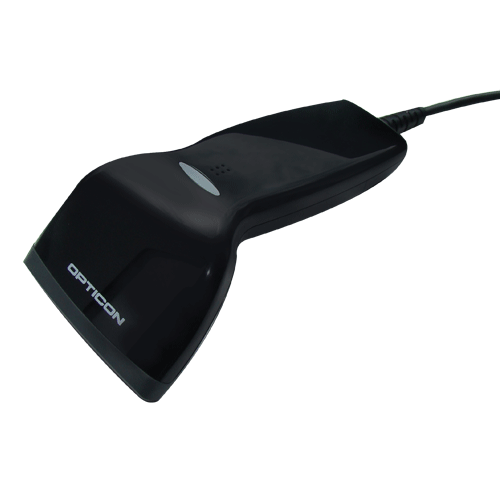

OPTICON C-37 Handheld CCD Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

The C37 is a durable CCD scanner with a wide optical window. With its aggressive scan engine the C37 operates at a speed of 200 scans per second. Available in black and white, this sleek scanner fits on every desk. This lightweight and ergonomically shaped device fits comfortably in anyone's hand, making it suitable for all-day scanning applications. The C37 is available with the most popular interfaces: USB, Keyboard Wedge and RS232. This device is easily programmable to suite your application.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Handheld CCD Scanner
  • Small form factor
  • 200 scans/second
  • Ultra-lightweight, yet solid scanner withstands drops up to 1.5 meter onto concrete.
  • Available in USB, RS232 and Keyboard Wedge interface
NameSizeDownload
Brochure85kb opc37_brochure.pdf
Setup Guide229kb op_basic_setup_guide.zip
Barcode Reference Manual554kb op_barcode_ref_manual.zip
USB Drivers Installer2,354kb OPT_USB Drivers Installer.exe

Products available to purchase

 SKUVendorName
OPC37B-U OPTICONC-37 CCD Scanner with USB Black
AD-OP6VR10P1.7 OPTICONPlug Pack 6V Reg. 1 Amp Ctr Pos 1.7mm

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
DLTouchDatalogic Touch 65/90/90 Pro Contact Scanner

Parts documents

Parts layout details

Specifications
Scan Engine
CCD linear image sensor 2500 pixels
Light Source
Red LED 630 nm
Scan Pattern
Single Line
Scan Rate
200 scans/sec
Motion Tolerance
N/A
Image Capture
N/A
Capture Area
N/A
Contrast Ratio
N/A
Resolution
0.125 mm / 5 mils (Linear Barcodes)
Depth of field
Code 39:
5 mils - 0 to 1.5 cm
Tilt Angle
+/- 25°
Pitch Angle
+/- 30°
Skew Angle
+/- 70°
Ambient Light Immunity
10,000 Lux Max.
Symbologies supported
1D: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 Databar (RSS), GS1 DataBar Limited, GS1 DataBar Expanded, Code 11, IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSM-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic,UK/Plessey
Postal Code: Chinese Post, Korean Postal Authority code
Programming Method
Scan codes in Manual
Driver available
Indicators/Controls
Multi Colour LED (red/green/orange)
Buzzer
Operating Modes
Trigger
Communication Type
Cable
Communication Technology
Interfaces
USB: ver1.1, HID/VCP, USB-A Connector
RS232: DB9 Connector with external power supply connector
KBW: Mini DIN 6 F/M Connector
Not Multi Interface
Supply Voltage
USB/KBW: 5V +/- 10%
RS232: 4.5-6.6V
Power Consumption
N/A
Drop Specification
Designed to withstand repeated 1.5m drops to concrete
Vibration Test 10-100Hz with 2G for 1 Hour
Environmental Sealing
IP42
ESD Protection
N/A
Operating Environment
0° ~ 50°C, Relative Humidity 5 - 95% none condensing
Storage Environment
-20° ~ 60°C, Relative Humidity 5 - 95% none condensing
EMC/Safety Standards
CE, FCC, VCCI, RoHS
External Dimensions (WxDxH)
Scanner: 53 x 150 x 75mm
Weight
Scanner 90 g
