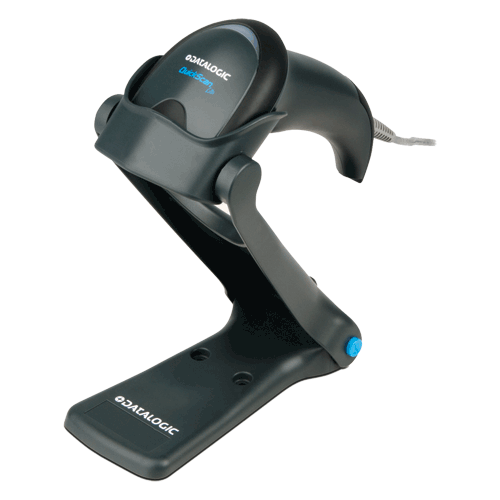

DATALOGIC QuickScan™ Lite QW-2400 2D Imager Scanner Series

(Product may vary from image. Rely only on description for purchasing decisions.)

AREA IMAGING TECHNOLOGY The QuickScan Lite QW2400 2D area imager is an entry level scanner specifically designed for reading long and truncated 1D codes and larger 2D codes from close distance. The QW2400 imager has an extra-wide Field of View (FOV)which captures these challenging 1D and 2D codes at a nominal distance using different scan angles, meeting the scanning needs in Retail, Light Manufacturing, Document/Bill Processing and Banking/Finance. The QuickScan Lite 2D imager is the most affordable area imager with the best performance in its class.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • 2D Area Imager Scanner
  • Wide scan angle and Field of View (FOV)
  • Blue aiming dot on white illumination
  • Datalogic’s patented ‘Green Spot’ technology for good-read feedback
  • Two interface options: USB or Keyboard Wedge/RS-232
  • Excellent performance in reading bar codes displayed on mobile devices
  • Built with over-molded rubber to protect the imager when dropped
  • Compact and multi-position stand
  • Water and Particulate Sealing Rating: IP42
  • Drop resistance to 1.5 m onto Concrete surface
  • Uses the same cables and power supplies as the current QuickScan products
  • USB certified kits available
  • Remote Host Download lowers service costs and improves operations and is available for all models
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
NameSizeDownload
Datasheet248kb QuickScan I QW2400 Lite _ English A4.pdf
Quick Reference Guide1,283kb dlqw2400lite_qrg.pdf
Product Reference Guide11,125kb dlqw2400lite_prg.pdf

Products available to purchase

 SKUVendorName
DLQW2420BKIT-U DATALOGICQuickscan Light 2D USB Scanner with Stand
AD-DL5VR06N DATALOGIC5.2V 650 mA Power Supply
CAB-DL363 DATALOGICCAB-363 RS232 Coiled DB25M
CAB-DL350 DATALOGICCable RS232 Straight Power P9 and RPE
DLQD24STAND-B DATALOGICGooseneck stand for Quickscan 2400
CAB-DL365 DATALOGICPS2 12" Coile Cable for Gryph
CAB-DL321 DATALOGICPS2 KB straight cable for Heron Gryphon

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
Area Imager
Light Source
Aiming: 1 Blue LED
Illumination: White LED 370-770 nm
Scan Pattern
Wide VGA 640 x 480 Pixels
Scan Rate
Motion Tolerance
20 IPS
Contrast Ratio
20% Minimum reflective difference
Resolution
Code 39: 0.102mm / 4 mils
PDF417: 0.168mm / 6.6 mils
QR/Data Matrix: 0.191mm / 7.5 mils
Depth of field
Code 39: 5 mils - 0.5 to 12.5 cm
Data Matrix: 10 mils - 1.0 to 9.5 cm
EAN-13: 13 mils - 0.5 to 30.0 cm
PDF417: 6.6 mils - 1 to 9.5 cm
QR; 20 mils - 1.0 to 14 cm
Performance may be impacted by Bar code quality and environmental conditions
Tilt Angle
360°
Pitch Angle
+/- 65°
Skew Angle
+/- 65°
Ambient Light Immunity
0 - 92,000 Lux
Symbologies supported
1D:Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes
2D:Aztec Code; Aztec Mesas; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code
Postal Codes: Australian Post; British Post; Canadian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Korea Post
Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
Programming Method
Manual: Reads special bar codes
Automatic: Software commands through the RS-232 / USB interfaces
Datalogic Aladdin™: Windows configuration program
Remote host download
Driver available
JavaPOS, OPOS Utilities
Indicators/Controls
Scanner Indicators:
Good Read LED
"Green spot" on the code
Adjustable tone & volume beeper
Communication Type
Cabled
Interfaces
QW2420: USB
QW2470 : RS232/KBW Multi-Interface
Supply Voltage
5 VDC +/- 10%
Power Consumption
Operating : Typical 170 mA @5VDC
Standby/Idle: Typical 90mA @ 5VDC
Drop Specification
Withstands repeated drops from 1.5 m onto a concrete surface
Environmental Sealing
IP42
ESD Protection
+/- 16 kV air discharge
Operating Environment
0° ~ 50°C, Relative Humidity 0 - 95% none condensing
Storage Environment
-20° ~ 70°C, Relative Humidity 0-95% none condensing
EMC/Safety Standards
The product meets necessary safety and regulatory approvals for its intended use.
Complete list in Quick Reference guide
Complies to EU RoHS & China RoHS
External Dimensions (WxDxH)
Scanner: 66 x 71 x 171mm
Weight
120 g
