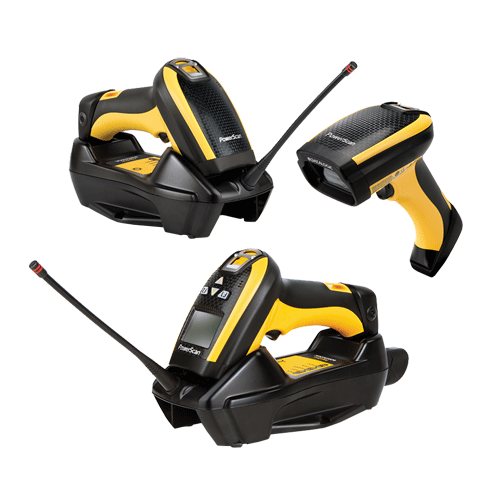

DATALOGIC PowerScan® M9500 Industrial Mobile 2D Imager Scanner Series

(Product may vary from image. Rely only on description for purchasing decisions.)

The PowerScan PM9500 area imager is a ruggedized cordless reader suitable for all demanding applications. It is equipped with a new generation of the Datalogic STAR Cordless System™, the proprietary radio from Datalogic, which further improves the outstanding features of versatility, ease-of-use and radio range. The PM9500 series offers two display options: 4 configurable keys and a full 16-key keyboard. This increases interaction between the host and the user allowing a two-way exchange of information for more reliable and effective communications.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • High-performance Liquid Lens increases the depth-of-field for reading wide and high density codes
  • Snappy omnidirectional reading
  • Soft white light illumination
  • Available with optional display and 4 or 16-key keyboards
  • Industrial Cordless 2D Area Imager Scanner
  • Point-to-point and multi-point transmission
  • Networking and seamless roaming
  • High speed 433 MHz radio communications
  • Datalogic’s Motionix™ motion-sensing technology
  • Datalogic’s 3GL™ (3 Green Lights) technology and loud beeper for good-read feedback
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
NameSizeDownload
Datasheet151kb pm9500_datasheet.pdf
Quick Reference Guide1,123kb dlps9500m_qrg.pdf
Product Reference Guide10,043kb dlps9500d_pbt_pm_prg.pdf

Products available to purchase

 SKUVendorName
DLPM9500HPR DATALOGICPM9500 Ind cordless 2D Sc Perf Liquid Lens Rem Bat
DLPM9500DHPR-KIT DATALOGICPM9500 Ind cordless 2D Sc with Displ & 16 Key Keypad
DLPM9500DHPR DATALOGICPM9500 Ind cordless 2D Sc with Displ & 4 key Keypad
DLPM9500RKIT-U DATALOGICPowerScan Mobile 9500 Kit with Removable Battery
DLPM9500R DATALOGICPowerScan Mobile 9500 Removable Batt Scanner Only
DLBC9030B-433 DATALOGICBase Station Charger for PM9x00
DLBC9180B-433 DATALOGICBC9180 Base Station Dual Charger 433 MHz Ethernet
CAB-DL479 DATALOGICCAB-479 RS232 9P Female coiled 7.6m
AD-DL12VR DATALOGICPower supply 12v DC for Datalogic with Power Cable
DLPC9000 DATALOGICPowerScan 9xxx Protective Case & Belt Holster
DLPD7REEL DATALOGICPowerScan Industrial Take up Reel
DLHLS8000 DATALOGICPwrScan 8x Universal Holster
CAB-DL433 DATALOGICRS232 DB9F cable1.8m Power inlet & Pin 9
CAB-DL524 DATALOGICUSB A Coiled cable for PM8300
CAB-DL438 DATALOGICUSB A Straight cable for PM8300 9500
CAB-DL436 DATALOGICWedge PS 2 Straight Cable
DLZSC2PM95B31 DATALOGICPM95 PBT95 Base Station Comp Cover 2Days 3yrs
DLZSC2PM95DPM31 DATALOGICPM9500 PBT9500 Comprehensive Cover 2Days 3yrs

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
Area Imager
Light Source
Aiming: 630 - 670 VFD (Visible Laser Diode)
Illumination: LED Array
Scan Pattern
PM9530; 864 x 544 Pixels
PM9530HP; 1280 x 1024 Pixels
Scan Rate
Motion Tolerance
N/A
Image Capture
Graphic Formats: BMP, JPEG, TIFF
GreyScale: 256, 16, 2, JPEG, TIFF
Capture Area
N/A
Contrast Ratio
15% Minimum reflective difference
Resolution
PM9530; 1D 4 mil, 2D 7.5 mil
PM9530HP; 1D 2.5 mil, 2D 4 mil
Depth of field
PM9530;
4 mils - 6.0 to 17.0 cm
40 mils - 4.0 to 85 cm
Data Matrix: 10 mil - 4.0 to 18.0 cm
PDF417: 10 mil - 2.0 to 25.0 cm

PM9530HP
2.5 mils - 2.0 to 6.0 cm
40 mils - 3.0 to 110 cm
Data Matrix: 10 mil - 2.0 to 20.0 cm
PDF417: 10 mil - 2.0 to 30.0 cm
Performance may be impacted by Bar code quality and environmental conditions
Tilt Angle
360°
Pitch Angle
+/- 40°
Skew Angle
+/- 40°
Ambient Light Immunity
0 to100,000 Lux
Symbologies supported
1D:Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes

2D:Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code
Postal Codes: Australian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese
Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post

Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
Programming Method
Manual: Reads special bar codes
Automatic: Software commands through the RS-232 / USB interfaces
Datalogic Aladdin™: Windows configuration program
Driver available
JavaPOS, OPOS Utilities
Indicators/Controls
PM8500: No Display, 1 x Scan Key
PM8500-D: Display 4 Lines x 16 Collumns, 1 Scan Key & 3 Key Keypad
PM8500-DK: Display 4 Lines x 16 Collumns, 1 Scan Key & 16 Key Keypad
Beepers
Datalogic’s 3GL™ (Three Green Lights) technology and loud beeper for good read feedback
Datalogic ‘Green Spot’ on the Code
Dual good read LED's
Communication Type
Datalogic Star Cordless System™
Communication Technology
433.92 Mhz Radio
Effective radiated power: < 10mW
Range (open Air): up to 50 m
Seamless roaming
Two way communications
Point to Point or Multi-point configuration
up to 32 Scanners to a base
Interfaces
to base:
BC9030: RS232, KBW, USB, Wand Multi Interface
BC9160: RS232, KBW, USB, Wand, RS485 Multi Interface
BC9180: Industrial Ethernet
Supply Voltage
Battery: 2150 mAh Li-ion rechargeable
Charge time with external power supply: 4 Hours
Charge time with Host power: 10 Hours
Reads per full charge: 30,000+
Input Voltage for Charge/Communication Base: 10 -30 VDC
POT: 5 VDC +/-10%
Power Consumption
External Power Supply: 800 mA @ 10 VDC (Charging), 150 mA Typical Operation
POT: Max. 500mA
Drop Specification
Designed to withstand 50 x 2M drops to concrete
Environmental Sealing
IP65
ESD Protection
+/- 20 kV air discharge
Operating Environment
-20° ~ 50°C, Relative Humidity up tp 95% none condensing
Battery Charging: 0 to 45°C
Storage Environment
-40° ~ 70°C, Relative Humidity up tp 95% none condensing
EMC/Safety Standards
China RoHS, EU RoHS, Complies to R.E.A.C.H, CDRH Class II, IEC 60825 Class 2, IEC 62471 Class 1 LED
External Dimensions (WxDxH)
PM9500: 74 x 110 x 212 mm
Cradle: 95 x 240 x 108 mm
Weight
PM9500: 380 g
PM9500-D: 410 g
PM9500-DK: 414 g
Cradle: 380 g
  • select
