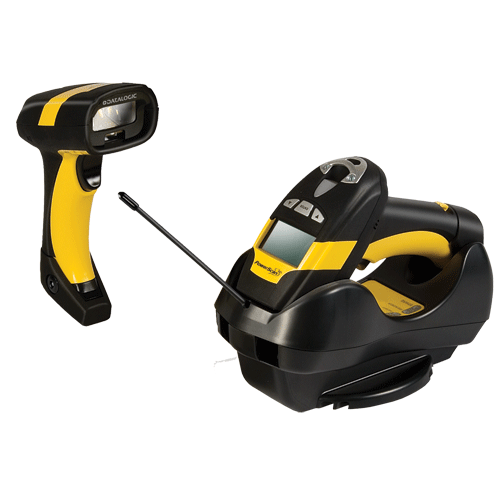

DATALOGIC PowerScan® 8300 Bluetooth Industrial Laser Scanner *** Obsolete ***

(Product may vary from image. Rely only on description for purchasing decisions.)

The PowerScan™ 8300 series of laser scanners are Datalogic ADC’s premium line of rugged industrial handheld data collection products for linear codes. The PowerScan PBT8300 laser scanner features the standard Bluetooth® wireless technology combined with the outstanding reliability and reading performance found in PowerScan products.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Bluetooth 2.0 Compliant: Class 1 or Class 2 configurable via software
  • Supports Bluetooth wireless technology SPP and HID profiles
  • Piconet with up to 4 scanners connected to the same base station
  • Optics available in Standard Range (contact up to 1.0 m / 3.3 ft) and Auto Range (20 cm / 8 in up to 12.5 m / 41.0 ft
  • Datalogic 3GL™ and loud beeper for good-read feedback
  • User replaceable lithium-ion battery
  • Water and particulate sealing rating: IP65/IP64
  • Drop resistance to 2.0 m
NameSizeDownload
Datasheet607kb dlpbt8300_datasheet.pdf
Product Reference Guide2,717kb dlps8300pbt_prg.pdf

Products available to purchase

 SKUVendorName
CAB-DL479 DATALOGICCAB-479 RS232 9P Female coiled 7.6m
AD-DL12VR40N2.1 DATALOGICPower Supply 12V 4.1A with power cord
AD-DL12VR DATALOGICPower supply 12v DC for Datalogic with Power Cable
DLPC8000 DATALOGICPowerScan 8xxx Protective Case & Belt Holster
DLPD7REEL DATALOGICPowerScan Industrial Take up Reel
DLHLS8000 DATALOGICPwrScan 8x Universal Holster
DLPS8000FBATT DATALOGICPwrScan M8x Fixed Battery Pack
DLPS8000RBATT DATALOGICPwrScan M8x Removable Battery
DLPS8000SPS DATALOGICPwrScan M8x Spare Battery Slot
CAB-DL433 DATALOGICRS232 DB9F cable1.8m Power inlet & Pin 9
CAB-DL524 DATALOGICUSB A Coiled cable for PM8300
CAB-DL438 DATALOGICUSB A Straight cable for PM8300 9500
CAB-DL436 DATALOGICWedge PS 2 Straight Cable

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
Laser
Light Source
Aiming: 630 - 680 VLD activated by double click trigger
Scan Pattern
Single Line
Scan Rate
35 +/- 5 scans/sec
Motion Tolerance
N/A
Contrast Ratio
15% Minimum reflective difference
Resolution
PD83x0: 0.076 mm / 3 mils
PD83x0AR: 0.190 mm / 7.5 mils
Depth of field
PBT83x0:
5 mils - 2.1 to 13.3 cm
7.5 mils - 3.5 to 24.2 cm
10 mils - 2.9 to 42.8 cm
13 mils - 2.3 to 55.1 cm
20 mils - 6.3 to 78.5 cm
40 mils - 2.5 to 97.8 cm

PBT83x0AR:
7.5 mils - 7.0 to 46.5 cm
10 mils - 10.8 to 85 cm
13 mils - 12.7 to 147.3 cm
20 mils - 7.0 to 215.9 cm
40 mils - 16.0 to 340 cm
55 mils - 0.2 to 4.1 m
Reflective 100 mils - 1.5 to 12.5 m
Performance may be impacted by Bar code quality and environmental conditions
Tilt Angle
+/- 20°
Pitch Angle
-55 to -5°- 5 to 55°
Skew Angle
+/- 60°
Ambient Light Immunity
Immume to light exposure in office/facilitie and direct exposure to sunlight
Symbologies supported
1D:Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes

Stacked Codes: Code 16K, Code 49, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectiona
Programming Method
Manual: Reads special bar codes
Automatic: Software commands through the RS-232 / USB interfaces
Datalogic Aladdin™: Windows configuration program
Indicators/Controls
PM8300: No Display, 1 x Scan Key
PM8300-D: Display 4 Lines x 16 Collumns, 1 Scan Key & 3 Key Keypad
PM8300-DK: Display 4 Lines x 16 Collumns, 1 Scan Key & 16 Key Keypad
Beepers
Datalogic’s 3GL™ (Three Green Lights) technology and loud beeper for good read feedback
Datalogic ‘Green Spot’ on the Code
Dual good read LED's
Communication Type
Bluetooth® Cordless
Communication Technology
Bluetooth 2.0 Certified Class 1 or 2 configurable, Radio frequency 2.4 to 2.48 GHz
Radio Range (open Air): Class 1 up to 90 m, Class 2 exceeds 40 m (with Base station)
Piconet, maximum readers per base:4
HID or Serial Profile
Security: Data encryption, Scanner Authentication
Interfaces
to base:
BC8030-BT: RS232, KBW, USB, Wand Multi Interface
Supply Voltage
Battery: 2150 mAh Li-ion rechargeable
Charge time with external power supply: 4 Hours
Charge time with Host power: 10 Hours
Reads per full charge: 50,000+
Input Voltage for Charge/Communication Base: 10 -30 VDC
POT: 5 VDC +/-10%
Power Consumption
External Power Supply: 1A @ 10 VDC (typical)
POT: 500mA
Drop Specification
Designed to withstand 50 x 2M drops to concrete
Environmental Sealing
PBT8300: IP65
PBT8300-D & PBT8300-DK: IP64
ESD Protection
20 kV
Operating Environment
-20° ~ 50°C, Relative Humidity up tp 90% none condensing
Storage Environment
-20° ~ 70°C, Relative Humidity up tp 90% none condensing
EMC/Safety Standards
The product meets necessary safety and regulatory approvals for its intended use.
Complete list in Quick Reference guide
Complies to EU RoHS
Laser Classification: CDRH Class II, IEC 60825-1 Class 2
External Dimensions (WxDxH)
PBT8300: 69 x 114 x 207 mm
PBT8300-D: 69 x 114 x 210 mm
PBT8300-DK: 69 x 114 x 210 mm
Cradle: 95 x 240 x 108 mm
Weight
PBT8300: 380 g
PBT8300-D: 410 g
PBT8300-DK: 410 g
Cradle: 380 g
