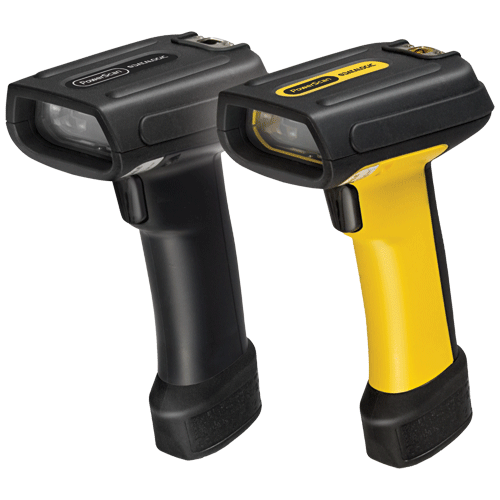

DATALOGIC PowerScan® 7100 D Industrial Linear Imager Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

The PowerScan 7100/7000 product series are Datalogic Scanning’s value line of rugged industrial handheld data collection products. The PowerScan D7100 linear imaging corded reader combines rugged durability and extremely snappy reading performance all at an affordable price.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Industrial Handheld Linear Imager
  • Datalogic ‘Green Spot’ and loud beeper for good read feedback
  • IP65 Rating: Water and particulate sealing
  • Supports GS1 DataBar™ codes
  • Drop resistance to 2.0 m / 6.5 ft
  • 25 kV Electrostatic protection (air discharge)
  • Model option with aimer for optimal code pointing
  • Two different multi-interface options
NameSizeDownload
Datasheet341kb dlps7100d_datasheet.pdf
Product Reference Guide1,257kb dlps7100d_prg.pdf

Products available to purchase

 SKUVendorName
AD-DL10VR08N DATALOGICPlug Pack 10V 800mA Ctr Neg 2.1mm plug
DLPD7PCOVER DATALOGICPowerScan 7x Powerhood padded
DLPD7REEL DATALOGICPowerScan Industrial Take up Reel
CAB-DL433 DATALOGICRS232 DB9F cable1.8m Power inlet & Pin 9
CAB-DL524 DATALOGICUSB A Coiled cable for PM8300
CAB-DL438 DATALOGICUSB A Straight cable for PM8300 9500
CAB-DL436 DATALOGICWedge PS 2 Straight Cable

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
1D linear Imager
Light Source
Aiming: 630 - 680 nm VLD (Visible LED Diode)
Illumination: LED Array 630-670 nm
Scan Pattern
Single Line
Scan Rate
390 Scans/sec
Motion Tolerance
N/A
Image Capture
N/A
Capture Area
N/A
Contrast Ratio
15% Minimum reflective difference
Resolution
0.076 mm, 3 mils
Depth of field
5 mils - 1.5 to 14 cm
7.5 mils - 0 to 44 cm
10 mils - 0 to 60 cm
13 mils - 0 to 80 cm
20 mils - 0 to 119 cm
40 mils - 2.0 to 240 cm
Reflective 55 mils - 5.0 to 300 cm
Reflective 100 mils - 13 to 530 cm
Performance may be impacted by Bar code quality and environmental conditions
Tilt Angle
+/-30°
Pitch Angle
+/- 65°
Skew Angle
+/- 65°
Ambient Light Immunity
0 to100,000 Lux
Symbologies supported
1D:Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes

Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectiona; UPC A/E Composites
Programming Method
Manual: Reads special bar codes
Automatic: Software commands through the RS-232 / USB interfaces
Datalogic Aladdin™: Windows configuration program
Indicators/Controls
Beeper (adjustable Tone)
Datalogic ‘Green Spot’ on the Code;
Good read LED's
Communication Type
Cabled
Interfaces
USB, Keyboard Wedge & RS232 Multi Interface
Also version available for IBM46xx Interface
Supply Voltage
4 -14 VDC
Power Consumption
285 mA @ 5 VDC (typical)
135 mA @ 5 VDC (typical)
Drop Specification
Designed to withstand 50 x 2 m drops to concrete
Environmental Sealing
IP65
ESD Protection
25 kV
Operating Environment
-30° ~ 55°C, Relative Humidity up tp 95% none condensing
Storage Environment
-40° ~ 70°C, Relative Humidity up tp 95% none condensing
EMC/Safety Standards
The product meets necessary safety and regulatory approvals for its intended use.
Complete list in Quick Reference guide
External Dimensions (WxDxH)
76 x 114 x 203 mm
Weight
280 g
