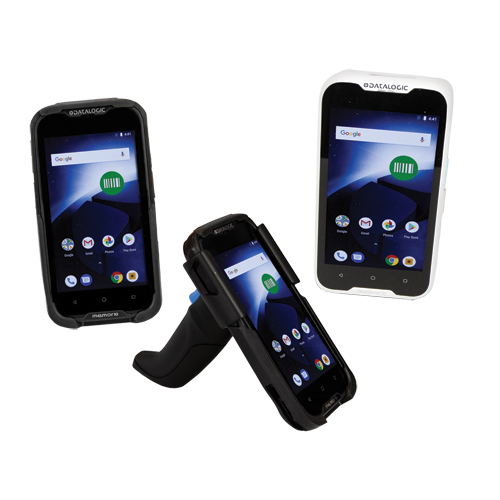

DATALOGIC Memor™ 10 Portable Data Terminal Series

(Product may vary from image. Rely only on description for purchasing decisions.)

The superior performance of this Android™ full touch PDA is able to support a multitude of applications in various environments. The Memor 10 PDA brings the power and performance of a smartphone with the user-friendly experience of Android in a slim and compact device with an integrated 2D imager. It also incorporates Datalogic’s industry-first wireless charging system for ultra-reliable contactless charging, paired with a 1-piece swappable battery for the best operating advantage

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Ultra-Ergonomic, compact and robust
  • 5 inch capacitive multi-touch HD display with Dragontrail™ hardened glass
  • Android 8.1 (Oreo) with Google Mobile Services
  • Wireless charging eliminates all contacts on the device and cradle
  • Ruggedized with drop resistance to 1.5m / 5ft to concrete and IP65 sealing
  • Dual band Wi-Fi including the latest 802.11ac standard and 802.11r/k for fast roaming
  • Full suite of cellular connectivity for voice and data, featuring LTE-Advanced/4G+
  • Assisted GPS for location based apps
  • Bluetooth v4.2 short range wireless technology
  • NFC for proximity communications
  • Advanced 2D ultra-slim imager with Datalogic’s patented ‘Green Spot’ technology for visual goodread feedback
  • Datalogic’s SoftSpot™ technology for innovative triggering through the touch display
  • Chemical resistant plastics / enclosure designed to withstand daily cleaning with harsh disinfectant solutions
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment
NameSizeDownload
Memor10 Brochure297kb MEMOR10_brochure.pdf
Memor10 Healthcare Brochure292kb MEMOR10HC_brochure.pdf
User Manual3,374kb memor10_ume.pdf

Products available to purchase

 SKUVendorName
DLMM10HC-C2-BN4A DATALOGICMemor 10 HC PDT BT WIFI 4G 2D Scn Android 8.1
DLMM10-C2-BN4A DATALOGICMemor 10 PDT BT WIFI 4G 2D Scn Android 8.1
AD-DLMM10DC DATALOGICPower Supply for Docks & Chargers MEMOR 10
AD-DLMM10U DATALOGICPower Supply for the MEMOR 10
DLMM10-QBCHG DATALOGICQuad Battery Charger for the MEMOR 10
DLMM10-RBOOT DATALOGICRubber Protection Boot for MEMOR 10
DLMM10HC-RBOOT DATALOGICRubber Protection Boot for MEMOR 10 HC
DLMM10-DCBASE DATALOGICSingle Slot Dock for the MEMOR10
DLMM10-STBATT DATALOGICStandard Battery for the MEMOR 10 Black
DLMM10-TRHANDLE DATALOGICTrigger Handle for MEMOR10
DLMM10-TRBASE DATALOGICTripple Slot Dock for MEMOR 10
DLZSC2MEM1031 DATALOGICMemor 10 EoC 2 Days 3 Years Comprehensive
DLZSC5MEM1031 DATALOGICMemor 10 EoC 5 Days 3 Years Comprehensive

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Processor
Octacore 2 GHz
Real-time Clock
3 Axis accelerometer to detect orientation
Gyroscope to sense angular velocity
Operating Platform
Android 8.1 (Oreo) with GMS
Development Environment
Java and Xamarin SDK available
Software Utilities
Applications:
Datalogic’s SoftSpot technology for configurable soft triggers; Supports Datalogic’s Queue Busting app; Pre-licensed device and browser lockdown powered by 42Gears; Enterprise class PTT offered by Zello
Provisioning: Android Zero Touch enrollment and QR code or NFC Bump Provisioning
Config & Maintenance: Datalogic DXU for device configuration and firmware upgrade from PC
MDM: SOTI MobiControl, VMWare AirWatch, Wavelink Avalanche, 42Gears SureMDM
Terminal Emulation: StayLinked SmartTE, Wavelink Velocity
Memory
eMMC Flash: 32 GB Flash Disk
System RAM: 3 GB
Memory Expansion
Micro-SD card slot: Compatible with Micro SD-HC cards; Data transfer up to 48 Mbps; User-accessible
SIM SLOT MicroSIM Standard size
Scan Options
Advanced 2D ultra slim area imaging technology with image capture
Good-Read Feedback: Datalogic’s patented ‘Green Spot’ technology
Depth of Field: 8.5 to 50.0 cm, depending on bar code density type;
Resolution: VGA (640 x 480 pixels)
Illumination: White LED's
Aiming: 650nm VLD
Field of View: 48º H x 34º V
Print Contrast: Min. 25%
Minimum Element width:
1D Linear; 0.0762 mm / 4 mils
PDF; 0.127 mm / 6.6 mils
Data Matrix; 0.195 mm / 7.5 mils
Symbologies supported
1D/Linear Codes: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D Codes: Aztec Code, Data Matrix, HanXin Code, MaxiCode, MicroQR Code, QR Code, UPU FICS
Postal Codes: Australian Post, Japan Post, KIX Code, PLANET, POSTNET, Royal Mail Code (RM4SCC),USPS Intelligent Mail
Stacked Codes: Micro-PDF417, PDF417, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional
Keyboards
Physical Keys: 2 side scan keys; Power On/Off; Volume Up/Down
3 user programmable Android™ keys
Audio
Speaker (Polyphonic)
Vibration (Software Programable)
Display
5 inch IPS HD resolution 720 x 1280; LED backlight; Touch Screen: 5 points multi-touch capacitive panel with Dragontrail hardened glass.
Ambient Light Sensor: auto adjusts display backlight
Proximity sensor: auto deactivates display when close to face
Camera
Resolution: 13 megapixel; Illumination: User controllable LED flash; Lens: Auto focus
I/O Ports
High Speed USB 2.0 Host and Client with USB Type C connector
Radio Options
Local Area Network (WLAN)
IEEE 802.11 a/b/g/n/ac and 802.11 k/r/v; Frequency range: Country dependent, typically 2.4 GHz and 5 GHz bands
Personal Area Network (WPAN)
Bluetooth wireless technology v4.2 (Classic Bluetooth wireless technology and BLE)
NFC Communication Support for the following standards: ISO14443-4 (type-A, type-B); ISO15693; Mifare; Felica
WWAN / Cellular
LTE-Advanced / 4G+; Cat 6
EMEA and ROW Configuration: GSM: Quad band; CDMA: BC0; WCDMA: B1/5/8; FDD_LTE:B1/3/5/7/8/20/28; TDD_LTE:B38/39/40/41
Global Positioning System (GPS)
Integrated Assisted-GPS (A-GPS) Supported Types: GPS, GLONASS, BeiDou
Battery
Replaceable battery pack with rechargeable Li-Ion batteries; 3.8 V; 4,100 mAh
Wireless charging:
Qi Compliant; 10 Watt fast charging
Battery Life
15.6 Watt hours
Drop Specification
Drop Resistance
Withstands drops from 1.5 m onto concrete (with rubber boot);
Withstands drops from 1.2 m onto concrete (without rubber boot).
Tested onto steel/concrete according to IEC 68-2-32 Method 2 and MIL STD 810G Transit drop test.
Tumbles
Withstands 1000 hits from 0.5 m and 250 hits from 1.0 m per IEC 600-2-32 with rubber boot;
Withstands 600 hits from 0.5 m per IEC 600-2-32 without rubber boot
Environmental Sealing
IP65
Chemical Resistance: Chemical cleanser and industrial oil resistant (both Standard and Healthcare models)
Healthcare Cleanable: Isopropyl Alcohol, Hydrogen Peroxide, Clorox® Bleach;applicable for both the device and cradles
ESD Protection
Operating Environment
-20 to 50 ºC
Storage Environment
-30 to 70 ºC
EMC/Safety Standards
Agency Approvals: The product meets necessary safety and regulatory approvals for its intended use.
Environmental Compliance: Complies to EU RoHS
External Dimensions (WxDxH)
15.5 x 7.8 x 1.87 cm
Weight
285.0 g with battery
