DATALOGIC Memor™ 1 Portable Data Terminal Series

(Product may vary from image. Rely only on description for purchasing decisions.)

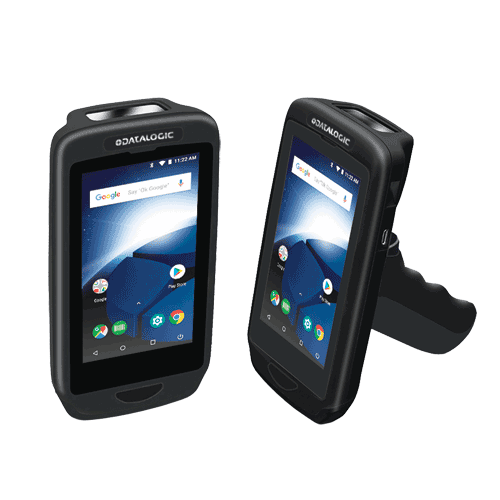

MEMOR™ 1 - THE NEW DATALOGIC GENERAL PURPOSE FULL TOUCH DEVICEMemor 1 is your business companion for any data capture application, from assisted sales to the shop floor, or back-end receiving to the warehouse.The Memor 1 device comes with a powerful Qualcomm Snapdragon platform and features Android™ 8.1 (Oreo) with GMS. This device is available in two form factors: a hand held version resembling a rugged smartphone or a pistol-grip version with a comfortable trigger.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Multi-purpose device: hand held or pistol-grip
  • Android 8.1 (Oreo) with Google Mobile Services (GMS)
  • Wireless charging eliminates all contacts on the device and dock
  • Supports both Boost and Fast charging modes
  • VoIP or PTT phone capabilities over Wi-Fi
  • Presentation mode allows hands-free scanning
  • Datalogic’s SoftSpot™ technology for innovative triggering through the touch display
  • 3-Axis Accelerometer auto-rotates the screen orientation
  • 4.3 inch capacitive multi-touch FWVGA display with Gorilla® Glass 3
  • Vibration alert for notifications
  • Advanced 2D imaging technology with image capture
  • Datalogic’s patented ‘Green Spot’ technology for visual good-read feedback
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
NameSizeDownload
Brochure314kb MEMOR1_brochure.pdf

Products available to purchase

 SKUVendorName
DLMM1-C2-BNAKIT DATALOGICMEMOR 1 PDT BT Wifi 2D Scn A8.1 Chrg Cradle
DLMM1G-C2-BNAKIT DATALOGICMEMOR 1 PistolG PDT BT Wifi 2D Scn A8.1 Chg Cradle

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Processor
Qualcomm Snapdragon Quadcore 1.1GHz
3 Axis accelerometer to detect orientation
Gyroscope & Magnetometer to sense angular velocity
Operating Platform
Android 8.1 (Oreo) with GMS
Development Environment
Java and Xamarin SDK available
Software Utilities
Applications:
Datalogic’s SoftSpot technology for configurable soft triggers; Supports Datalogic’s Queue Busting app; Pre-licensed device and browser lockdown powered by 42Gears; Enterprise class PTT offered by Zello
Provisioning: Android Zero Touch enrollment
Config & Maintenance: Datalogic DXU for device configuration and firmware upgrade from PC
MDM: SOTI MobiControl, VMWare AirWatch, Wavelink Avalanche, 42Gears SureMDM
Terminal Emulation: StayLinked SmartTE, Wavelink Velocity
Memory
System Flash: 16 GB Flash Disk
System RAM: 2 GB
Memory Expansion
SD Card: Factory Installed option
Scan Options
Advanced 2D imaging technology with image capture
Depth of Field: 4.3 to 35.0 cm, depending on bar code density; Minimum Resolution: Linear codes at 4 mils; 2D codes at 5 mils; Good-Read Feedback: Datalogic’s patented ‘Green Spot’ technology
Symbologies supported
1D / LINEAR CODES: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D CODES: Aztec Code, Data Matrix, Maxicode, QR Code, Micro QR Code, MicroPDF417, PDF417
POSTAL CODES: Australian Post, Japanese Post, KIX Post; Planet Code, Postnet, Royal Mail Code, USPS Intelligent Mail, USPS PLANET, USPS POSTNET
Keyboards
Handheld: Home/scan fully programmable key
Pistol-Grip: Home/scan fully programmable key, Scan Trigger key
Audio
Speaker (Polyphonic)
Vibration (Software Programable)
Display
4.3 inch full touch TFT-LCD color display; FWVGA: 854 x 480 pixels; 16M colors, LED backlight, Capacitive, multi-touch, Gorilla® Glass 3
Camera
N/A
I/O Ports
USB 2.0 Client (with standard Micro-USB connector)
SDXC card slot (not user accessible)
Radio Options
Local area network (WLAN): IEEE 802.11 a/b/g/n
Wi-Fi Security Standards: WEP, WPA/WPA2 PSK, 802.1x
EAP Methods: PEAP/MSCHAPV2, PEAP/GTC, TLS, TTLS/PAP, TTLS/MSCHAP, TTLS/ MSCHAPV2, TTLS/GTC, PWD
Personal area network (WPAN)
Bluetooth® wireless technology v4.0 - Dual Mode, supporting Classic Bluetooth and BLE
Ncf Communication
NFC communication between device and dock
Battery
Replaceable battery pack with rechargeable Li-Ion batteries; 3.7 V; 3,000 mAh
Wireless charging
Two charging options: Fast charging or Standard charging
Battery Life
12 Watt hours
Drop Specification
Withstands repeated drops from 1.2 m onto plywood over concrete
With the rubber boot accessory 1.5 m onto plywood over concrete
Environmental Sealing
ESD Protection
Operating Environment
-10 to 50 ºC
Storage Environment
-10 to 50 ºC
EMC/Safety Standards
Agency Approvals: The product meets necessary safety and regulatory approvals for its intended use.
Environmental Compliance: Complies to EU RoHS
External Dimensions (WxDxH)
Handheld: 14.5 x 7.7 x 3.4 cm
Pistolgrip; 14.5 x 7.7 x 11.6 cm
Weight
Handheld: 275.0 g
Pistolgrip; 305.0 g
