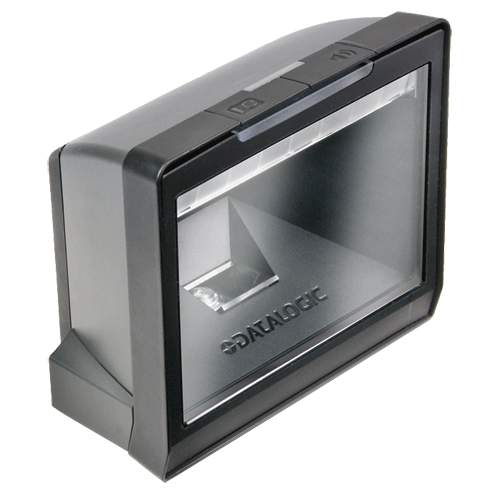

DATALOGIC Magellan® 3200VSi Series Omni-directional Imaging Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

The Magellan™ 3200VSi bar code reader brings Datalogic’s new imaging technology to the high-volume point-of-sale. It is the first bar code scanner to duplicate the speed and wide field-of-view of high-performance omnidirectional laser scanners while adding the benefits associated with imaging. This imaging technology provides outstanding performance when capturing hard-to-read bar codes such as truncated (short), out-of-spec, poorly printed and GS1 DataBar™ codes, and provides support for both linear (1D) and 2D label decoding. The Magellan 3200VSi imager enables both sweep and presentation scanning techniques ensuring maximum productivity and ergonomic ease.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Datalogic's high performance Imaging Technology
  • Linear and/or 2D bar code reading
  • Solid-state electronics
  • Software driven – flexible and upgradeable
  • Micro SD card slot
  • Multiple interfaces in every unit
  • RS-232 auxiliary port
  • Image capture
  • Illumix™ intelligent illumination technology reads bar codes from mobile phones or PDAs
  • Supports GS1 DataBar™ codes
NameSizeDownload
Datasheet230kb dlm3200vsi_brochure.pdf

Products available to purchase

 SKUVendorName
DLM3200V1E-R DATALOGICMagellan 3200VSi 1D with RS232 Cable
DLM3200V1E-U DATALOGICMagellan 3200VSi 1D with USB Cable
DLM3200V2E-R DATALOGICMagellan 3200VSi 2D with RS232 Cable
DLM3200V2E-U DATALOGICMagellan 3200VSi 2D with USB Cable
AD-DL10VR08N DATALOGICPlug Pack 10V 800mA Ctr Neg 2.1mm plug
CAB-DLM32R DATALOGICRS232 Cable for Magellan 3200 3300
CAB-DLM32U DATALOGICUSB Cable for Magellan 3200 3300

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
MS7820MS-7820 Solaris™  Vertical Mini-Slot Presentation Scanner
VS2200Magellan® 2200VS Vertical Omni-directional Presentation Scanner

Parts documents

Parts layout details

Specifications
Scan Engine
Area Imager
Light Source
Multiple diffused 625 nm LED's
Scan Pattern
1280 x 1024
Scan Rate
Max. 39 million pixels per second
Image Capture
Graphic Formats: BMP, JPG, Greyscale 256, 16, 2
Capture Area
1280 x 1024
Contrast Ratio
Min. 25%
Resolution
5 mil
Depth of field
Read Height 14 cm
Tilt Angle
0 - 360°
Pitch Angle
+/- 65°
Skew Angle
+/- 75°
Ambient Light Immunity
0 - 86100 lux
Symbologies supported
1D: Auto discriminates all standard 1D codes including GS1 Databar™ linear codes
2D(optional): Aztec Codes; DataMatrix (ECC200 only); Maxicode; QR Code; GS1 Databar™ Stacked Codes; GS1 Databar™ Omni Directional Stacked Codes; MicroPDF417; PDF417
Programming Method
Magellan On-Screen Programming (OSP) configuration software is
available for download at no charge.
Remote Host Download
Driver available
JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge.
Indicators/Controls
Green LED for good read
Beeper (adjustable Tone & Volume)
Interfaces
IBM 46XX, RS232, IBM USB, USB Keyboard, USB COM, Keyboard Wedge
I/O Ports
Powered RS232 Aux. Port
EAS: Checkpoint Systems: Integrated Hardware will work with Counterpoint IV, V, VI & VII models
Sensormatic: Good read acknowledgement
Micro-SD card reader to help with software maintenance and upgrades
Supply Voltage
AC Input: 90-264 VAC, 47-63 Hz
Output; 10V 800mA
Power Consumption
Max 8.75 Watts, nominal 2.8 Watts, Sleep mode 2.0 Watts
ESD Protection
25 kV
Operating Environment
0 ~ 40 °C
RH: 5-95% Non Condensing
Storage Environment
-40 ~ 70 °C
RH: 5-95% Non Condensing
EMC/Safety Standards
C-Tick; EN60825-1 Class 1 LED; IEC 60825-1 Class 1 LED Product
External Dimensions (WxDxH)
14.2 x 15.2 x 8.2 cm
Weight
0.6 Kg
