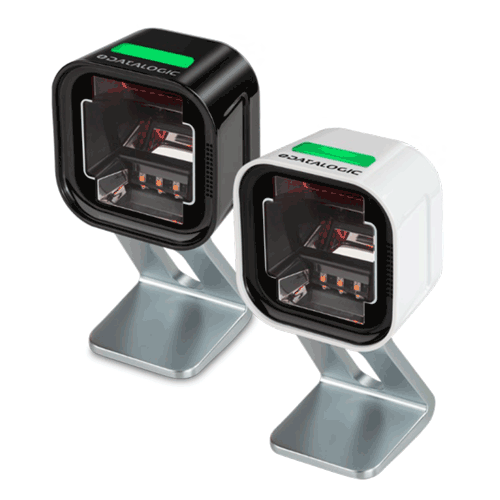

DATALOGIC Magellan™ 1500i Omni-directional Imager Presentation Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

The Magellan 1500i omnidirectional presentation scanner is a versatile and stylish addition to any point of sale. With Datalogic’s latest digital imaging technology, it seamlessly decodes both 1D and 2D bar codes on everything from printed product labels to mobile coupons, loyalty cards, tickets and boarding passes.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Omni-directional Imaging Presentation Scanner
  • Advanced digital imaging provides class-leading performance and reliability
  • Seamlessly reads 1D and 2D bar codes, whether printed or displayed on mobile phone, laptop or tablets
  • Optional Digimarc® Barcode decoding
  • Subtle, adaptive illumination for user comfort
  • Compact, ergonomic design is ideal for hands-free or hand held operations
  • LED aimer for precision scanning of Price Look Up (PLU) lists or small items
  • Datalogic’s ‘Green Spot’ technology for good-read feedback
  • Image capture
  • Adjustable stand
  • Available interfaces: RS-232 or USB, OEM• Checkpoint® Systems EAS and Interlock Compatible
  • Easily monitored and updated via Remote Management, Scanalyzer™, Aladdin™ or programming guides
  • EASEOFCARE Service Plans offer a wide ange of service options to protect your investment, ensuring maximum productivity and ROI
NameSizeDownload
Brochure231kb mgl1500i_brochure.pdf

Products available to purchase

 SKUVendorName
DLM1500TSB-U DATALOGICMGL1500i Black with Tilting Stand & USB Cable
DLM1500TMB-U DATALOGICMGL1500i Black with Tilting Stand Magnet & USB Cable

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
COBALTOC0balto® CO-5300 Series Omin-directional Laser Scanner
MS3780MS3780 Fusion Omni-directional Scanner

Parts documents

Parts layout details

Specifications
Scan Engine
Area Imager
Light Source
Subtle adaptive illumination
LED Aimer
Scan Pattern
N/A
Scan Rate
N/A
Image Capture
1 MP; 1280 x 800 pixels
Graphic Formats: JPEG, BMP
Capture Area
1280 x 800 Pixels
Contrast Ratio
Min. 25%
Resolution
0.130 mm / 5 mil
Depth of field
1D/Linear Codes:
5 mils - 2.5 to 9.0 cm
7.5 mils - 0 to 17.0 cm
10 mils - 0 to 21 cm
13 mils UPC - 0 to 25.0 cm
20 mils - 1.0 to 30.0 cm
2D Codes:
Data Matrix: 13 mils - 0 to 17.0 cm
Data Matrix: 24 mils - 0 to 25.0 cm
PDF417: 6.5 mils - 2.5 to 11.0 cm
PDF417: 16 mils - 0 to 20.0 cm
Performance may be impacted by Bar code quality and environmental conditions
Tilt Angle
0 - 360°
Pitch Angle
+/- 65°
Skew Angle
+/- 75°
Ambient Light Immunity
0 - 86100 lux
Symbologies supported
1D: Auto discriminates all standard 1D codes including GS1 Databar™ linear codes
2D: Aztec Codes; DataMatrix; Maxicode; QR Code; GS1 Databar™ Stacked Codes; GS1 Databar™ Expanded Stacked Codes; GS1 Databar™ Omni Directional Stacked Codes; MicroPDF417; PDF417
Postal Codes: Australian Post; British Post; Canadian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post
Digital Watermarks: Optional Support for Digimarc®/GS1 DW Code
Programming Method
Either Aladdin or Scanalyzer can be used for scanner configuration. Both are available for downlaod at no charge
Driver available
JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge.
Indicators/Controls
Datalogic 'green Spot' good read feedback, Good read LED
Beeper (adjustable Tone & Volume)
Interfaces
USB Keyboard; USB COM; OEM (IBM) USB; RS-232
I/O Ports
N/A
Supply Voltage
Input Voltage: 5.0 VDC +/- 10%
Power Consumption
Operating Typical <500mA
Standby/Idle Typical <300mA
ESD Protection
25 kV
Operating Environment
0 ~ 40 °C
RH: 5-95% Non Condensing
Storage Environment
-40 ~ 70 °C
RH: 5-95% Non Condensing
EMC/Safety Standards
The product meets necessary safety and regulatory approvals for its intended use.The Quick Reference Guide for this product can be referred to for a complete list of certifications
Complies to China RoHS; Complies to EU RoHS
LED Classification: EN62471 and IEC62471 Lamp Illumination
External Dimensions (WxDxH)
with Tilting Riser Stand: 6.0 x 7.5 x15.0 cm
Weight
with Tilting Riser Stand: 240g
