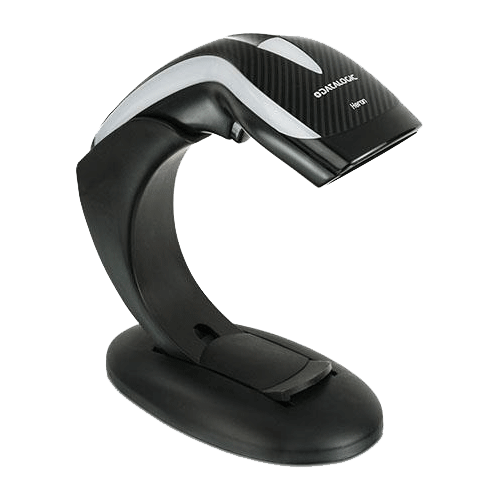

DATALOGIC Heron™ HD-3100 Series Linear Imager Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

The Heron™ HD-3100 linear imager brings unmatched elegance along with the latest advanced technology to the modern point-of-sale. The stylish silhouette of the new imager enriched with multiple colour changing lights, innovative and modern design material, together with the audio speaker, amplifies the customer's brand experience at the point-of-sale.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
60 months
  • Handheld Linear Imager Scanner
  • Innovative and unique design raises the bar for cutting-edge POS checkout experience
  • In-mold decorated top cover - Choice of Carbon-Fibre or Silver designs
  • Multiple changing colour LED's on sides and top
  • Polyphonic speaker for a wide variety of choices for audio feedback
  • Easily customized with logo, top cover, and visual/audio feedback
  • Datalogic patented 'Green Spot' technology for aiming and good-read feedback
  • Automatic switching between handheld and hands-free operation
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
NameSizeDownload
Brochure98kb dl_hd3100_brochure.pdf
Product Reference Guide10,276kb dlhd3130_prg.pdf
Quick Reference Guide1,149kb dlhd3130_qrg.pdf
Datalogic Aladdin Configuration Utility43,917kb DL_SU-ALADDINv16006.zip

Products available to purchase

 SKUVendorName
DLHD3130BKIT-U DATALOGICHeron HD-3130 1D Scanner with Stand & USB Cable
DLHD3130BKIT-RP9 DATALOGICHeron HD-3130 with stand & RS232 Pwr Pin 9 Cable
CAB-DL350 DATALOGICCable RS232 Straight Power P9 and RPE
CAB-DL362 DATALOGICRS232 Coiled Cable - DB9F with Power Inlet

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
CCD Solid State
Light Source
Visible Red LED 617 nm
Scan Pattern
Single Line
Scan Rate
Up to 270 Reads/sec
Contrast Ratio
15% minimum reflective difference
Resolution
Minimum 0.100mm/4 mils
Depth of field
5 mils: 5.0 to 15.0 cm
10 mils: 2.0 to 35.0 cm
13 mils: 2.0 to 40.0 cm
20 mils: 2.0 to 60.0 cm
(CODE 39, PCS 90%)
Performance may be impacted by Bar code quality and environmental conditions
Tilt Angle
N/A
Pitch Angle
N/A
Skew Angle
N/A
Ambient Light Immunity
0 ~ 100000 Lux
Symbologies supported
Linear codes: Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes
Stacked Codes: GS1 DataBar Expanded Stacked, GS1 DataBar Stacked and GS1 DataBar® Stacked Omni-directional
Programming Method
Manual: Reading special bar codes
Automatic: (with RS-232) S/W commands through the serial port
ALADDIN™: Windows configuration program
Driver available
JavaPOS, OPOS Utilities
Indicators/Controls
Scanner Indicators:
Good Read LED
Side and upper illumination
"Green spot" on the code
Adjustable Tone & Volume beeper
Operating Modes
Trigger, Auto-trigger
Communication Type
Corded
Interfaces
USB, RS232, Keyboard Wedge Multi Interface
Supply Voltage
5 VDC +/- 5%
Power Consumption
Operating (Maximum): <500 mA @ 5 VDC
Operating (Typical): <300 mA @ 5 VDC
Drop Specification
Withstands repeated drops from 1.5 m onto concrete
Environmental Sealing
IP40
ESD Protection
Functional after 16kV Air discharge
Operating Environment
0 to 50 °C
RH 5% ~ 90% non condensing
Storage Environment
-20 ~ 70 °C
RH 5% ~ 90% non condensing
EMC/Safety Standards
EU RoHS, China RoHS Complient
IEC 62471 Exempt Class
External Dimensions (WxDxH)
Scanner: 68 x 153 x 152mm
Weight
150g
