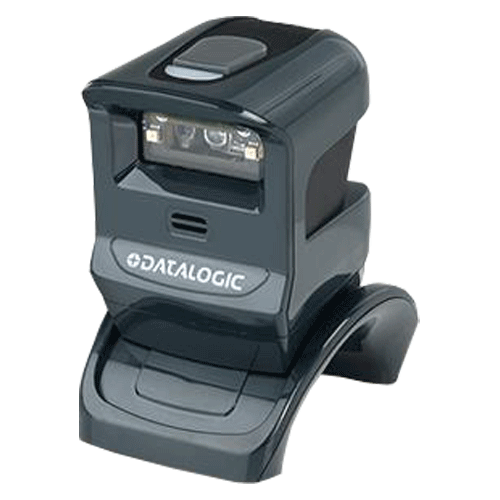

DATALOGIC GRYPHON I GPS-4421 2D Imaging Presentation Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

The Gryphon™ GPS4421 scanner is Single interface version of the GPS4490. The GPS4421 scanner offers all the capabilities and performances of the Gryphon GD4400 handheld scanner but in a presentation-style shape. It allows hands-free scanning of small and easily handled items as well as handheld scanning operation for bulkier items.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • USB HID Interface only
  • Snappy omni-directional reading
  • Intuitive aiming system
  • Compact, ergonomic design is ideal for hands-free or handheld operation
  • Illumination system optimized to allow easy reading of bar codes from mobile phones, laptops or PDAs
  • Image capture
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
NameSizeDownload
Datasheet325kb dlgps4490_datasheet.pdf
Product Reference Guide7,646kb dlgps44xx_prg.pdf
Quick Reference Guide1,539kb dlgps44xx_qrg.pdf
Datalogic Aladdin Configuration Utility43,917kb DL_SU-ALADDINv16006.zip

Products available to purchase

 SKUVendorName
DLGPS4421B-U DATALOGICGryphon GPS-4421 2D Scanner with USB Cable
CAB-DLCOBUSB DATALOGICStraight USB Cable for Cobalto HD3130 QM Black

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
Area Imager
Light Source
Illumination: 625nm LED
Aiming: 650 nm VLD
Scan Pattern
752 x 480 Pixels
Scan Rate
Motion Tolerance
25 IPS
Image Capture
Graphic Formats: BMP, JPEG, TIFF
GreyScale: 256, 16, 2, JPEG, TIFF
Capture Area
Field of View: 40° H x 26° V
Contrast Ratio
25% Minimum reflective difference
Resolution
Standard Range (SR):
1D Linear Max. 0.102mm / 4 mils
Datamatrix 0.178mm / 7 mils
Depth of field
Code 39: 5 mils - 2.6 to 18.8 cm
Code 39: 10 mils - 0.0 to 37.9 cm
Data Matrix: 10 mils - 2.3 to 14.5 cm
Data Matrix: 15 mils - 0.0 to 23.2 cm
EAN 13: 13 mils - 0.8 to 42.2 cm
PDF417: 10 mils - 0 to 22.4 cm
QR Code: 10 mils - 2.3 to 14.3 cm
Performance may be impacted by Bar code quality and environmental conditions
Tilt Angle
180°
Pitch Angle
+/- 40°
Skew Angle
+/- 40°
Ambient Light Immunity
0 - 100,000 Lux
Symbologies supported
1D:Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes

2D:Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code
Postal Codes: Australian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese
Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post

Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
Programming Method
Manual: Reads special bar codes
Automatic: Software commands through the RS-232 / USB interfaces
Datalogic Aladdin™: Windows configuration program
Remote Host Download (Lowers service costs and improves operations)
Driver available
JavaPOS, OPOS Utilities
Indicators/Controls
Scanner Indicators:
Good Read LED
"Green spot" on the code
Adjustable Tone & Volume beeper
Communication Type
Corded
Interfaces
USB only version
Supply Voltage
5 VDC +/-5%
Power Consumption
Typical 175 mA, Max. 400 mA
Drop Specification
Withstands repeated drops from 1.2 m onto a concrete surface
Environmental Sealing
IP52
ESD Protection
+/- 16 kV air discharge
Operating Environment
0° ~ 40°C, Relative Humidity 0 - 95% none condensing
Storage Environment
-40° ~ 70°C, Relative Humidity 0 - 95% none condensing
EMC/Safety Standards
Complies to EU RoHS
CDRH Class II, EN 60825-1 Class 2, IEC 60825 Class 2
External Dimensions (WxDxH)
Scanner only : 64 x 74 x 95mm
Scanner with Stand: 73 x 121 x 107mm
Weight
Scanner only : 178g
Scanner with Stand: 295g
