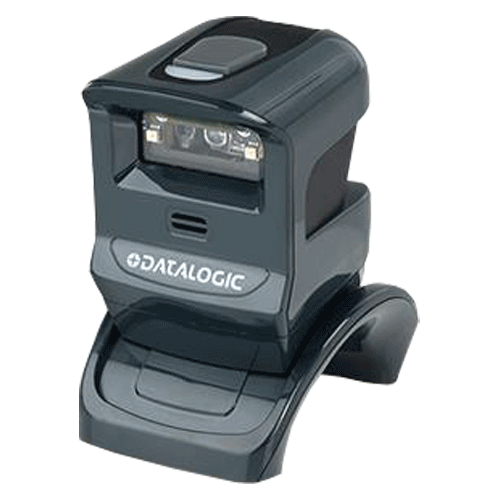

DATALOGIC GRYPHON I GPS-4400 2D Imager Presentation Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

The Gryphon™ GPS4490 scanner is a presentation scanner in a stylish body available in white or dark grey. The GPS4490 scanner offers all the capabilities and performances of the Gryphon GD4400 handheld scanner but in a presentation-style shape. It allows hands-free scanning of small and easily handled items as well as handheld scanning operation for bulkier items.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Snappy omni-directional reading
  • Intuitive aiming system
  • Compact, ergonomic design is ideal for hands-free or handheld operation
  • Illumination system optimized to allow easy reading of bar codes from mobile phones, laptops or PDAs
  • Image capture
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
NameSizeDownload
Datasheet325kb dlgps4490_datasheet.pdf
Product Reference Guide7,646kb dlgps44xx_prg.pdf
Quick Reference Guide1,539kb dlgps44xx_qrg.pdf
Datalogic Aladdin Configuration Utility43,917kb DL_SU-ALADDINv16006.zip

Products available to purchase

 SKUVendorName
DLGPS4490B DATALOGICGryphon GPS4490 2D Scanner
DLGPS4490B-U DATALOGICGryphon GPS4490 2D Scanner with USB Cable
CAB-DL350 DATALOGICCable RS232 Straight Power P9 and RPE
CAB-DLG4SU DATALOGICCable USB A Enhanced Str Power Off Terminal
CAB-DL362SMAG DATALOGICRS232 Cable for Gryphon to Plug into Magellan SCSC
CAB-DL362 DATALOGICRS232 Coiled Cable - DB9F with Power Inlet

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
MS7120MS-7120 Orbit® Omni-directional Presentation Scanner

Parts documents

Parts layout details

Specifications
Scan Engine
Area Imager
Light Source
Illumination: 625nm LED
Aiming: 650 nm VLD
Scan Pattern
752 x 480 Pixels
Scan Rate
Motion Tolerance
25 IPS
Image Capture
Graphic Formats: BMP, JPEG, TIFF
GreyScale: 256, 16, 2, JPEG, TIFF
Capture Area
Field of View: 40° H x 26° V
Contrast Ratio
25% Minimum reflective difference
Resolution
Standard Range (SR):
1D Linear Max. 0.102mm / 4 mils
Datamatrix 0.178mm / 7 mils
Depth of field
Code 39: 5 mils - 2.6 to 18.8 cm
Code 39: 10 mils - 0.0 to 37.9 cm
Data Matrix: 10 mils - 2.3 to 14.5 cm
Data Matrix: 15 mils - 0.0 to 23.2 cm
EAN 13: 13 mils - 0.8 to 42.2 cm
PDF417: 10 mils - 0 to 22.4 cm
QR Code: 10 mils - 2.3 to 14.3 cm
Performance may be impacted by Bar code quality and environmental conditions
Tilt Angle
180°
Pitch Angle
+/- 40°
Skew Angle
+/- 40°
Ambient Light Immunity
0 - 100,000 Lux
Symbologies supported
1D:Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes

2D:Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code
Postal Codes: Australian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese
Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post

Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
Programming Method
Manual: Reads special bar codes
Automatic: Software commands through the RS-232 / USB interfaces
Datalogic Aladdin™: Windows configuration program
Remote Host Download (Lowers service costs and improves operations)
Driver available
JavaPOS, OPOS Utilities
Indicators/Controls
Scanner Indicators:
Good Read LED
"Green spot" on the code
Adjustable Tone & Volume beeper
Communication Type
Corded
Interfaces
USB: OEM USB, USB COM, USB HID Keyboard
RS232
Supply Voltage
5 VDC +/-5%
Power Consumption
Typical 175 mA, Max. 400 mA
Drop Specification
Withstands repeated drops from 1.2 m onto a concrete surface
Environmental Sealing
IP52
ESD Protection
+/- 16 kV air discharge
Operating Environment
0° ~ 40°C, Relative Humidity 0 - 95% none condensing
Storage Environment
-40° ~ 70°C, Relative Humidity 0 - 95% none condensing
EMC/Safety Standards
Complies to EU RoHS
CDRH Class II, EN 60825-1 Class 2, IEC 60825 Class 2
External Dimensions (WxDxH)
Scanner only : 64 x 74 x 95mm
Scanner with Stand: 73 x 121 x 107mm
Weight
Scanner only : 178g
Scanner with Stand: 295g
