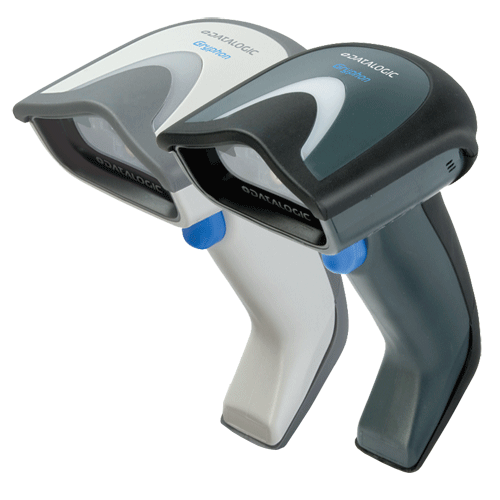

DATALOGIC GRYPHON™ I GD-4400 2D Imager Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

The Gryphon™ 4000 series represents the premium level of data collection devices from Datalogic Scanning for general purpose applications. Designed with people in mind, the Gryphon™ I GD4400 imager blends advanced 2D reading with motion sensing technology, producing a user-friendly device with outstanding performance.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
60 months
  • Handheld 2D Imager Scanner
  • Motionix™ motion-sensing technology for seamless reading mode transitions
  • Highly visible 4-Dot aimer with center cross for targeted scanning
  • Omnidirectional reading
  • Advanced motion tolerance optics
  • Image capture and document scanning capabilities
  • Reads 1D, 2D and postal codes plus stacked and composite codes
  • Multi-interface options: RS-232 / IBM 46XX / USB or RS-232 / USB / Keyboard Wedge / Wand
  • Datalogic’s patented ‘Green Spot’ for good-read feedback
NameSizeDownload
Datasheet566kb gd4400_datasheet.pdf
Quick Reference Guide1,665kb dlgd44xx_qrg.pdf
Product Reference Guide13,642kb dlgd44xx_gbt4400_prg.pdf
Datalogic Aladdin Configuration Utility43,917kb DL_SU-ALADDINv16006.zip

Products available to purchase

 SKUVendorName
DLGD4430BPBKIT-U DATALOGICGryphon I GD4430 2D Scanner with Perm Base USB Blk
AD-DL5VR06N DATALOGIC5.2V 650 mA Power Supply
CAB-DL363 DATALOGICCAB-363 RS232 Coiled DB25M
CAB-DL350 DATALOGICCable RS232 Straight Power P9 and RPE
CAB-DLG4SU DATALOGICCable USB A Enhanced Str Power Off Terminal
DLGD41AUTOSTD-B DATALOGICHandsfree Stand Auto Sensing B
DLGD41AUTOSTD-W DATALOGICHandsfree Stand Auto Sensing W
DLGD41BSTD-B DATALOGICHandsfree Stand Standard Blk
DLGD41BSTD-W DATALOGICHandsfree Stand standard Wh
CAB-DL321 DATALOGICPS2 KB straight cable for Heron Gryphon
DLGD41WHLD-B DATALOGICWall Desk Holder for GD41 Blk
DLGD41WHLD-W DATALOGICWall Desk Holder for GD41 Wh

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
GD432PGRYPHON™ D432 Plus 2D Area Imaging Scanner

Parts documents

Parts layout details

Specifications
Scan Engine
Area Imager
Light Source
Aiming: 650 nm VLD
Scan Pattern
752 x 480 Pixels
Scan Rate
Motion Tolerance
25 IPS
Image Capture
Graphic Formats: BMP, JPEG, TIFF
GreyScale: 256, 16, 2, JPEG, TIFF
Capture Area
N/A
Contrast Ratio
25% Minimum reflective difference
Resolution
Standard Range (SR):
1D Linear Max. 0.102mm / 4 mils
Datamatrix 0.178mm / 7 mils
PDF417 0.127mm / 5 mils

High Density (HD):
1D Linear Max. 0.077mm / 3 mils
Datamatrix 0.127mm / 5 mils
PDF417 0.102mm / 4 mils
Depth of field
Standard Range (SR):
Code 39: 5 mils - 4.0 to 19.0 cm
Data Matrix: 10 mils - 2.0 to 16.0 cm
Data Matrix: 15 mils - 0 to 23.6 cm
EAN-13: 13 mils - 1.5 to 40.0 cm
PDF417: 10 mils - 0.5 to 22.0 cm
QR Code: 10 mils - 3.0 to 12.5 cm

High Density (HD)
Code 39: 3 mils - 2.4 to 9.1 cm
Code 39: 5 mils - 0.8 to 11.3 cm
Data Matrix: 5 mils - 2.8 to 6.1 cm
EAN-13: 13 mils - 1.1 to 17.2 cm
PDF417: 4 mils - 1.8 to 6.8 cm
PDF417: 10 mils - 0 to 14.3 cm
QR Code: 6.7 mils - 2.1 to 4.2 cm
Performance may be impacted by Bar code quality and environmental conditions
Tilt Angle
180°
Pitch Angle
+/- 40°
Skew Angle
+/- 40°
Ambient Light Immunity
0 - 100,000 Lux
Symbologies supported
1D:Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes

2D:Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code
Postal Codes: Australian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese
Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post

Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
Programming Method
Manual: Reads special bar codes
Automatic: Software commands through the RS-232 / USB interfaces
Datalogic Aladdin™: Windows configuration program
Remote Host Download (Lowers service costs and improves operations)
Driver available
JavaPOS, OPOS Utilities
Indicators/Controls
Scanner Indicators:
Good Read LED
"Green spot" on the code
Adjustable tone beeper
Communication Type
Corded
Interfaces
GD4430: USB, RS232, Wedge & Wand Multi Interface
GD4410: RS232, IBM 46XX, USB Multi Interface
Supply Voltage
GD4430 4.2-5.25 VDC
GD4410 4.0-14.0 VDC
Power Consumption
GD4430: Operating typical <160mA @ 5V
GD4410: Operating typical <170mA @ 5V
Standby/Idle Typical 65 mA @ 5V
Drop Specification
Withstands repeated drops from 1.8 m onto a concrete surface
Environmental Sealing
IP52
ESD Protection
+/- 16 kV air discharge
Operating Environment
0° ~ 50°C, Relative Humidity 5 - 95% none condensing
Storage Environment
-20° ~ 70°C, Relative Humidity 5 - 95% none condensing
EMC/Safety Standards
Caution Laser Radiation - Do not stare into beam; IEC 60825 Class 2
External Dimensions (WxDxH)
Scanner: 71 x 100 x 181mm
Weight
195g
