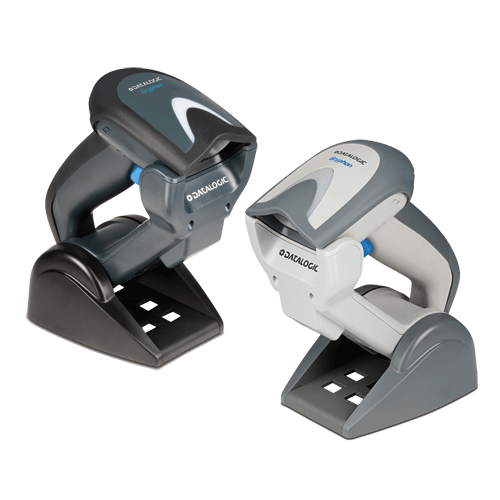

DATALOGIC GRYPHON™ I GBT4400 Bluetooth Area Imaging Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

General Purpose Handheld Area Imager Bar Code Reader with Bluetooth® Wireless Technology. The Gryphon I GBT4400 2D scanner blends advanced reading technology with the ability to detect the natural actions of the operator to produce user-friendly features and outstanding performance. The Gryphon GBT4400 2D reader is designed with Datalogic’s Motionix™ motion-sensing technology, which enables the scanner to intuitively switch into handheld mode when the device is picked up.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Cordless 2D Imaging Scanner
  • Bluetooth Wireless Technology with up to 30 m range
  • Omnidirectional reading
  • Advanced motion tolerance optics: 60 frames per second
  • Image Capture
  • Reads 1D, 2D and Postal codes plus stacked and composite codes like PDF417 and GS1 DataBar™
  • Multi-interface options: RS-232 / IBM 46XX / USB or RS-232 / USB / Keyboard Wedge / Wand
  • Datalogic’s patented ‘Green Spot’ for good-read feedback plus the 4-dot Aimer
  • Point-to-point and multi-point transmission
  • Two-position cradle with Scan-While-Charging capability
  • Batch Mode capability: +1200 codes stored in memory
  • User-replaceable, long lasting lithium-ion battery
  • Drop resistance to 1.8 m / 5.9 ft
  • USB Certified Kits Available
NameSizeDownload
Brochure373kb dl_gbt4400_brochure.pdf
Quick Reference Guide2,153kb dlgbt4400_qrg.pdf
Product Reference Guide13,642kb dlgd44xx_gbt4400_prg.pdf
Datalogic Aladdin Configuration Utility43,917kb DL_SU-ALADDINv16006.zip

Products available to purchase

 SKUVendorName
DLGBT4430BKIT-U DATALOGICGryphon I GBT4400 Black Cordless scanner Kit USB
DLGBT4400B DATALOGICGryphon I GBT4400 Bluetooth Cordless Scanner Only
DLGBT4430HCKIT-U DATALOGICGryphon I GBT4400 Healthcare Cordless Scan Kit USB
AD-DL12VR DATALOGICPower supply 12v DC for Datalogic with Power Cable
CAB-DL365 DATALOGICPS2 12" Coile Cable for Gryph

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
Area Imager
Light Source
Aiming: 630 - 670 VLD (Visible Laser Diode)
Scan Pattern
752 x 480 Pixels
Scan Rate
Motion Tolerance
25 IPS
Image Capture
Graphic Formats: BMP, JPEG, TIFF
GreyScale: 256, 16, 2, JPEG, TIFF
Capture Area
N/A
Contrast Ratio
25% Minimum reflective difference
Resolution
Standard Range (SR):
1D Linear Max. 0.102mm / 4 mils
Datamatrix 0.178mm / 7 mils
PDF417 0.127mm / 5 mils

High Density (HD):
1D Linear Max. 0.077mm / 3 mils
Datamatrix 0.127mm / 5 mils
PDF417 0.102mm / 4 mils
Depth of field
Standard Range (SR):
Code 39: 5 mils - 4.0 to 19.0 cm
Data Matrix: 10 mils - 2.0 to 16.0 cm
Data Matrix: 15 mils - 0 to 23.6 cm
EAN-13: 13 mils - 1.5 to 40.0 cm
PDF417: 10 mils - 0.5 to 22.0 cm
QR Code: 10 mils - 3.0 to 12.5 cm

High Density (HD)
Code 39: 3 mils - 2.4 to 9.1 cm
Code 39: 5 mils - 0.8 to 11.3 cm
Data Matrix: 5 mils - 2.8 to 6.1 cm
EAN-13: 13 mils - 1.1 to 17.2 cm
PDF417: 4 mils - 1.8 to 6.8 cm
PDF417: 10 mils - 0 to 14.3 cm
QR Code: 6.7 mils - 2.1 to 4.2 cm
Performance may be impacted by Bar code quality and environmental conditions
Tilt Angle
360°
Pitch Angle
+/- 40°
Skew Angle
+/- 40°
Ambient Light Immunity
0 - 100,000 Lux
Symbologies supported
1D:Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes

2D:Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code
Postal Codes: Australian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese
Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post

Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
Programming Method
Manual: Reads special bar codes
Automatic: Software commands through the RS-232 / USB interfaces
Datalogic Aladdin™: Windows configuration program
Remote Host Download (Lowers service costs and improves operations - BC4010)
Driver available
JavaPOS, OPOS Utilities
Indicators/Controls
Scanner Indicators:
Good Read LED
"Green spot" on the code
Adjustable tone beeper

Cradle Indicators:
Battery charging (Red)
Charge completed (Green)
Power/Data (Yellow)
Communication Type
Bluetooth Cordless
Communication Technology
Bluetooth® 2.0 Certified Class 2
Radio Frequency 2.4 GHz
Radio Range (open air) 30m
Profile: SPP
PICONET: Max 7 reader per Receiver (when using external Piconet Dongle)
Security: Data Encryption, Scanner Authentication
Interfaces
BC4010 Cradle: RS-232/IBM46xx/USB Multi-Interface
BC4030 Cradle: RS-232/USB/KBW/Wand Emulation Multi-Interface
External Dimensions (WxDxH)
Scanner: 71 x 100 x 181mm
Cradle: 99 x 56 x 186 mm
Supply Voltage
4.5 ~ 14.0 VDC
Weight
Reader 245g including battery
Cradle: 246g
Power Consumption
Charging : Typical < 8W
Operating : Typical 2.5W @5VDC
with external Power supply
Standby/Idle: Typical 2.5mA @ 5VDC
Drop Specification
Withstands repeated drops from 1.8 m onto a concrete surface
Environmental Sealing
IP52
ESD Protection
+/- 16 kV air discharge
Operating Environment
0° ~ 50°C, Relative Humidity up tp 95% none condensing
Storage Environment
-20° ~ 70°C, Relative Humidity up tp 95% none condensing
EMC/Safety Standards
UL 60950, CSA C22.2 No. 60950, IEC 60950
LED: IEC Class 1
