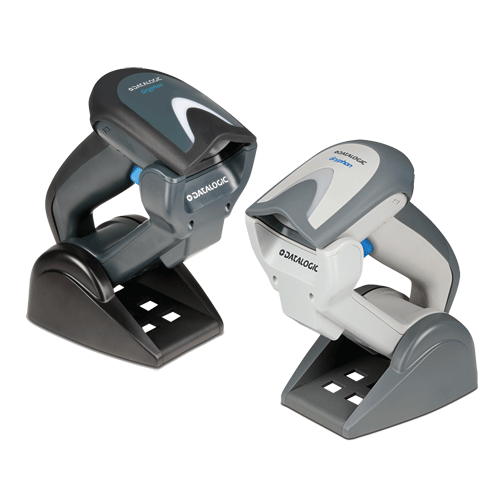

DATALOGIC GRYPHON™ I GBT4100 Bluetooth Linear Imaging Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

Featuring Bluetooth® Wireless Technology, the Gryphon GBT4100 readers eliminate the need for cables that limit operator movement and create safety concerns in the workplace. The reader can also transmit data to the host through its base station as well as to any commercial or embedded Bluetooth® v2.0 compliant device. Datalogic’s unique 2-position cradle provides multiple features for the user. When in the ‘up’ position, this imager can be used as a hands-free or presentation style reader. With the Scan-While-Charging feature, there is never any concern about depleted or dead batteries, ensuring constant up-time for increased productivity.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Cordless Handheld Linear Imager Scanner
  • Disinfectant-Ready enclosures treated with SANITIZED™ anti-microbial additives
  • Fastest speed-to-read: 325 scans/second
  • Bluetooth Wireless Technology with up to 30 m range
  • Point-to-point and multi-point transmission
  • Two-position cradle with Scan-While-Charging capability
  • Batch Mode capability (>1200 codes stored in memory)
  • Datalogic 'Green Spot' for good read feedback
  • User-replaceable and long lasting Lithium-Ion battery
  • Drop resistance to 1.8 m
  • Available in Black or White (White only on special order)
NameSizeDownload
Brochure357kb dl_gbt4100_brochure.pdf
Quick Reference Guide1,857kb dlgbt4100_qrg.pdf
Product Reference Guide13,403kb dlgd4300_gbt4100_gm4100_prg.pdf
Datalogic Aladdin Configuration Utility43,917kb DL_SU-ALADDINv16006.zip

Products available to purchase

 SKUVendorName
DLGBT4130BKIT-U DATALOGICGryphon BT4130 USB kit Black
DLGBT4130WKIT-U DATALOGICGryphon BT4130 USB kit White
AD-DL12VR DATALOGICPower supply 12v DC for Datalogic with Power Cable
CAB-DL365 DATALOGICPS2 12" Coile Cable for Gryph

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
CCD Solid State
Light Source
Dual LED Array 630-670nm
Scan Pattern
Single Line
Scan Rate
Up to 325 Reads/sec
Contrast Ratio
15% minimum reflective difference
Resolution
Minimum 3 mil (Code 39, PCS 0.9)
Depth of field
6.0 to 18 cm on 5 mils barcode
3.5 to 30 cm on 7.5 mils barcode
2.0 to 45 cm on 10 mils barcode
3.0 to 60 cm on 13 mils barcode
3.0 to 80 cm on 20 mils barcode
Tilt Angle
+/- 35 deg.
Pitch Angle
+/- 65 deg.
Skew Angle
+/- 65 deg.
Ambient Light Immunity
0 ~ 100000 Lux
Symbologies supported
Linear codes: Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes
Stacked Codes: GS1 DataBar Expanded Stacked, GS1 DataBar Stacked and GS1 DataBar® Stacked Omni-directional
Programming Method
Manual: Reading special bar codes
Automatic: (with RS-232) S/W commands through the serial port
ALADDIN™: Windows configuration program
Driver available
JavaPOS, OPOS Utilities
Indicators/Controls
Scanner Indicators:
Good Read LED
"Green spot" on the code
Adjustable tone beeper

Cradle Indicators:
Battery charging (Red)
Charge completed (Green)
Power/Data (Yellow)
Operating Modes
Trigger, Auto-trigger, Scan while Charging
Communication Type
Bluetooth Cordless
Communication Technology
Bluetooth® 2.0 Certified Class 2
Radio Frequency 2.4 GHz
Radio Range (open air) 30m
Interfaces
USB, RS232, Wedge & Wand Multi Interface (BC4030HC)
Supply Voltage
4.5-14.0 VDC
Battery: 2100mAH Li-ion Rechargeable
Charge Time: 4-5 Hours for full charge
33000 Scans/full charge
Power Consumption
Charging : Typical < 8W
Operating : Typical 2.5W @5VDC
with external Power supply
Standby/Idle: Typical 2.5mA @ 5VDC
Drop Specification
Withstands repeated drops at 1.8 m to concrete
Environmental Sealing
IP52
ESD Protection
Functional after 16kV Air discharge
Operating Environment
0 to 50 °C
RH 5% ~ 90% non condensing
Storage Environment
-20 ~ 70 °C
RH 5% ~ 90% non condensing
EMC/Safety Standards
UL 60950, CSA C22.2 No. 60950, IEC 60950
LED: IEC Class 1
External Dimensions (WxDxH)
Scanner: 71 x 100 x 181mm
Cradle: 99 x 56 x 186 mm
Weight
Reader 169g including battery
Cradle: 246g
