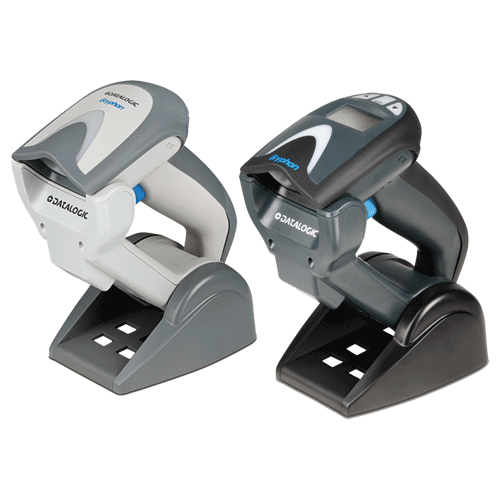

DATALOGIC GRYPHON™ GM-4130 Cordless Linear Imager Scanner

(Product may vary from image. Rely only on description for purchasing decisions.)

The Gryphon™ I GM-4100 cordless linear imaging readers offer the richest feature set among general purpose product offerings. Extremely versatile and durable, the Gryphon GM4100 cordless linear imaging readers are the ultimate solution for applications in retail and light industrial environments where mobility is necessary for improved productivity.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Cordless Handheld Linear Imager Scanner
  • Fastest speed-to-read: 325 reads/second
  • 433 MHz Radio frequencies
  • Radio Range (open air) up to 30.0 m for 433 MHz
  • Optional display with 3-Key keypad
  • Point-to-point and multi-point transmission
  • Datalogic's patented 2-position cradle with Scan-While-Charging capability
  • Batch Mode capability (>1200 codes stored in memory)
  • Drop resistance to 1.8 m / 5.9 ft
  • Datalogic’s patented ‘Green Spot’ for good-read feedback
  • Long lasting user-replaceable Lithium-Ion battery
NameSizeDownload
Datasheet399kb dl_gm4100_datasheet.pdf
Product Reference Guide13,403kb dlgd4300_gbt4100_gm4100_prg.pdf
Quick Reference Guide1,857kb dlgm4100_qrg.pdf
Base Station Quick Reference Guide886kb dlchr-gm40_qrg.pdf
Datalogic Aladdin Configuration Utility43,917kb DL_SU-ALADDINv16006.zip

Products available to purchase

 SKUVendorName
DLGM4110BKIT DATALOGICGryphon I M4100 BC4010 (IBM) Black
DLGM4130BKIT-R DATALOGICGryphon I M4100 BC4030 Cab
DLGM4130BKIT-U DATALOGICGryphon I M4100 BC4030 Cab
DLGM4100B DATALOGICGryphon I M4100 Black
DLGM4130DBKIT-U DATALOGICGryphon I M4100 with Disp BC Cab
DLGM4100DB DATALOGICGryphon I M4100 with Display bl
DLBC4010B DATALOGICBase Charger for GM4100 IBM Black
DLBC4030B DATALOGICBase Charger for GM4100 Std Black
CAB-DL325 DATALOGICCab for IBM VDT 3151 34xx star
CAB-DL363 DATALOGICCAB-363 RS232 Coiled DB25M
CAB-DL350 DATALOGICCable RS232 Straight Power P9 and RPE
AD-DL12VR DATALOGICPower supply 12v DC for Datalogic with Power Cable
CAB-DL365 DATALOGICPS2 12" Coile Cable for Gryph
CAB-DL321 DATALOGICPS2 KB straight cable for Heron Gryphon
DLGM41RBATT DATALOGICRemovable Battery Pack for GM41xx Series
CAB-DL370 DATALOGICRS485 IBM UDT 46xx cable

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Scan Engine
CCD Solid State
Light Source
Dual LED Array 630-670nm
Scan Pattern
Single Line
Scan Rate
Up to 325 Reads/sec
Contrast Ratio
15% minimum reflective difference
Resolution
Minimum 3 mil (Code 39, PCS 0.9)
Depth of field
6.0 to 18 cm on 5 mils barcode
3.5 to 30 cm on 7.5 mils barcode
2.0 to 45 cm on 10 mils barcode
3.0 to 60 cm on 13 mils barcode
3.0 to 80 cm on 20 mils barcode
Tilt Angle
+/- 35 deg.
Pitch Angle
+/- 65 deg.
Skew Angle
+/- 65 deg.
Ambient Light Immunity
0 ~ 100000 Lux
Symbologies supported
Linear codes: Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes
Stacked Codes: GS1 DataBar Expanded Stacked, GS1 DataBar Stacked and GS1 DataBar® Stacked Omni-directional
Programming Method
Manual: Reading special bar codes
Automatic: (with RS-232) S/W commands through the serial port
ALADDIN™: Windows configuration program
Driver available
JavaPOS, OPOS Utilities
Indicators/Controls
Scanner Indicators:
Good Read LED
"Green spot" on the code
Adjustable tone beeper

Cradle Indicators:
Battery charging (Red)
Charge completed (Green)
Power/Data (Yellow)
Operating Modes
Trigger, Auto-trigger, Scan while Charging
Communication Type
Datalogic Star Cordless System™
Communication Technology
Radio Frequency: 433.92 MHz
Effective Radiated Power: <10 mW
Radio Range : 30m open air
Max 16 readers per radio receiver
Coexisting Systems: max. 2048 readers in the same area
Point to point communications
Interfaces
BC4030: USB, RS232, Wedge & Wand Multi Interface
BC4010: RS-232, IBM 46XX, USB Multi-Interface
Supply Voltage
4.75-14.0 VDC
Battery: 2100mAH Li-ion Rechargeable
Charge Time: 4-5 Hours for full charge
50,000 Scans/full charge
Power Consumption
Charging : Typical < 8W
Operating : Typical 2.5W @5VDC
with external Power supply
Standby/Idle: Typical 2.5mA @ 5VDC
Drop Specification
Withstands repeated drops at 1.8 m to concrete
Environmental Sealing
IP42
ESD Protection
Functional after 16kV Air discharge
Operating Environment
0 to 50 °C
RH 5% ~ 90% non condensing
Storage Environment
-20 ~ 70 °C
RH 5% ~ 90% non condensing
EMC/Safety Standards
UL 60950, CSA C22.2 No. 60950, IEC 60950
LED: IEC 60825-1 Class 1
External Dimensions (WxDxH)
Scanner: 71 x 100 x 181mm
Cradle: 99 x 56 x 186 mm
Weight
Reader 169g including battery
Cradle: 246g
