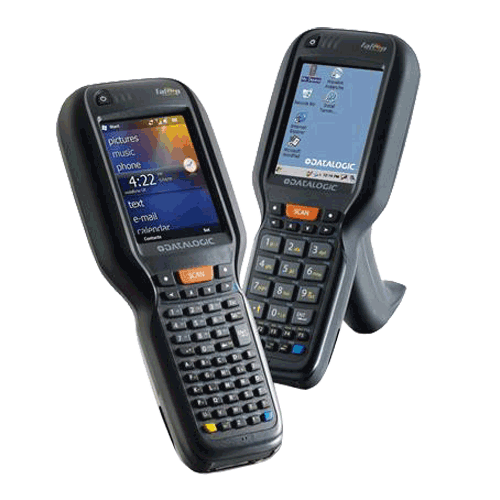

DATALOGIC Falcon™ X3 Portable Data Terminal Series ***Obsolete***

(Product may vary from image. Rely only on description for purchasing decisions.)

The Falcon™ X3 pocket-sized Windows powered mobile computer is an extremely compact, lightweight, versatile and robust device, combining integrated bar code reading and wireless communication capabilities

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Sharp and Bright 3.5” display Colour display with touch screen
  • Ergonomic, compact and robust
  • Windows CE 6.0 or Windows Mobile 6.5 Operating System
  • Integrated Laser Scanner or 2D Imager Scanner with Green Spot or Auto Ranging Laser
  • Ruggedized (IP64 & 1.8m Drop)
  • User Accessible MicroSD memory slot
  • Bluetooth® wireless technology
  • 802.11b/g Wireless LAN
  • Optional 3 MPixel autofocus camera
NameSizeDownload
Quick Setup Guide286kb DLFalconX3Plus_qsg.pdf
User Manual Falcon X3 Plus PDT with CE5,616kb DLFalconX3Plus_ume_ce.pdf
User Manual Falcon X3 Plus PDT with WM6,238kb DLFalconX3Plus_ume_wm.pdf

Products available to purchase

 SKUVendorName
DLX3G-NL-BG00C DATALOGICFalcon X3 Gun BT WAN Num HP Laser CE6
DLX3-QBCHG DATALOGIC4 Port Battery Charger with power supply (no Cable)
DLX3-QCHG DATALOGICFalcon X3 4 Port Charger for Terminal & Batteries
DLX3-QBASE-E DATALOGICFalcon X3 Quad Comm Charge Ethernet Dock (PS Inc.)
DLX3-DCBASE DATALOGICFalcon X3 Single Comm Charge Dock
DLX3-SCASE DATALOGICFalcon X3 Softcase with Quick release Belt Clip
DLX3-STBATT DATALOGICFalcon X3 Standard Battery
AD-DL12VR40N2.1 DATALOGICPower Supply 12V 4.1A with power cord
DLX3-TRHANDLE DATALOGICTrigger Handle with Screws for Falcon X3 & X3+
DLZSC2FX331 DATALOGICFalcon X3 Ease of Care Comp Cover 2 Days 3 yrs

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Processor
XScale PXA310 @ 806MHz with Cortex-M3, 32 bit @ 72 MHz co-Processor
Operating Platform
Microsoft Windows CE 6.0 with Microsoft WordPad and Internet Explorer 6.0
or
Microsoft® Windows Embedded Handheld 6.5 with Mobile Tools: Outlook, Word Mobile, Excel Mobile, PowerPoint Mobile, One Note Mobile and Internet Explorer Mobile 6.0
Development Environment
Datalogic Windows SDK™
MCL-Collection™
Wavelink Studio™
Java Virtual Machine
Software Utilities
Applications: Pal™Application Library prelicensed
Terminal Emulations: Wavelink Terminal emulation pre-licensed, Wavelink Industrial Browser
Security: Wavelink SecurePlus, Wavelink Certificate Manager
Voice Picking: Vo-CE™, Wavelink Speakeasy™
Memory
System RAM: 256MB, System Flash: 1GB
Memory Expansion
Micro-SD card slot: Compatible with Micro SD-HC cards
Scan Options
HIGH PERFORMANCE LASER (HPL) Depth of Field: 1 to 83 cm / 1 to 32 in, depending on bar code and density; Scanning Rate: 104 +/- 12 scans/sec.; Good Read Feedback: Datalogic’s patented ‘Green Spot‘ technology

LONG-RANGE LASER (XLR) Depth of Field: Non-reflective labels from 9 to 490 cm / 0.3 to 16.0 ft, depending on bar code density; Reflective labels: up to 1509 cm / 49.5 ft. Near range determined by degree of reflectivity and width of the bar code. All ranges dependent on bar code size and density; Scanning Rate: 31-41 scans/sec. Minimum Resolution: 0.20 mm / 7.5 mils

STANDARD RANGE IMAGER (2D) Depth of Field: 2 to 60 cm / 1 to 24 in, depending on bar code size and density; Minimum Resolution: Linear codes: 5 mils; 2D codes: 6.7 mils; Good Read Feedback: Datalogic’s patented ‘Green Spot’ technology

EXTRA LONG RANGE IMAGER (2D XLR) Depth of Field: 17 to 952 cm / 0.6 to 31.3 ft, depending on bar code size and density; Minimum Resolution: Linear codes: 5 mils; 2D codes: 1
Symbologies supported
Depending on Scan enging used:
1D / linear codes; Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D Codes; Aztec Code, Data Matrix, MaxiCode, QR Code, UPU FICS, USPS Intelligent Mail
Postal codes; Australian Post, Japan Post, KIX Code, PLANET, POSTNET, Royal Mail Code (RM4SCC)
Stacked codes; Micro-PDF417, PDF417
Keyboards
Polycarbonate hard cap keyboards with backlight; 29-key numeric or 52-key alphanumeric with discrete navigation
Audio
Integrated microphone, high-volume speaker
Display
Reflective TFT daylight readable color display, 320 x 240 pixels (CE only) or 640 x 480 (WEHH only), 8.9 cm / 3.5 in diagonal, 65K colors, backlight, touch screen
Camera
Product Depended: 3.1 Megapixel color with auto-focus and LED flash (WEHH only); Image Formats: BMP, JPEG
I/O Ports
Main connector with USB 1.1 Host, USB 1.1 Client, RS-232 up to 115.2 Kbps
Micro-USB port for power only, no data communication interface
Ethernet: via single dock (external module) or multiple cradle
Radio Options
(LAN) Laird/Summit IEEE 802.11 a/b/g/n Frequency range: Country dependent, typically 2.4 GHz and 5.2 GHz; Cisco Compatible CCX v4 Security
(PAN) Bluetooth® Wireless Technology IEEE 802.15 Class 2.1 with EDR
Battery
Removable battery pack with rechargeable Li-ion batteries; 3.7 V 5200 mAh (19.2 Watt hours)
Battery Life
N/A
Drop Specification
Withstands drops from 1.8 m / 6.0 ft onto concrete and 1500 random drops from 1.0 m / 3.3 ft according to IEC68-2-32 (Method 2)
Environmental Sealing
IP65
ESD Protection
N/A
Operating Environment
Operating: -20 to 50 ºC /-4 to 122 ºF
Storage Environment
Storage: -30 to 70 ºC / -22 to 158 ºF
EMC/Safety Standards
The product meets necessary safety and regulatory approvals for its intended use. The Users Manual for this product can be referred to for a complete list of certifications.
ENVIRONMENTAL COMPLIANCE: Complies to EU RoHS
LASER CLASSIFICATION VLD: Class 2 IEC/EN60825-10. Compliant with 21 CFR 1040.10 except for deviations pursuant to laser notice Number 50, dated June 24, 2007
LED CLASSIFICATION: Exempt Risk Group IEC/EN62471
External Dimensions (WxDxH)
Handheld: 22.5 x 8.8 x 5.5 cm / 8.9 x 3.5 x 2.2 in; 6.4 x 4.0 cm / 2.5 x 1.6 in at keyboard
Pistol grip: 22.5 x 8.8 x 16.8 cm / 8.9 x 3.5 x 6.6 in
Weight
Handheld: 608.0 g / 21.4 oz
Pistol grip: 674.0 g / 23.8 oz
