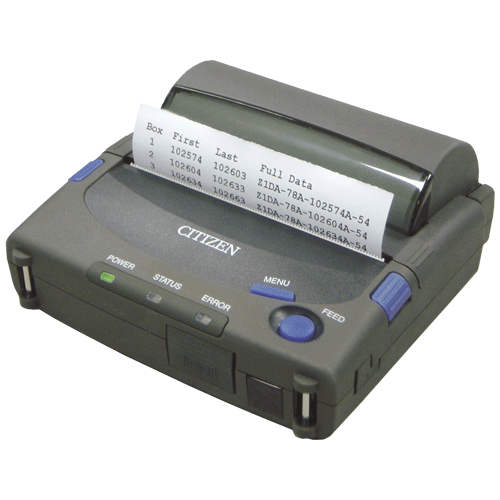

CITIZEN PD-24 Portable Thermal Printer

(Product may vary from image. Rely only on description for purchasing decisions.)

The Citizen PD-24 is a thermal printer that features a printing speed of 50 mm/second and a resolution of 8 dots/mm. (203 dpi). It has a wide roll capacity up to 112mm with a 50-mm diameter.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Clamshell Design
  • 112mm Paper width
  • Bluetooth, IRDA, RS232 & USB interface
  • Small footprint and light weight
  • Li-ion rechargeable Battery
  • Low battery monitoring
  • Internal Charging Circuit
  • Auto power off function
NameSizeDownload
Brochure236kb pd24_brochure.pdf
Windows Driver294kb CIT_PrinterDriverPD24.zip

Products available to purchase

 SKUVendorName
PD24BT CITIZENPD-24 112mm Thermal Portable Printer
AD-PD24 CITIZENPlug Pack for PD24
CAB-PD24R CITIZENRS232 Cable for PD24 Printer
CAB-PD24U CITIZENUSB Cable for the PD24

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Line Thermal Dot Printing
Printing Width
104mm
Dot Pitch
203 dpi
Printing Speed (Max.)
Up to 50 mm/Sec
Number of Columns
10CPI: 46, 12CPI: 55, 15CPI: 69, 17CPI: 79, 20CPI: 92
Character Size
10CPI: 18 X 24, 12CPI: 15 X 24, 15CPI: 12 X 24, 17CPI: 10 X 24, 20CPI: 9 X 24
Character Table/Code Pages
Alphanumeric: 95
Expanded Graphics 128x33 page
International Character: 32
Bar-code Type
UPC/A/E, JAN (EAN) 13/8 COLUMNS, ITF, CODE 39, CODA128, CODEBAR, CODE 93, QR CODE, PDF417
Line Spacing
Paper feed method
Friction
Paper Type
Thermal Paper Roll
Paper Width
112mm
Paper Roll Diameter
Max Ø 50 mm
Paper Thickness
35-65um
Paper Supply Method
Easy Paper Loading, Drop in and Print
Auto Cutter
N/A
Indicators/Controls
Power, Status & error LED
Power, Paper feed & Menu Button
VuePrint Menu System
Emulation
ESC/P, Citizen original command, ESC/POS (Supports only barcode commands)
Memory
Buffer size 64K bytes
Sensors
Paper End Sensor, Black mark, Low battery, Battery/Head/Motor temp, Cover open.
Interfaces
IrDA 1.2, Bluetooth ver 1.1, Serial (RS232C compliant), USB
Driver available
Windows Mobile, Win CE 4.2/5.0
Software Utilities
NA
Battery
Rechargeable Li-ion 7.2V 1800 mAh
Print Capacity 25,000 lines (at ASCII Pattern, 0 density /w fully charged battery)
MSR
NA
External Dimensions (WxDxH)
147 x 140 x 63 mm
Weight
Including Battery Approx. 540 g
Typical weight with Paper roll 740 g
Operating Environment
5 - 40°C
30-90% RH None condensing
Storage Environment
-25 -60°C
30-90% RH None condensing
Environmental Sealing
NA
Mechanical Shock
NA
Reliability
Print Head Life: 30 Mill pulses (at 12.5% Coverage, density 0)
EMC/Safety Standards
UL60950 (3RD), CAN/CSA-C22.2 no. 60950 (3rd), FCC Part 15 subpart B (class B) EN60950-1/55022 (class b)/55024/61000-3-2/61000-3-3
